44 C199 Manual

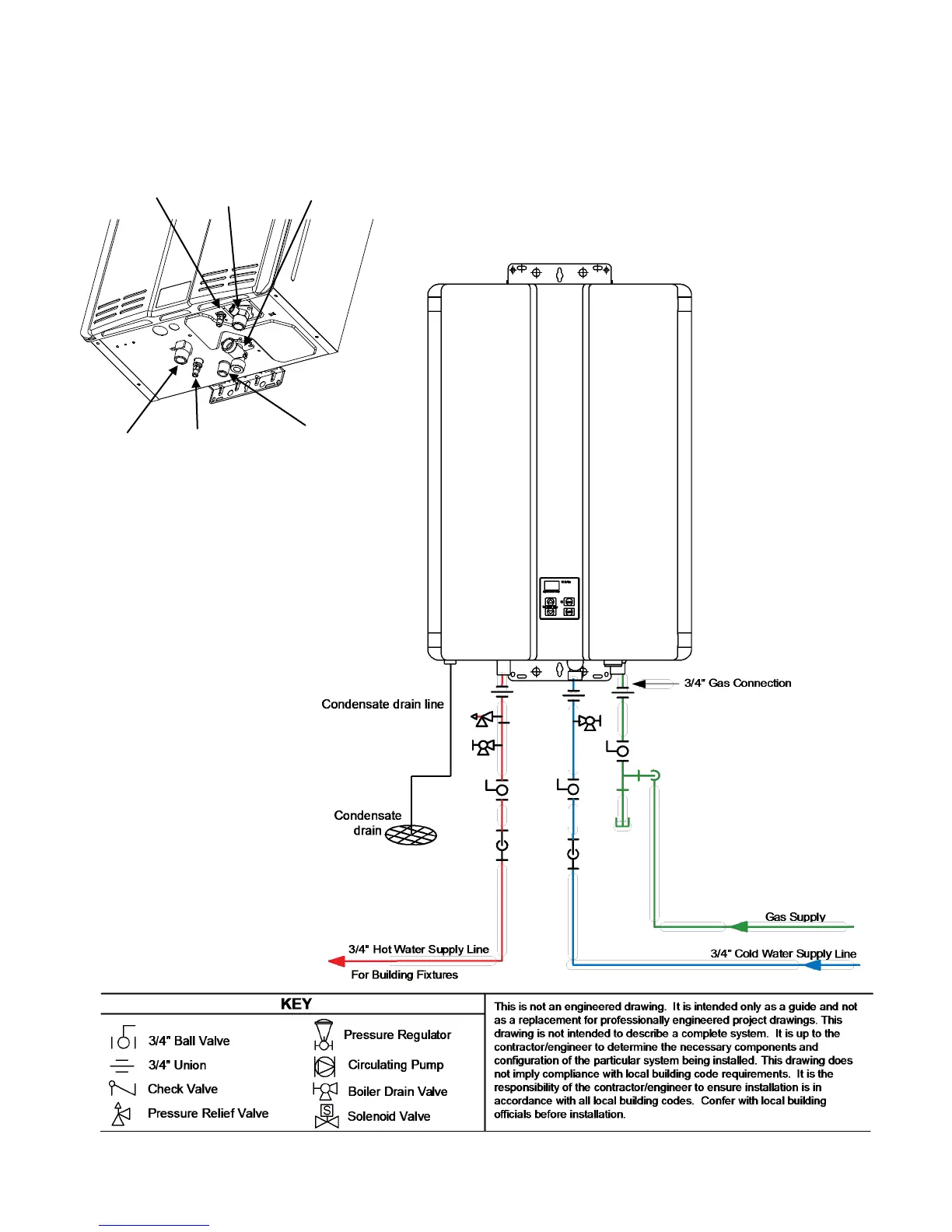

Piping Diagram for Basic Installaon
Refer to the Condensate
secon in the venng
instrucons
Water
drain plug
Condensate
trap drain plug
Condensate
drain line
Gas
connecon
Cold water
inlet
Hot water
outlet
The condensate drain pipe (along its enre
length) must be at least the same diameter
as the drain line, (1/2 inch NPT).
