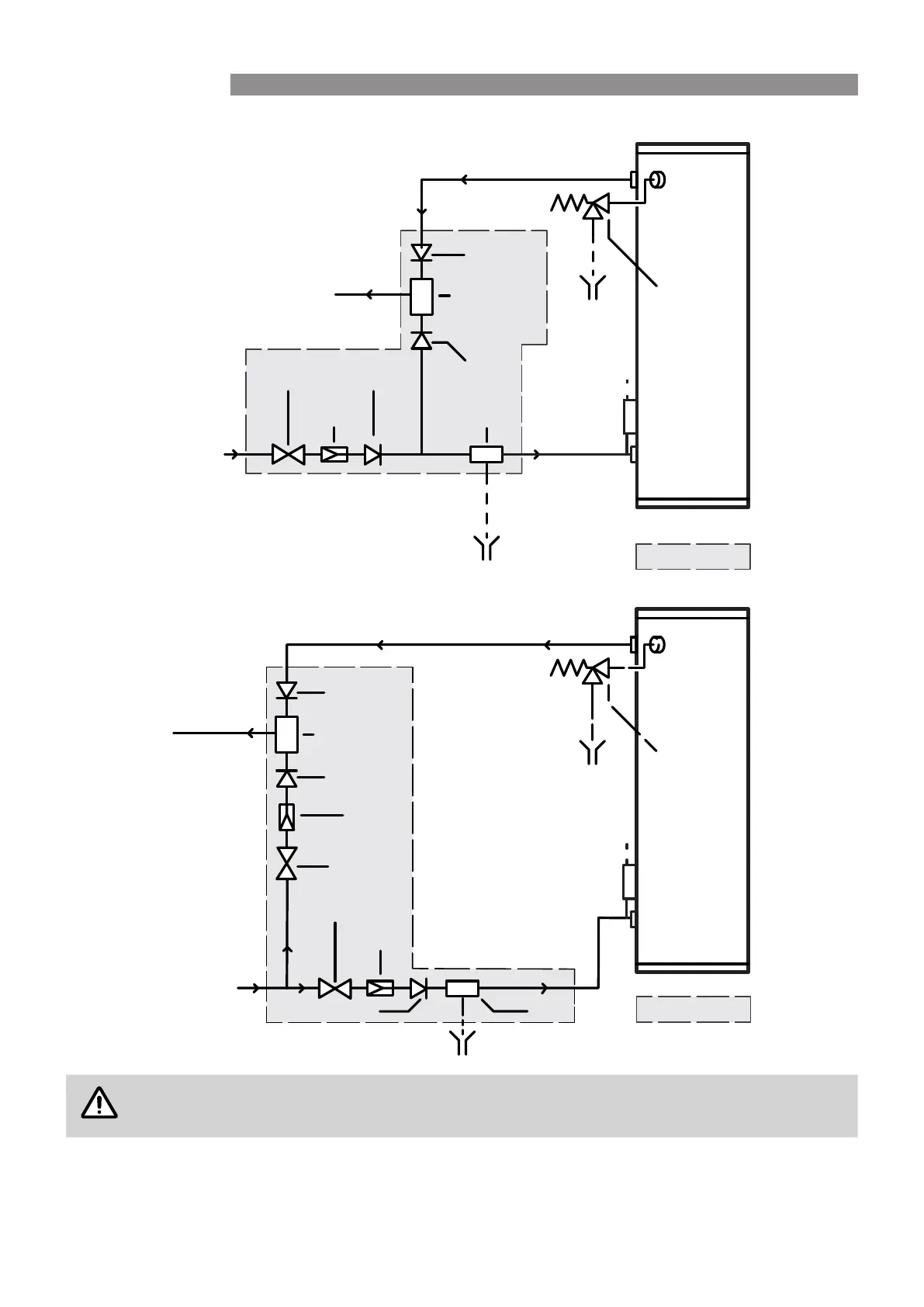

Typical Installation Option 1
TEMPERED
SUPPLY Temperature
Limiting Device
(TLD)
COLD
SUPPLY
Non-return
Valve
Non-return
Valve
*ECV
TO DRAIN
*PLV
Isolating
Valve
Non-return
Valve
SOLAR
TANK
*PTR VALVE
(Supplied)
TO DRAIN
(Not Supplied)
TO
COLLECTORS
Typical Installation Option 2
Non-return
Valve
*PLV
Isolating
Valve
Isolating
Valve
*PLV
*ECV
Non-return Valve
COLD
SUPPLY
Temperature
Limiting Device
(TLD)
Non-return
Valve
TO DRAIN
TEMPERED
SUPPLY
SOLAR
TANK
*PTR VALVE
(Supplied)
TO DRAIN
TO
COLLECTORS
(Not Supplied)
WARNING
Valves with pressure ratings other than specied are unsuitable and MUST NOT be used.
*Where required. For ratings see the table on page 12.
It may be a requirement that the hot and cold water supply pressures to a Temperature Limiting Device (TLD) are
equal. If this is the case, a PLV with the same pressure rating as the PLV for the hot water is required for the TLD
as shown�
