Rinnai 13 Split Solar OIM

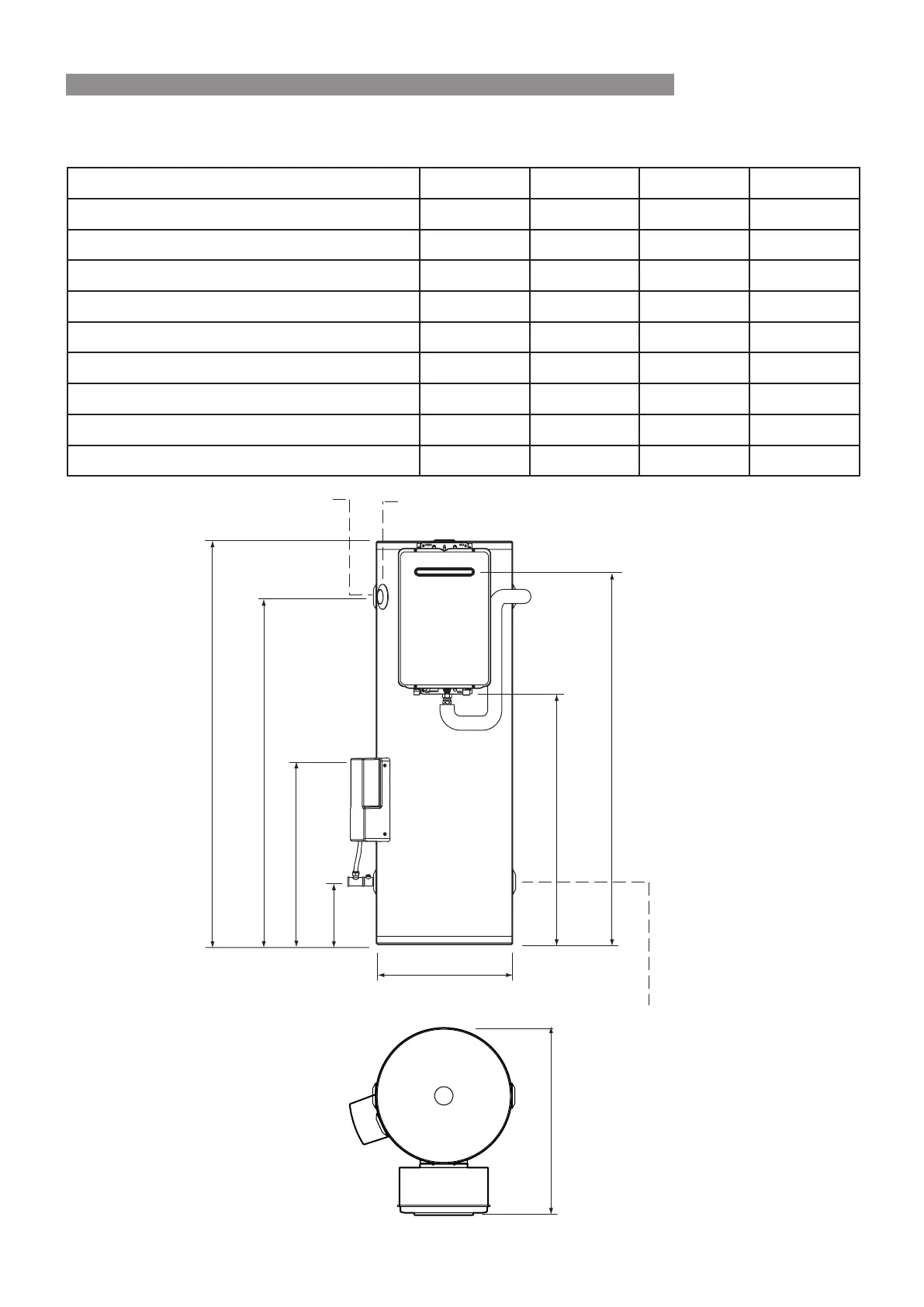

STORAGE CYLINDERS
Glass Lined Gas Boosted Cylinders
SG175 SG215 SG270SL SG320SL
Cylinder height 1530 1825 1475 1695
Gas booster ue outlet 1400 1695 1345 1565
PTR / solar return 1310 1605 1215 1430
Gas supply and hot water out 940 1235 885 1105
Flow line to collectors 665 665 540 540
Cold water inlet 225 225 90 90
Cylinder diameter 515 515 625 625
System depth 710 710 820 820
Weight empty (kg) 66 88 91 107
TEMPERATURE SENSOR
DRY WELL
P&TR / SOLAR RETURN
GAS SUPPLY AND
HOT WATER OUTLET
GAS BOOSTER FLUE OUTLET
COLD
WATER
INLET
CYLINDER HEIGHT
PTR VALVE
SOLAR
RETURN
FLOW LINE TO COLLECTORS
SYSTEM DEPTH
CYLINDER DIAMETER
SPECIFICATIONS
