Glass Lined Electric Boosted Cylinders
SE200AB
SE250AB&
SE250AM
SE315AB&
SE315AM
Cylinder height 1580 1445 1770
PTR / hot water outlet 1380 1250 1540
Flow line to collectors 635 660 660
Solar return 550 515 620
Cold water inlet 185 210 210
Cylinder diameter 535 605 605
System depth 570 640 640
Weight empty (kg) 66 73 92

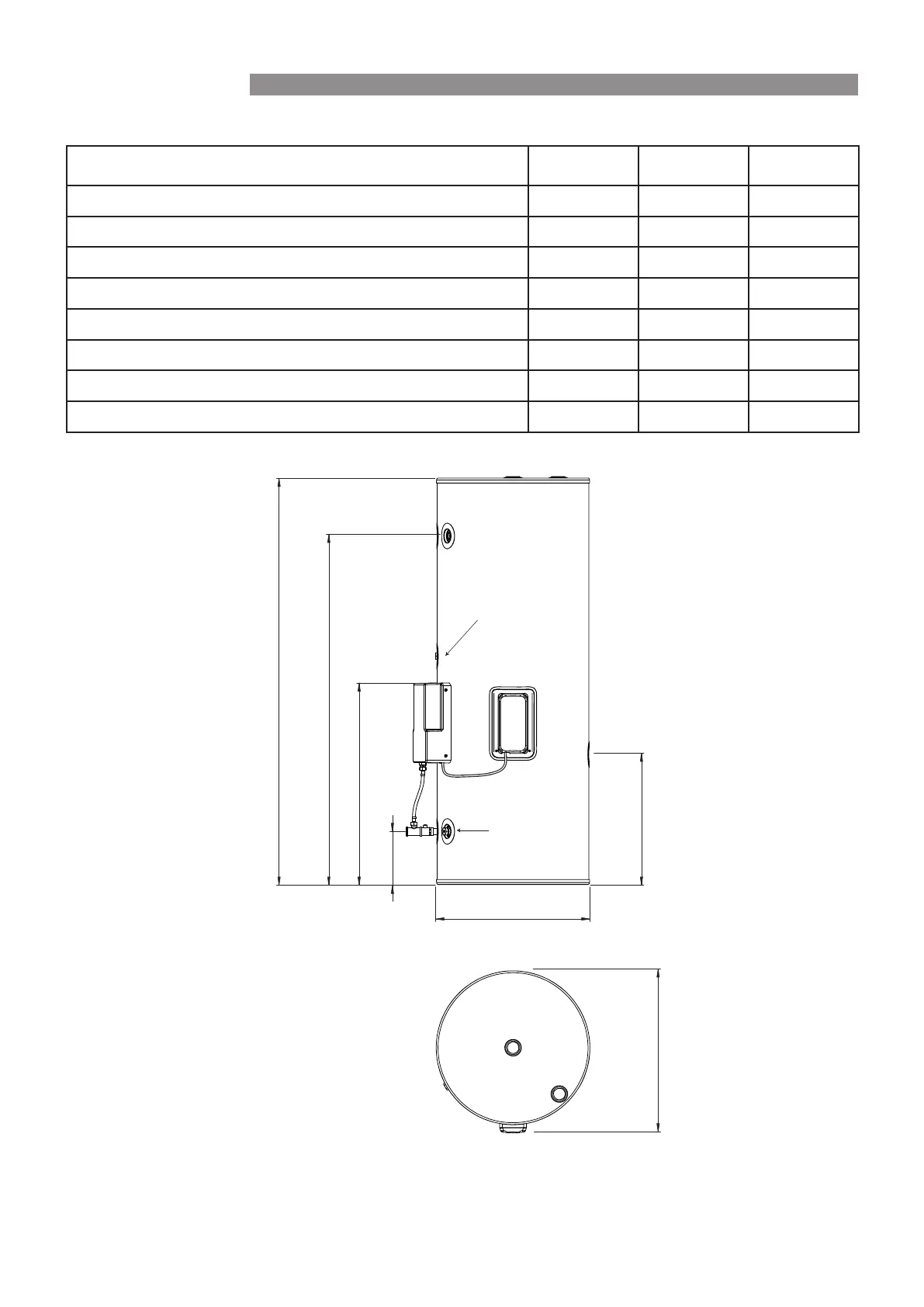

HOT WATER OUTLET / PTR HEIGHT
CYLINDER DIAMETER
FLOW LINE TO COLLECTORS
CYLINDER HEIGHT
COLD WATER INLET
SOLAR RETURN
MID
SENSOR
DRYWELL
COLD
SENSOR
DRYWELL
SYSTEM DEPTH
SPECIFICATIONS

Rinnai S20 Specifications

General

Brand	Rinnai
Model	S20
Category	Water System
Language	English
