Rinnai S20 User Manual

Rinnai 5 Split Solar OIM
OPERATION PRINCIPLE
Split solar hot water systems are designed to have the solar collectors (either at plate or evacuated tubes) on the
roof and the storage cylinder installed at ground or oor level.
The system comprises a hot water storage cylinder, solar collectors, pump, controller and temperature sensors,
and either gas or electric boosting�
Water is pumped from the storage tank to the solar collectors when there is enough heat available from the sun�
The solar controller utilises information from the temperature sensors to manage this process�
Supplementary heating is utilised if insu󰀩cient heat is available from the sun (such as during cloudy or rainy
weather or during winter months) either via an electric heating element(s) located inside the storage cylinder or via
an in-line gas booster located external to the storage cylinder�
Further detail on the system operation is included in the manual supplied with the controller�

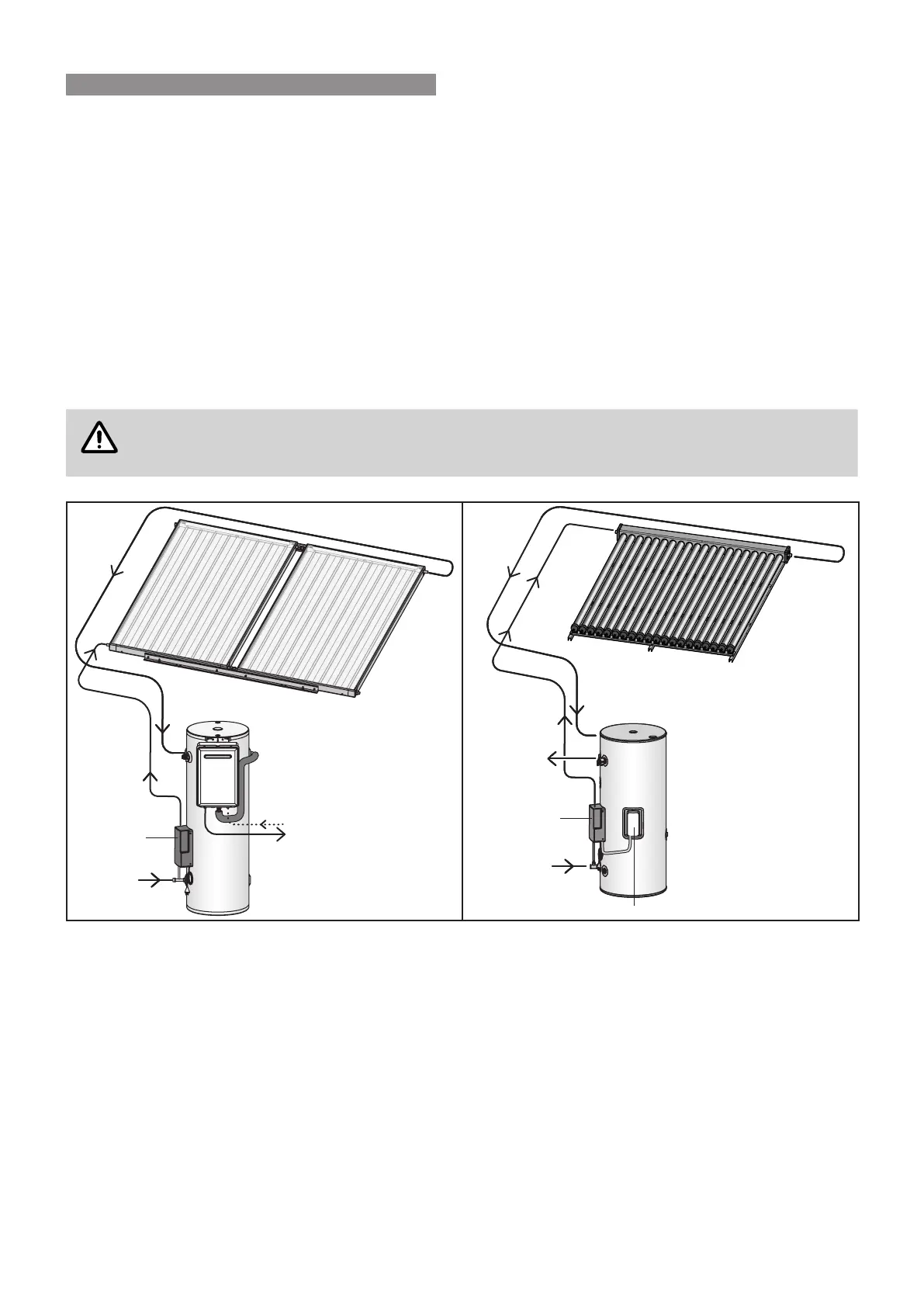

The following diagrams illustrate the operation of the system as with both electric and gas boosting�
WARNING
Thesediagramsareintendedtogiveanoverviewoftheoperationprincipleofasplitsolarhot
watersystem.Theyarenotintendedasaninstallationguide.Connectionsonthetankmayvary
fromthoseshown.Theinstallationdiagramsshownlaterinthismanualmustbefollowed.
COLD
WATER
SUPPLY
TO HOT
WATER
OUTLETS
GAS SUPPLY
PUMP &SOLAR
CONTROL MODULE
TO HOT
WATER
OUTLETS
COLD
WATER
SUPPLY
PUMP &SOLAR
CONTROL
MODULE
ELECTRIC
ELEMENT
ELECTRIC
ELEMENT
SYSTEM LOCATION
The location of all system components must comply with both local regulatory and Rinnai requirements. In particular
solar collectors need to positioned on roofs in accordance with the instructions in the solar collector installation
manual, that is provided with the collector installation kit�
WARNINGS AND IMPORTANT INFORMATION

Rinnai S20 Specifications

General

Brand	Rinnai
Model	S20
Category	Water System
Language	English
