Installing Your Firey

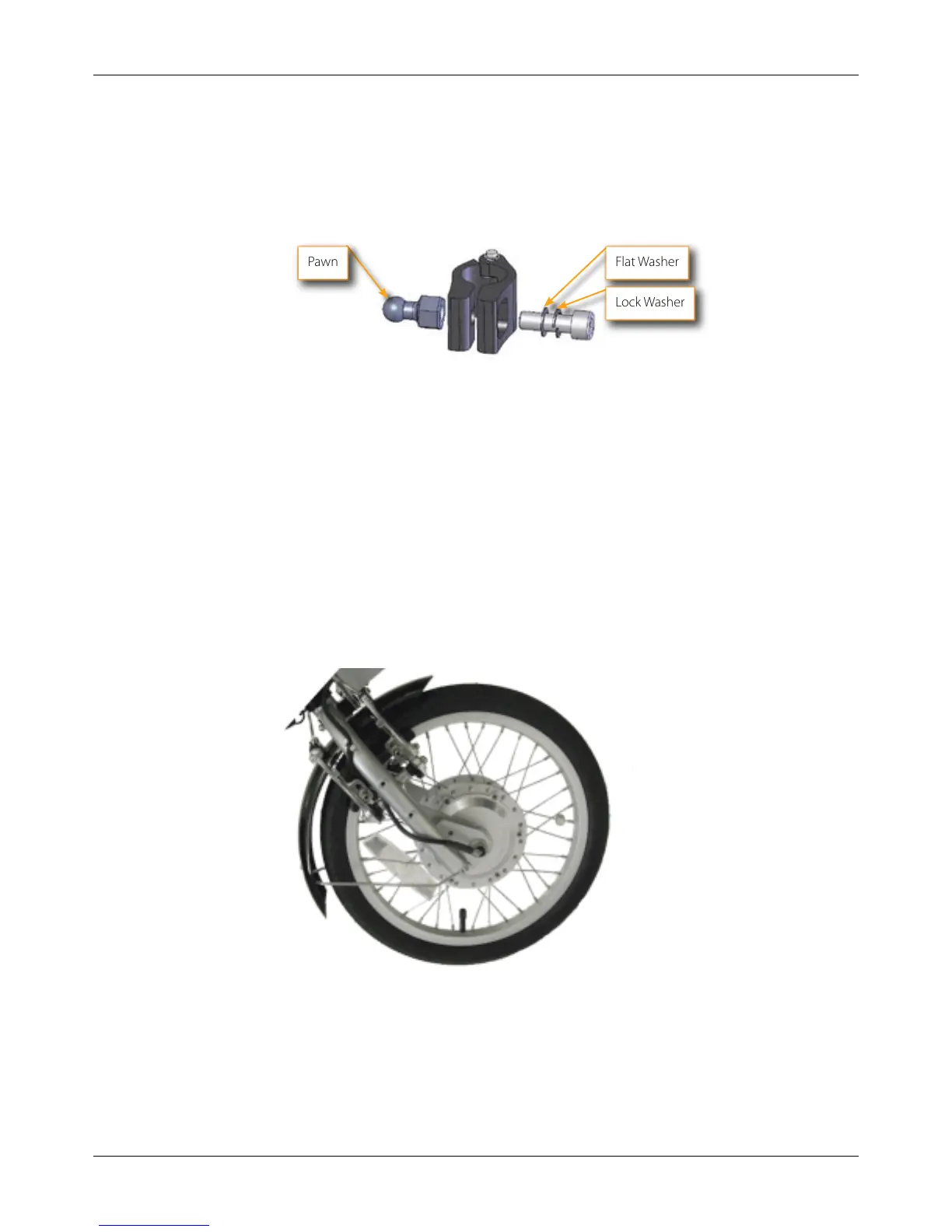

Installing the Clamps
Measure the diameter of your tubing using the ruler printed on page 5 and
ensure that you have the proper Clamps.
Determine the appropriate clamp placement for your frame using the gures on
page 6. If you need assistance, please contact sales@riomobility.com. Make sure
that the Washers are between the Clamp and the head of the Screw as shown.
Flat Washer
Lock Washer
Pawn
Requirements for clamp location include :
- Separate the Clamps as far as possible vertically, at least 3” (80mm)
- Clamps MUST be installed on straight sections of tubing ONLY. They must be at
least
1
/8” (3mm) away from any bend or weld in the tube
- DO NOT install Clamps on removable or swing-away footrests
Tighten the Clamps using the 8mm Hex wrench to a tightness of 10ft-lbs
(13.6Nm). This is a force of 20lbs 6” away from the screw (90N at 15cm away)
Preparing the Firey
TM
Install the Reectors
Your Firey
TM
handcycle comes with one Reector to be mounted to your spokes.
Attach the Wings
Attach the right Wing to the handcycle using the supplied Screws, Washers and
Nuts. Insert the Screw through the bottom holes of the Wing Plate and the
Steering Plate, with the Washers inserted as shown below. Tighten the Nut then
back o one turn so that the Wing may rotate. Do not install the Screw in the top
hole yet.
1.
2.
3.
1.
1.
