PG 11
PG 12

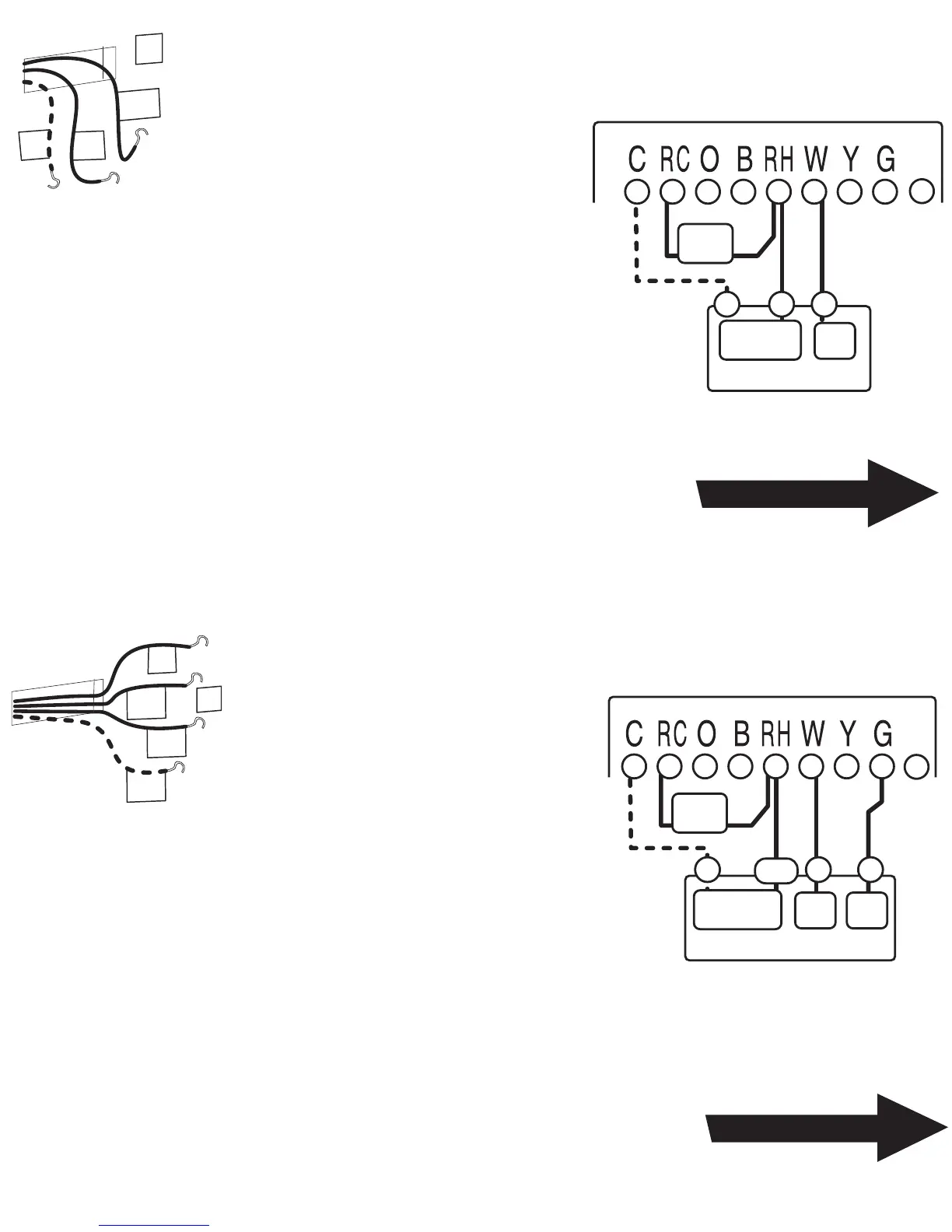

STEP 1 - Connect the R (or RH) wire to
the RH terminal on the thermostat.
This connects the Heater Power to the
thermostat.
STEP 2 - Connect the W wire to the W
terminal on the thermostat.
This connects the heater control line to the thermostat.
Your Heater is now connected to the thermostat.
STEP 1 - Connect the R (or RH) wire
to the RH terminal on the thermostat.
This connects to the Heater Power.
STEP 2 - Connect the W wire to
the W terminal on the thermostat.
This connects the heater control line
to the thermostat.
STEP 3 - Connect the G wire to the G
terminal on the thermostat.
This connects the Fan to the thermostat.
Your system is now connected to the thermostat.
Return To Page 7
Return To Page 7
2 WIRE Heating
(GAS MILLIVOLT or 24vac
NOTE: Wires marked with the dotted line are optional.
NOTE: Wires marked with the dotted line are optional.
3 WIRE
FURNACE
jumper
wire
Heat
Power
Heat
W G
RH
C
FAN
Thermostat
jumper
wire
FURNACE
HEAT
Thermostat
R
W
C
HEAT
Power
W
RH
R
or
From Furnace
C
RH
W
C
From Furnace
G
or R
A
A
To Next Page
