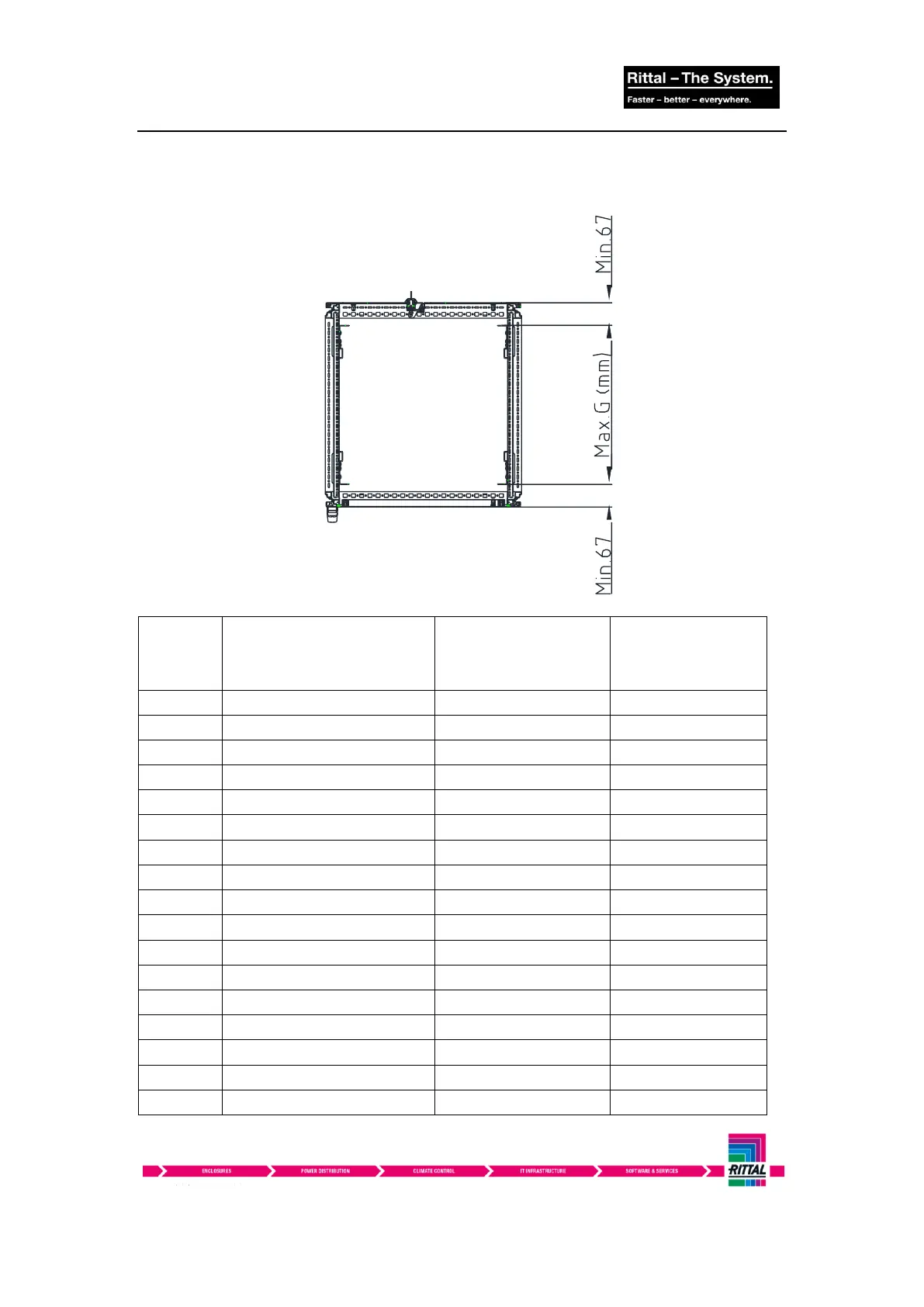

The maximum distance between front and rear mouting angle G(mm) can be found out from
below figure and table.
TYPE
W(width mm）H（height mm）
D（depth mm）
Adjustable
maximum distance G
（mm)
Adjustable
minimum distance
K（mm)
1194453
W600H2000D1000
870
195
1194454
W600H2000D1100
970
195
1194455
W600H2000D1200
1070
195
1194456
W800H2000D1000
870
195
1194457
W800H2000D1100
970
195
1194458
W800H2000D1200
1070
195
1194459
W800H2000D800
670
195
1194460
W600H2200D1000
870
195
1194461
W600H2200D1100
970
195
1194462
W600H2200D1200
1070
195
1194463
W800H2200D1000
870
195
1194464
W800H2200D1100
970
195
1194465
W800H2200D1200
1070
195
1194466
W600H2000D600
470
195
1194467
W600H2000D800
670
195
1194468
W600H2000D1000
870
195
1194469
W800H2000D800
670
195
