Rittal SR IT - Installation of Sidepanels(Optional Accessory)

用户手册(Manual)
32
7． Installation of Sidepanels(optional accessory)
1.Side panles are selected according to the height and depth of the cabinet.The following is the
standard material number that can be ordered directly.
material
number
English description
Chinese description
color
1194470
SR IT Side panel H2000D600
SR IT 侧板 H2000D600
RAL9005sandtxt
1194471
SR IT Side panel H2000D800
SR IT 侧板 H2000D800
RAL9005sandtxt
1194472
SR IT Side panel H2000D1000
SR IT 侧板 H2000D1000
RAL9005sandtxt
1194473
SR IT Side panel H2000D1100
SR IT 侧板 H2000D1100
RAL9005sandtxt
1194474
SR IT Side panel H2000D1200
SR IT 侧板 H2000D1200
RAL9005sandtxt
1194475
SR IT Side panel H2200D1000
SR IT 侧板 H2200D1000
RAL9005sandtxt
1194476
SR IT Side panel H2200D1100
SR IT 侧板 H2200D1100
RAL9005sandtxt
1194477
SR IT Side panel H2200D1200
SR IT 侧板 H2200D1200
RAL9005sandtxt

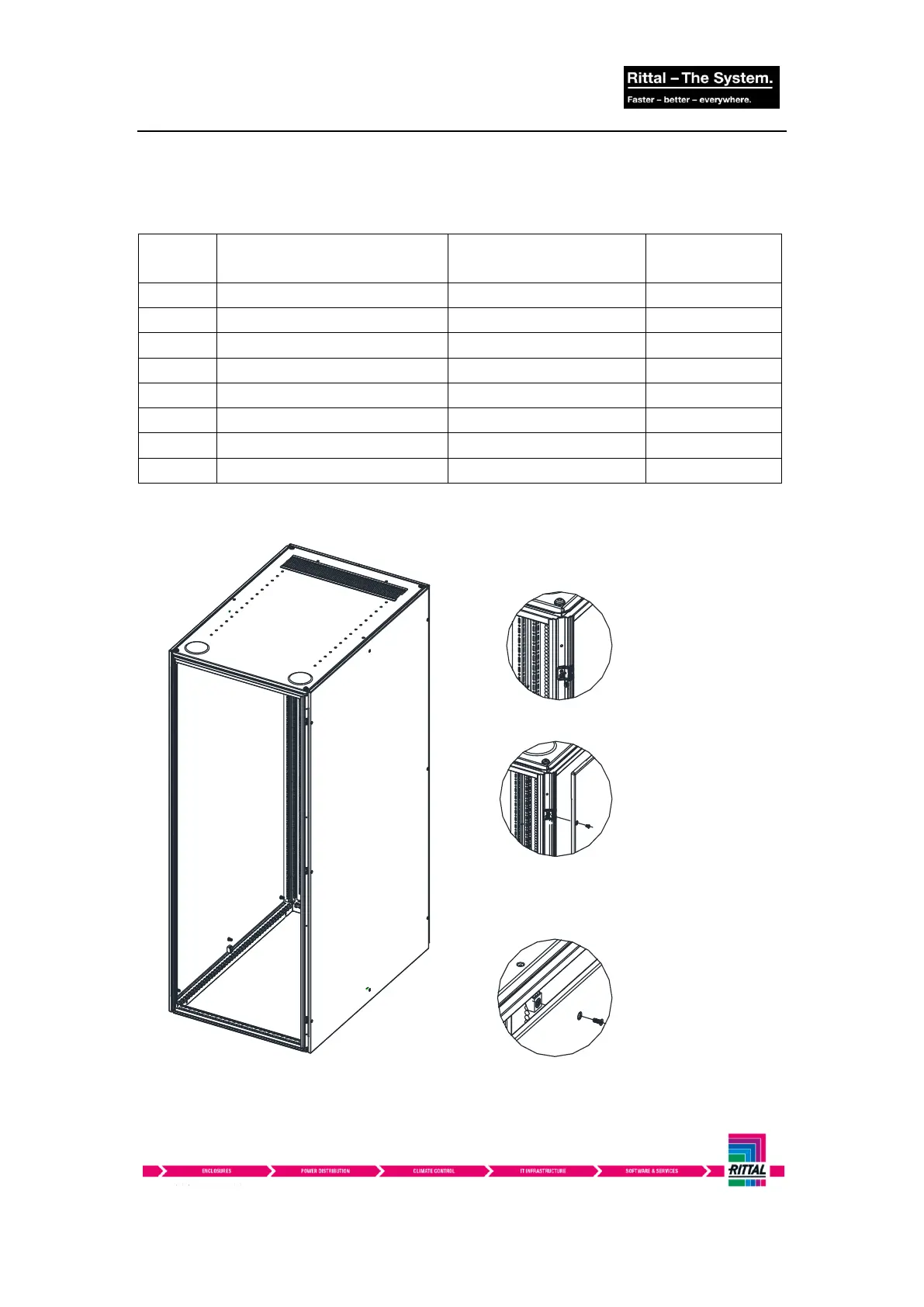

2. Installation of Sidepanels
Note: When installation, it will need at least 2 people work together;
Step1:fix the fixing braket to frame
Step2:fix the side panels to the fixing braket
Step3: When the cabinet depth is greater than 1000,
the center also needs to be fixed.
