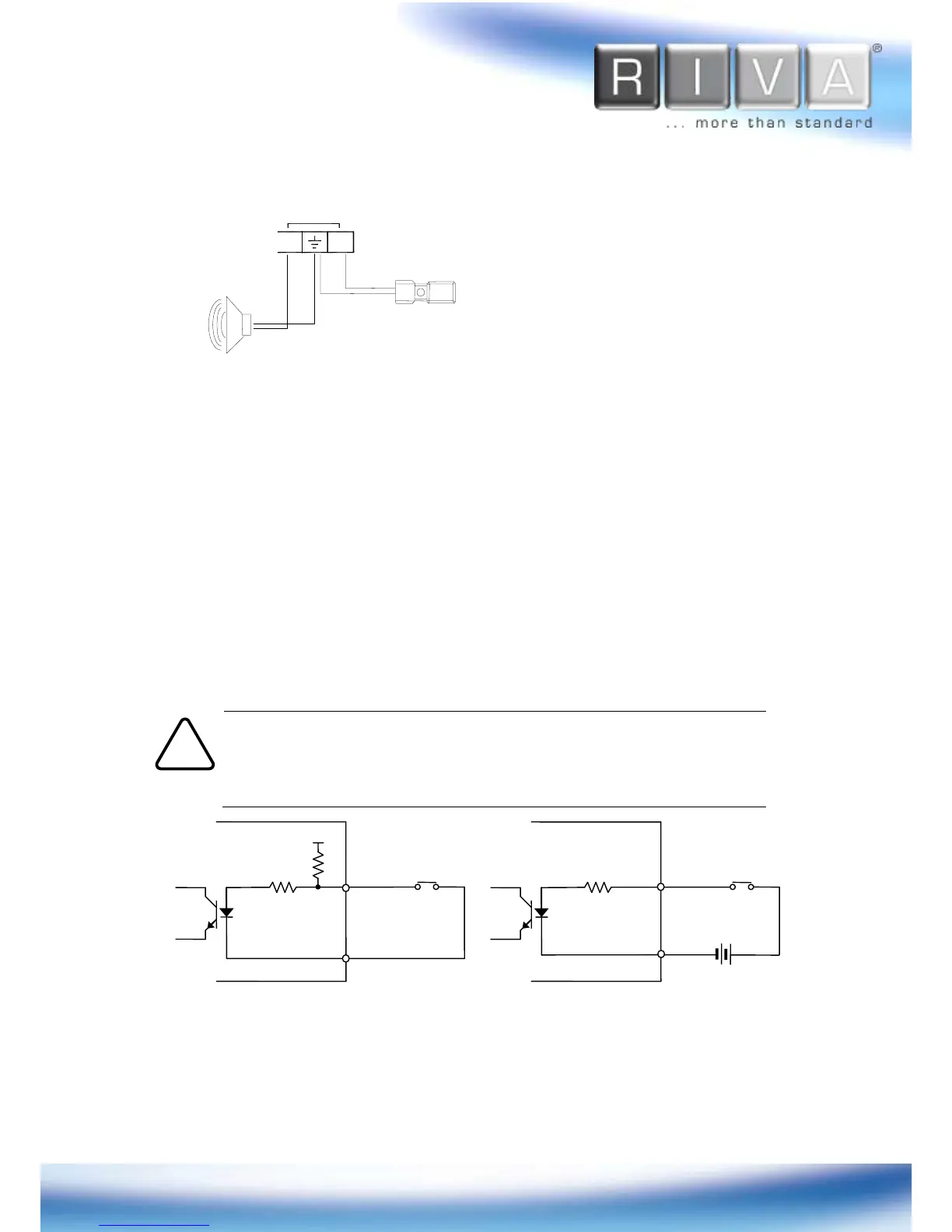

Sensor Input (D/I)
The camera provides 1 channel D/I. It can be connected to either a voltage type
sensor or relay type sensor as the following figures. Settings can be done through the
camera’s configuration webpage.
Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA
Input voltage threshold: 1.5V
Do not exceed the maximum input voltage or relay rate.
Alarm (DO) connection
Caution
!
+5V
DI
COM
DI
COM
+
-
Relay Type
Voltage Type
+
-
Output of
Sensor
Output of
Sensor
Internal
Internal
+
-
Mic
Amp Speaker
ETHERNET
MICRO SD
DC12V
DO
DI
1
OutOut
1
VIDEO
C C
In
AUDIO
+
Reset
SW1 SW2 SW3
SW5 SW6
N / A N / A
N / A N / A
SW1
SW2
SW3
SW4
SW5
SW6
