ADJUSTMENT TO ALL PARTS
Adjustment to Cantilever brake

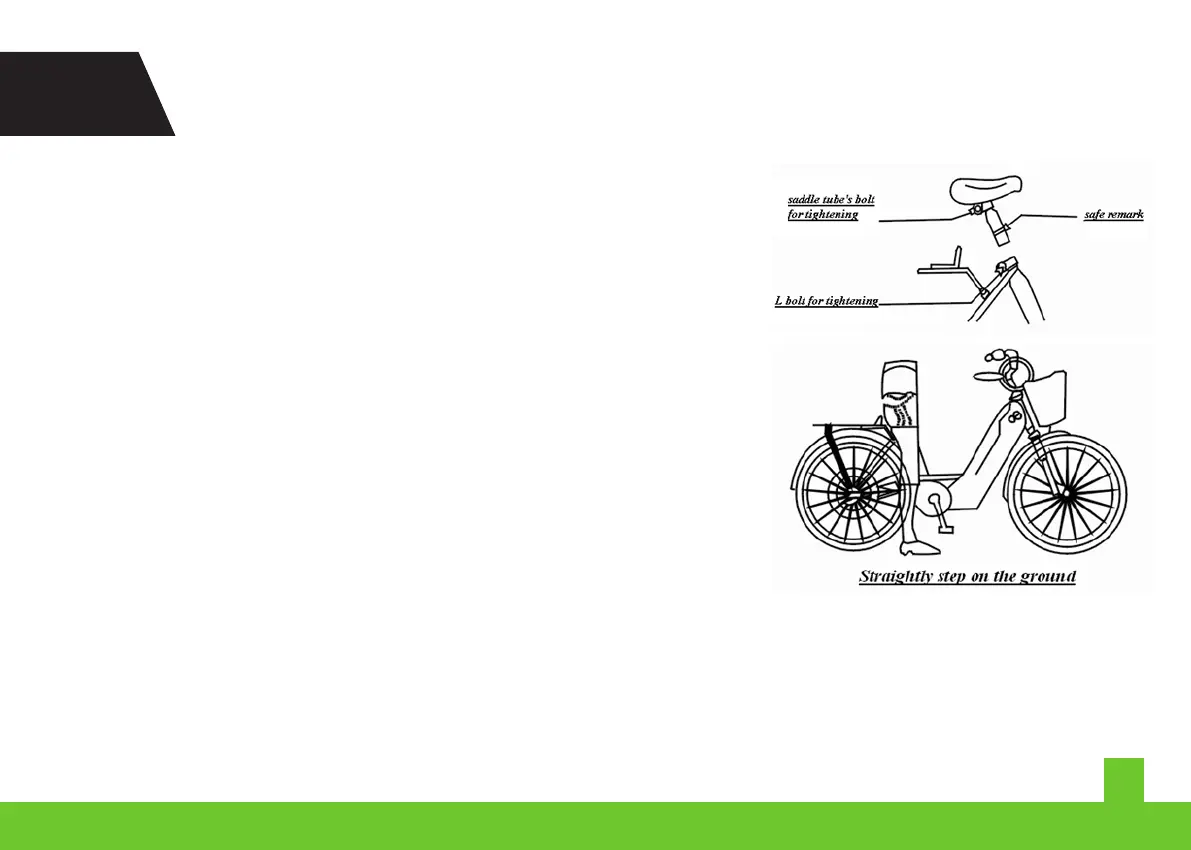

Adjustment to Saddle
Loose saddle tube's bolt, insert the saddle, then tight the bolt to a proper
level and adjust the height when sitting on it, make sure it is on the best
position for riding.
Adjust the brakes when stopping works abnormally.
Saddle should be inserted into the tube not less than remarked safe area.
Tightly screw the bolt between saddle and tube to a moment more than
18N·m.(see figure A).
Adjustment to Front / Back Brakes
Loose the tightening bolt when touch one side, 3holes on tightening area,
up moving the spring to increase the elasticity, this will enlarge the
distance between brake block and rim. Or oppositely. The best distance
between brake block and rim is 1.5mm. 90°would be best position of
Portcullis.
FIGURE A
FIGURE B
Ÿ Best distance between brake block and rim is 1.5mm.(See Figure D)
Adjustment to “V” brake
Fix one side then adjust the other(distance between both brake block and rim should be the same), Tighten
the bolt after adjusting.
