Adjustment to Clasp brake
Loose the fixing nut (on adjustable bolt)
and the pole nut, screw the adjustable bolt
meanwhile grip the brake, to set the rear
brake cling on rim when brake's moving is
1/3-1/2 of distance between, then
tightening the fixing nut and pole nut.
Readjust the distance when brake block
rests 1/3, replace the brake block when it
is 1/2.(See figure E&F)
Grip the pedal and tum it withershins,
chain should move smoothly without
noise.
Adjust the chain to a proper elasticity. (See
Figure G)
Loose the axle tightening nut and adjust
portcullis nut. Check if the hub lays in the
middle of rear fork.
Adjustment to Chan
T7
ADJUSTMENT TO ALL PARTS

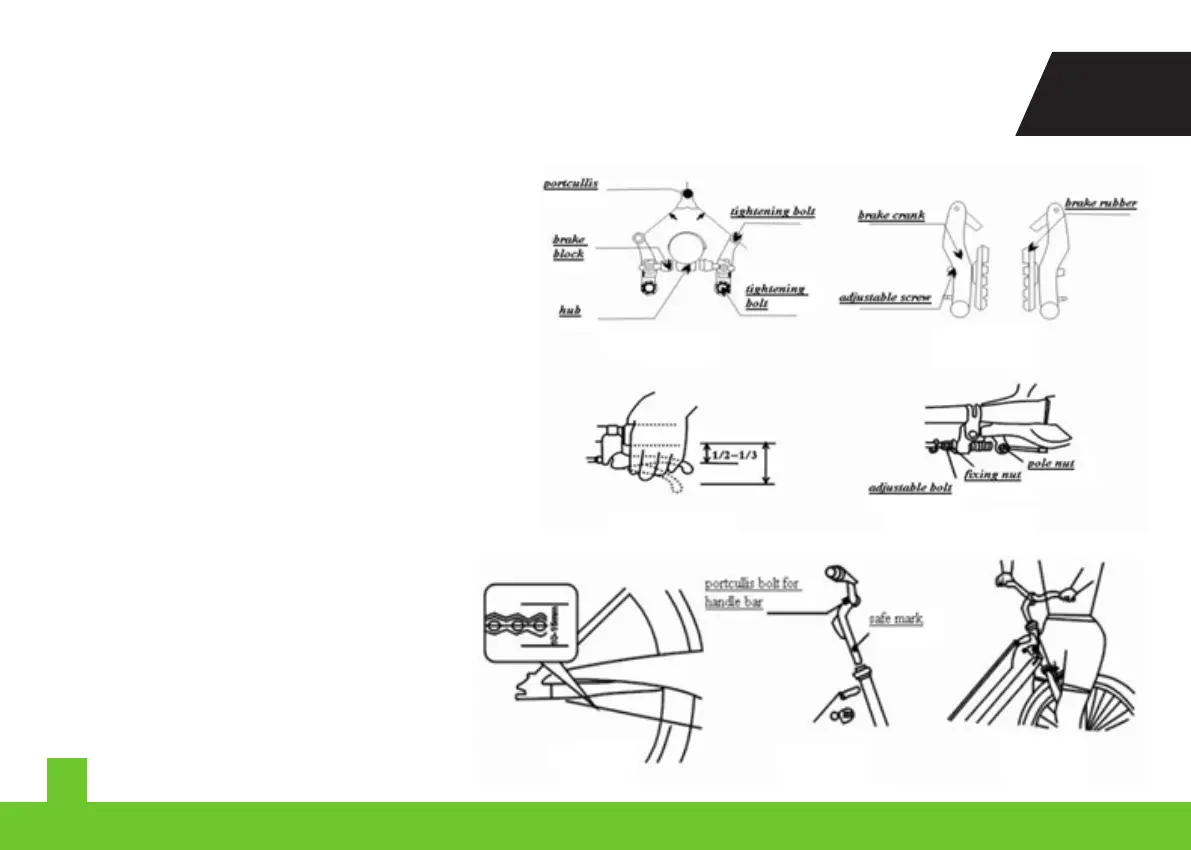

FIGURE F
FIGURE C FIGURE D
FIGURE E
FIGURE H
FIGURE G
FIGURE I
