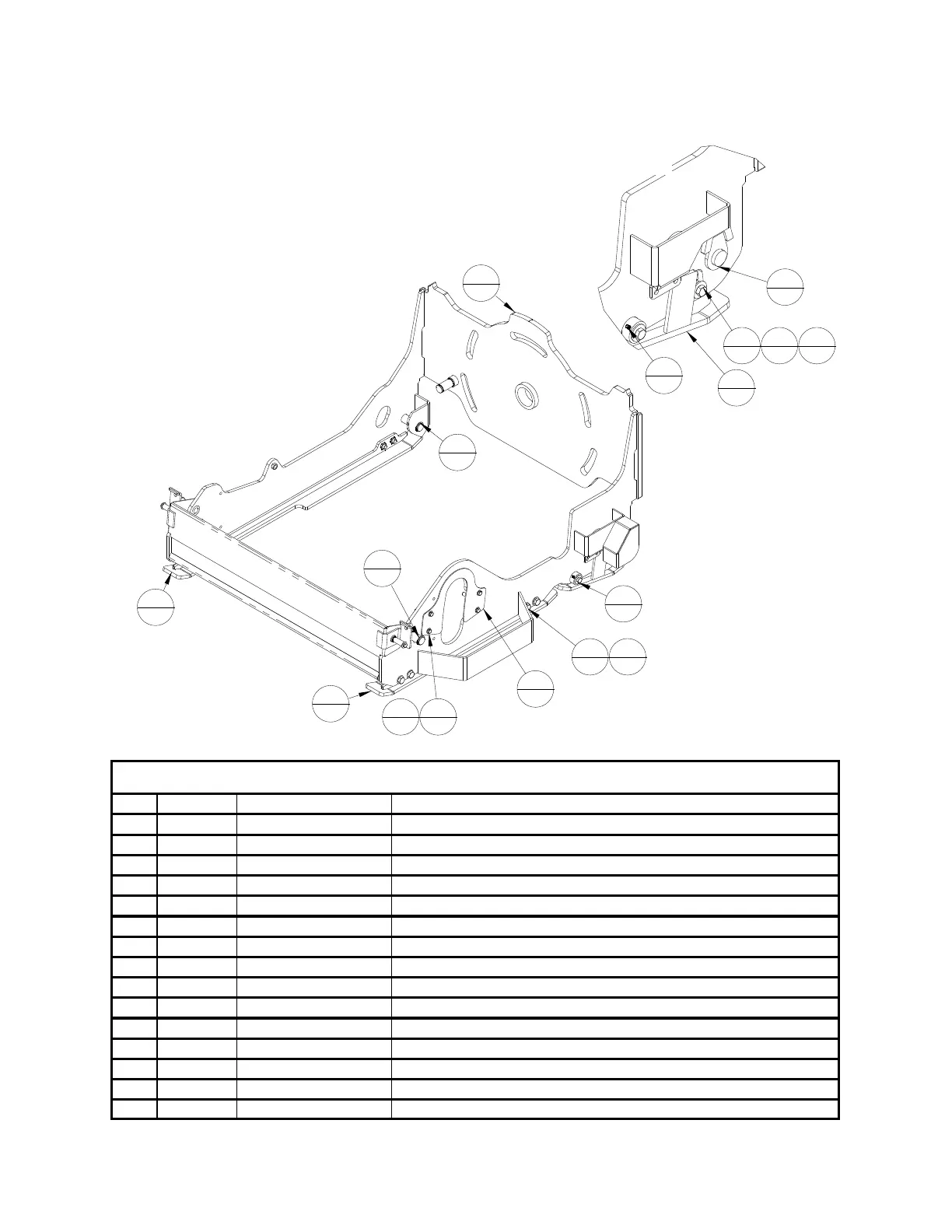

5.1 CHASSIS PARTS-CONTINUED
ITEM QTY. RH4060 PART NUMBER DESCRIPTION
1 1 106-3529 WELDMENT, WEAR SKID
2 1 106-3532 WELDMENT, WEAR SKID
3 1 106-3535 WELDMENT, WEAR SKID-SWITCH
4 1 106-3542 PLATE, DEPTH SKID COVER
5 1 106-3709 BUSHING, SHROUD BOLT
6 1 106-3710 BUSHING, SHROUD BOLT
7 2 106-3792 PIN WELDMENT
8 1 106-3953 WELDMENT, DEPTH SKID
9 6 HB038L0075A BOLT, 3/8-16 X 0.75 PLATED
10 2 HB050L0125A BOLT, 1/2-13 x 1.25 PLATED
11 8 HB063L0150A BOLT, 5/8-11 X 1.50 PLATED
12 6 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
13 4 HW038NA WASHER, 3/8 NARROW PLATED
14 7 HW050WA WASHER, 1/2 WIDE PLATED
15 8 HW063NA WASHER, 5/8 NARROW PLATED
16 5 HZ001 ZERK, 1/4-28 STRAIGHT
PARTS LIST
ITEM QTY. PART NO. DESCRIPTION
1 1 106-3529 WELDMENT, WEAR SKID
2 1 106-3532 WELDMENT, WEAR SKID
3 1 106-3535 WELDMENT, WEAR SKID-SWITCH
4 1 106-3542 PLATE, DEPTH SKID COVER
5 1 106-3709 BUSHING, SHROUD BOLT
6 1 106-3710 BUSHING, SHROUD BOLT
7 2 106-3792 PIN WELDMENT
8 1 106-3953 WELDMENT, DEPTH SKID
9 6 HB038L0075A BOLT, 3/8-16 X 0.75 PLATED
10 2 HB050L0125A BOLT, 1/2-13 x 1.25 PLATED
11 8 HB063L0150A BOLT, 5/8-11 X 1.50 PLATED
12 6 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
13 4 HW038NA WASHER, 3/8 NARROW PLATED
14 7 HW050WA WASHER, 1/2 WIDE PLATED
15 8 HW063NA WASHER, 5/8 NARROW PLATED
16 5 HZ001 ZERK, 1/4-28 STRAIGHT
