RoadHog RH4060 - Attach Parts

23

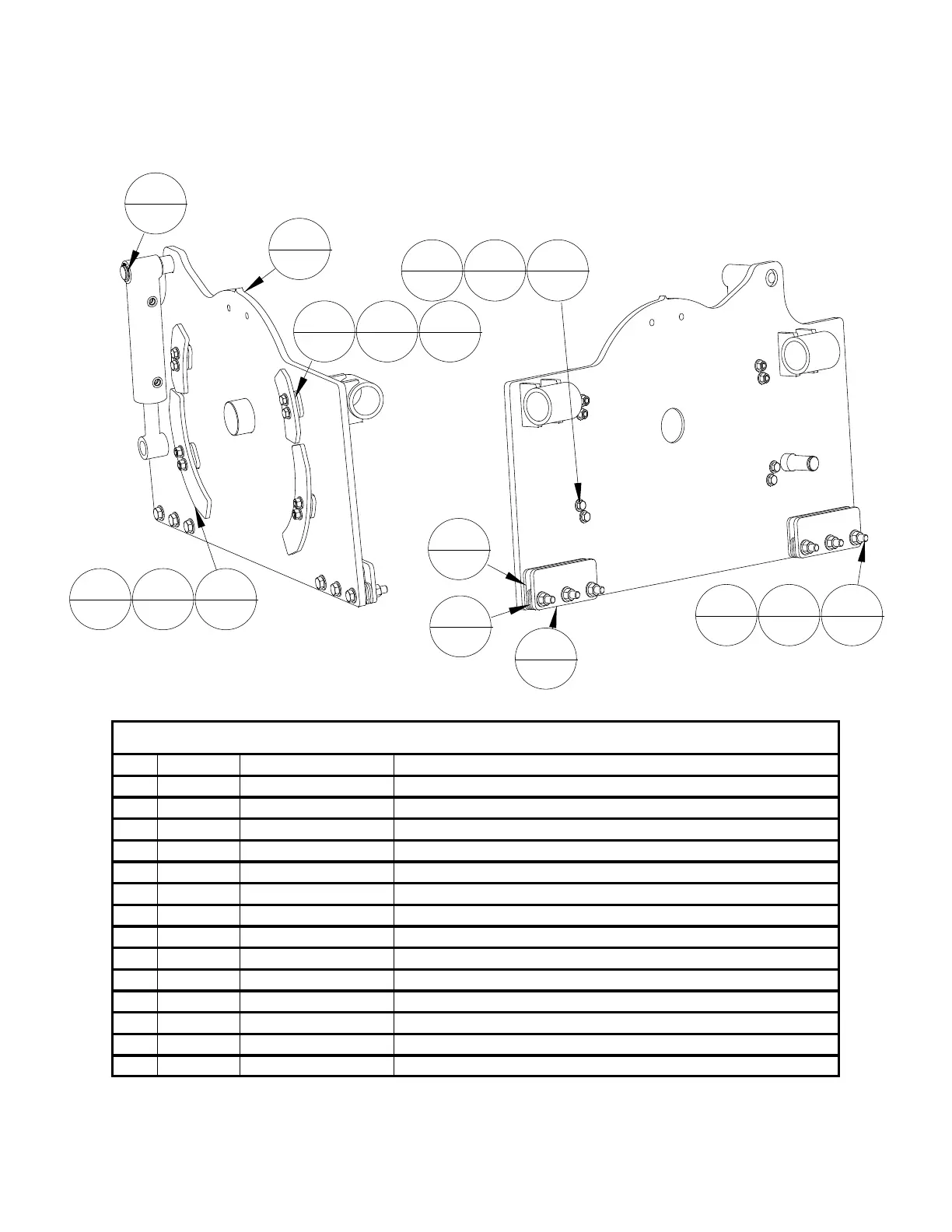

5.3 ATTACH PARTS
ITEM QTY. RH4060 PART NUMBER DESCRIPTION
1 6 106-0532 PLATE, SIDESHIFT SPACER
2 2 106-0533 PLATE, SIDESHIFT RETAINER
3 2 106-0589 PLATE, SIDESHIFT SPACER (PLASTIC)
4 4 106-3182 PLATE, PIVOT SPACER
5 2 106-3183 PLATE, PIVOT RETAINER
6 1 106-3975 WELDMENT, SIDESHIFT
7 4 106-4054 PLATE, PIVOT SPACER
8 2 106-4056 PLATE, PIVOT RETAINER
9 8 HB050L0250A BOLT, 1/2-13 X 2.50 PLATED
10 6 HB063L0325A BOLT, 5/8-11 X 3.25 PLATED
11 8 HN050A NUT, 1/2-13 PLATED
12 6 HN063F NUT, 5/8-11 PLATED NYLOCK
13 2 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
14 16 HW050NA WASHER, 1/2 NARROW PLATED
15 12 HW063NA WASHER, 5/8 NARROW PLATED
PARTS LIST
ITEM QTY. PART NO. DESCRIPTION
1 6 106-0532 PLATE, SIDESHIFT SPACER
2 2 106-0533 PLATE, SIDESHIFT RETAINER
3 2 106-0589 PLATE, SIDESHIFT SPACER (PLASTIC)
4 4 106-3182 PLATE, PIVOT SPACER
5 2 106-3183 PLATE, PIVOT RETAINER
6 1 106-3975 WELDMENT, SIDESHIFT
7 4 106-4054 PLATE, PIVOT SPACER
8 2 106-4056 PLATE, PIVOT RETAINER
9 10 HB050L0250A BOLT, 1/2-13 X 2.50 PLATED
10 6 HB063L0325A BOLT, 5/8-11 X 3.25 PLATED
11 14 HN050A NUT, 1/2-13 PLATED
12 6 HN063F NUT, 5/8-11 PLATED NYLOCK
13 4 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
14 28 HW050NA WASHER, 1/2 NARROW PLATED
15 12 HW063NA WASHER, 5/8 NARROW PLATED
