RoadHog RH4060 - Electrical Parts & Schematic

28
ITEM QTY.
RH4060 PART
NUMBER DESCRIPTION
1 1 106-3567 BATTERY, MPT24
2 1 106-3568 SWITCH, PROXIMITY
3 1 106-3754 PLATE, BATTERY SWITCH MOUNT
4 1 106-3979 WELDMENT, BATTERY BOX
5 2 HB038L0100A BOLT, 3/8-16 X 1.00 PLATED
6 2 HN038A NUT, 3/8-16 PLATED
7 4 HW038NA WASHER, 3/8 NARROW PLATED
NOTE A 1 106-3967 HARNESS, MAIN PLANER
NOTE A 1 106-3849 CONTROL ASSY, MOTOR
NOTE A 1 106-3576 CONTROL ASSY, PLANER
NOTE A 1 S0-0230 RELAY, PROXIMITY SWITCH
NOTE A 1 106-3995 BATTERY CABLE, POSITIVE
NOTE A 1 106-3996 BATTERY CABLE, NEGATIVE
NOTE A: NOT SHOWN ON DRAWING.

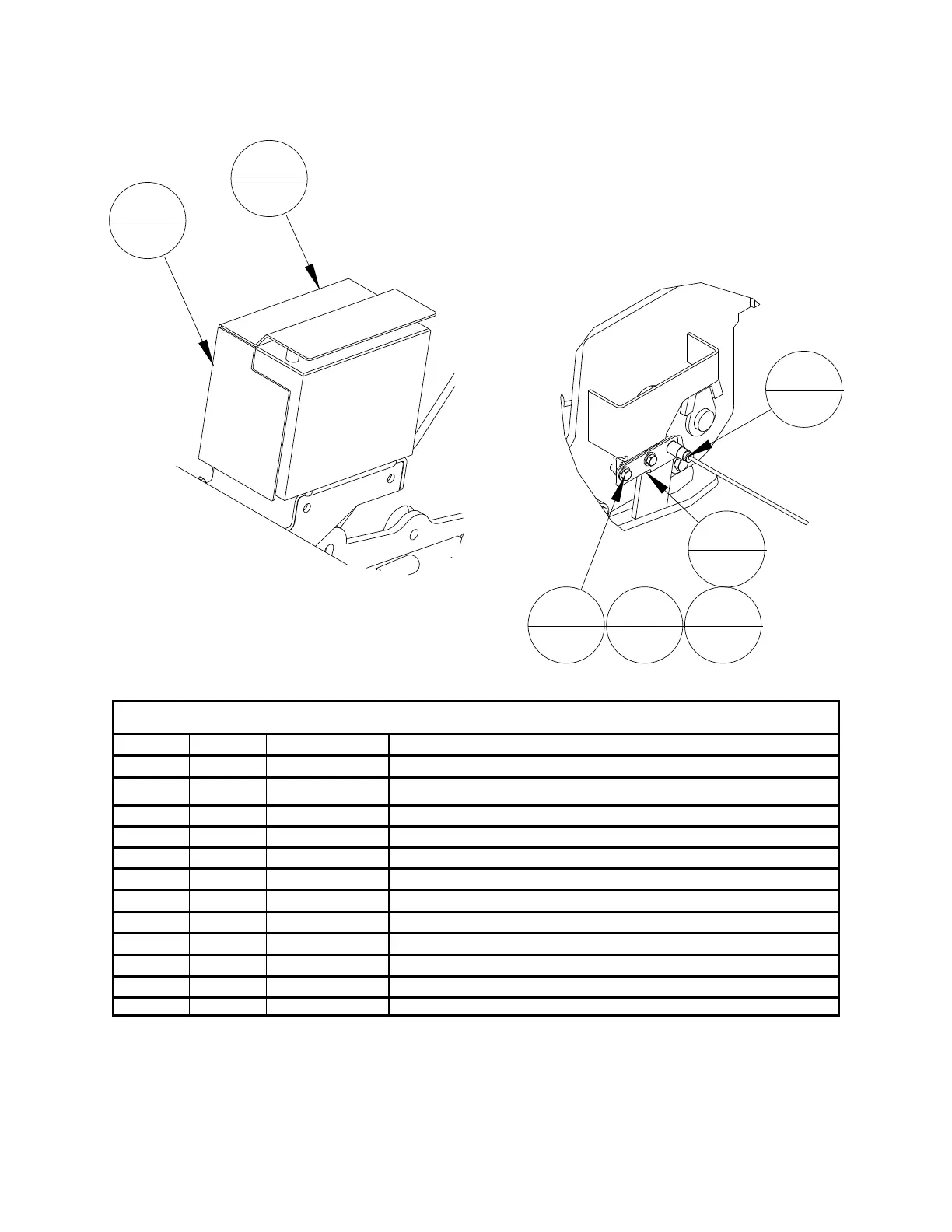

5.5 ELECTRICAL PARTS
PARTS LIST
ITEM QTY. PART NO. DESCRIPTION
1 1 106-3567_BATTERY_MTP24 BATTERY, MPT24
2 1 106-3568 SWITCH, PROXIMITY
3 1 106-3754 PLATE, BATTERY SWITCH MOUNT
4 1 106-3979 WELDMENT, BATTERY BOX
5 2 HB038L0100A BOLT, 3/8-16 X 1.00 PLATED
6 2 HN038A NUT, 3/8-16 PLATED
7 4 HW038NA WASHER, 3/8 NARROW PLATED
1
1
4
1
2
1
3
1
5
2
6
2
7
4
