RoadHog RH4060 - Parts Information; Chassis Parts

18
ITEM QTY. RH4060 PART NUMBER DESCRIPTION
1 1 106-2501 LATCH ASSEMBLY, DRAW
2 2 106-3155 BUSHING, SHROUD BOLT
3 1 106-3174 WELDMENT, PLANETARY SUPPORT
4 2 106-3202 CYLINDER ASSY, DEPTH
5 2 106-3543 PIN WELDMENT
6 1 106-3959 WELDMENT, CHASSIS
7 1 106-3963 PLATE, BREAKER BAR
8 1 106-3968 WELDMENT, CHASSIS SHROUD
9 1 106-3971 PLATE, WATERKIT COVER
10 4 HB025L0100A BOLT, 1/4-20 X 1.00 PLATED
11 4 HB031L0125A BOLT, 5/16-18 X 1.25 PLATED
12 5 HB038L0150A BOLT, 3/8-16 X 1.50 PLATED
13 4 HB050L0175A BOLT, 1/2-13 x 1.75 PLATED
14 4 HN025A NUT, 1/4-20 PLATED
15 4 HN031A NUT, 5/16-18 PLATED
16 5 HN038A NUT, 3/8-16 PLATED
17 2 HN050A NUT, 1/2-13 PLATED
18 6 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
19 8 HW025NA WASHER, 1/4 NARROW PLATED
20 8 HW031NA WASHER, 5/16 NARROW PLATED
21 26 HW038WA WASHER, 3/8 WIDE PLATED
22 4 HW050NA WASHER, 1/2 NARROW PLATED
23 7 HW050WA WASHER, 1/2 WIDE PLATED
24 5 HZ001 ZERK, 1/4-28 STRAIGHT
25 2 HZ002 ZERK, 1/4-28 45 DEG.

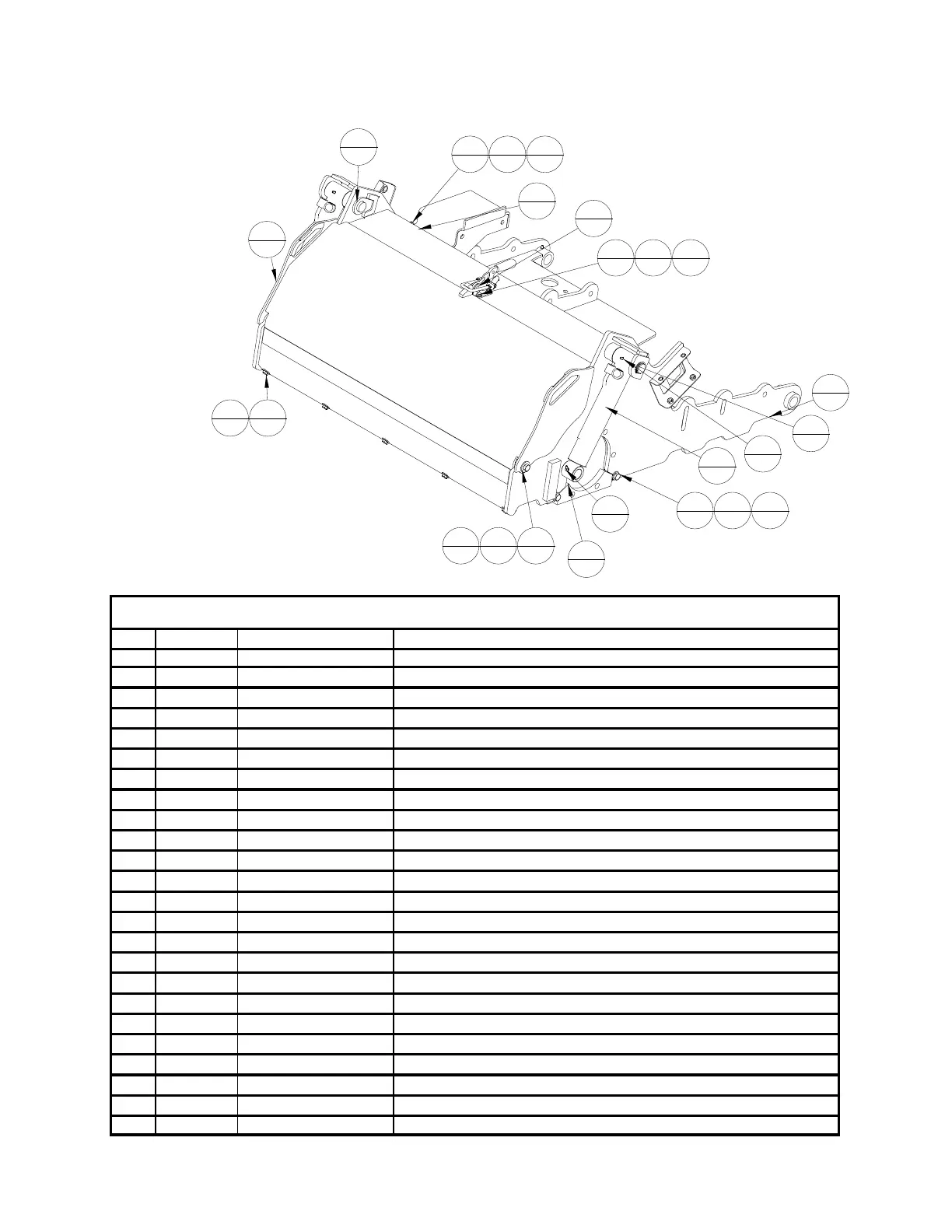

5.1 CHASSIS PARTS
PARTS LIST
ITEM QTY. PART NO. DESCRIPTION
1 1 106-2501_RH1850 LATCH ASSEMBLY, DRAW
2 2 106-3155 BUSHING, SHROUD BOLT
3 1 106-3174 WELDMENT, PLANETARY SUPPORT
4 2 106-3202_DCYL_RETRACTED CYLINDER ASSY, DEPTH
5 2 106-3543 PIN WELDMENT
6 1 106-3959 WELDMENT, CHASSIS
7 1 106-3963 PLATE, BREAKER BAR
8 1 106-3968 WELDMENT, CHASSIS SHROUD
9 1 106-3971 PLATE, WATERKIT COVER
10 4 HB025L0100A BOLT, 1/4-20 X 1.00 PLATED
11 4 HB031L0125A BOLT, 5/16-18 X 1.25 PLATED
12 5 HB038L0150A BOLT, 3/8-16 X 1.50 PLATED
13 4 HB050L0175A BOLT, 1/2-13 x 1.75 PLATED
14 4 HN025A NUT, 1/4-20 PLATED
15 4 HN031A NUT, 5/16-18 PLATED
16 5 HN038A NUT, 3/8-16 PLATED
17 2 HN050A NUT, 1/2-13 PLATED
18 6 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
19 8 HW025NA WASHER, 1/4 NARROW PLATED
20 8 HW031NA WASHER, 5/16 NARROW PLATED
21 26 HW038WA WASHER, 3/8 WIDE PLATED
22 4 HW050NA WASHER, 1/2 NARROW PLATED
23 7 HW050WA WASHER, 1/2 WIDE PLATED
24 5 HZ001 ZERK, 1/4-28 STRAIGHT
25 2 HZ002 ZERK, 1/4-28 45 DEG.
1
1
2
2
3
1
4
2
5
2
6
1
8
1
9
1
10
4
11
4
12
5
24
2
25
2
13
2
18
2
13
2
14
4
15
4
16
5
17
2
19
8
20
8
22
4
23
2
