RoadHog RH4060 - Page 24

24

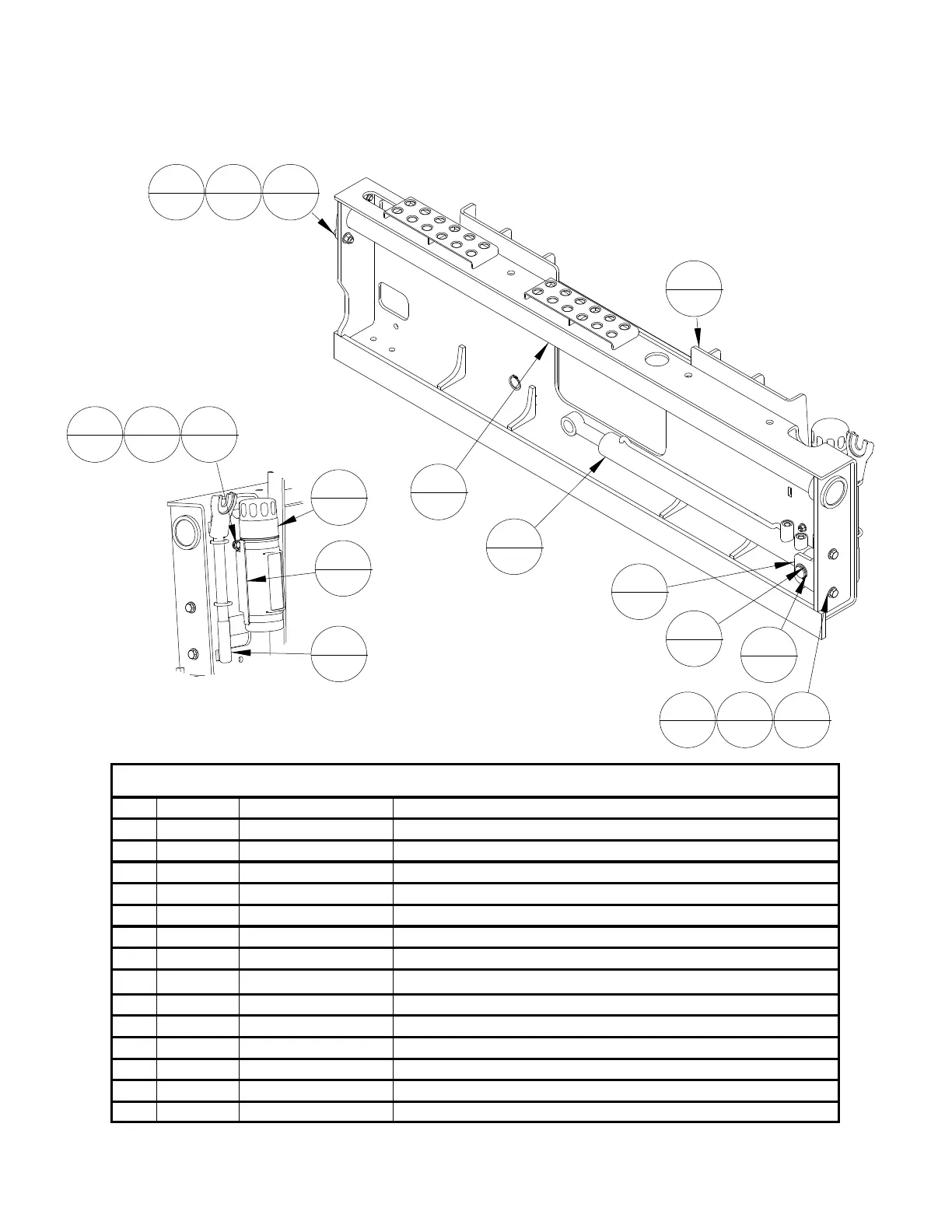

5.3 ATTACH PARTS-CONTINUED
ITEM QTY. RH4060 PART NUMBER DESCRIPTION
1 1 106-0657 CYLINDER, SIDESHIFT
2 1 106-0790 PIN, SIDESHIFT/LF JACK
3 1 106-0813 PLATE, CYLINDER BRACKET
4 1 106-1245 TUBE, MANUAL HOLDER
5 1 106-1249 PLATE, MANUAL TUBE RETAINER
6 1 106-1359 WELDMENT, ATTACH
7 1 106-1360 WELDMENT, SIDESHIFT ROD
8 1 106-3139 PICK TOOL, FORK STYLE
9 2 HB038L0100A BOLT, 3/8-16 X 1.00 PLATED
10 4 HB050L0175A BOLT, 1/2-13 x 1.75 PLATED
11 2 HN038A NUT, 3/8-16 PLATED
12 4 HN050A NUT, 1/2-13 PLATED
13 4 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
14 4 HW038NA WASHER, 3/8 NARROW PLATED
15 8 HW050NA WASHER, 1/2 NARROW PLATED
PARTS LIST
ITEM QTY. PART NO. DESCRIPTION
1 1 106-0657_COLLAPSED CYLINDER, SIDESHIFT
2 1 106-0790 PIN, SIDESHIFT/LF JACK
3 1 106-0813 PLATE, CYLINDER BRACKET
4 1 106-1245 TUBE, MANUAL HOLDER
5 1 106-1249 PLATE, MANUAL TUBE RETAINER
6 1 106-1359 WELDMENT, ATTACH
7 1 106-1360 WELDMENT, SIDESHIFT ROD
8 1 106-3139 PICK TOOL, FORK STYLE
9 2 HB038L0100A BOLT, 3/8-16 X 1.00 PLATED
10 4 HB050L0175A BOLT, 1/2-13 x 1.75 PLATED
11 2 HN038A NUT, 3/8-16 PLATED
12 14 HN050A NUT, 1/2-13 PLATED
13 4 HRRE125A RETAINING RING-EXTERNAL 1.25" DIA.
14 4 HW038NA WASHER, 3/8 NARROW PLATED
15 28 HW050NA WASHER, 1/2 NARROW PLATED
1
1
2
1
6
1
7
1
10
2
13
2
3
1
10
2
4
1
5
1
8
1
9
2
12
2
15
4
15
4
12
2
11
2
14
4
