18

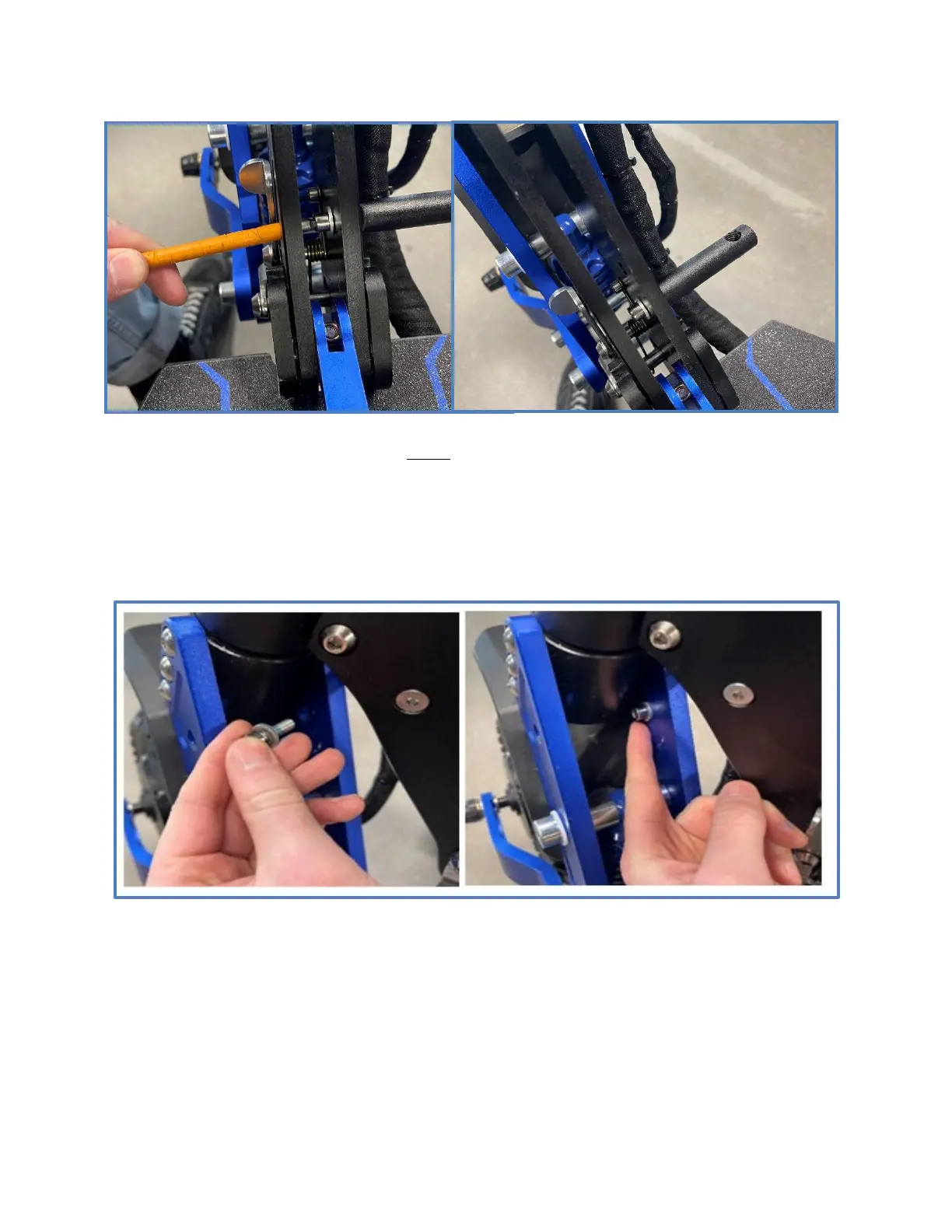

4. Use your fingers to thread the larger dowel onto the end of the bolt. You will want
to leave it slightly loose. It may help to use the 5mm allen as a counter- torque for
the bolt.
5. Now do the front dowel. The process is very similar, and should be a bit easier.
Start by placing the washer onto the M5 bolt, and place it through the hole on the
righthand side of the blue arm. Then hand tighten the dowel onto the other end of the
M5 bolt. Remember: do not tighten all the way yet.
