20

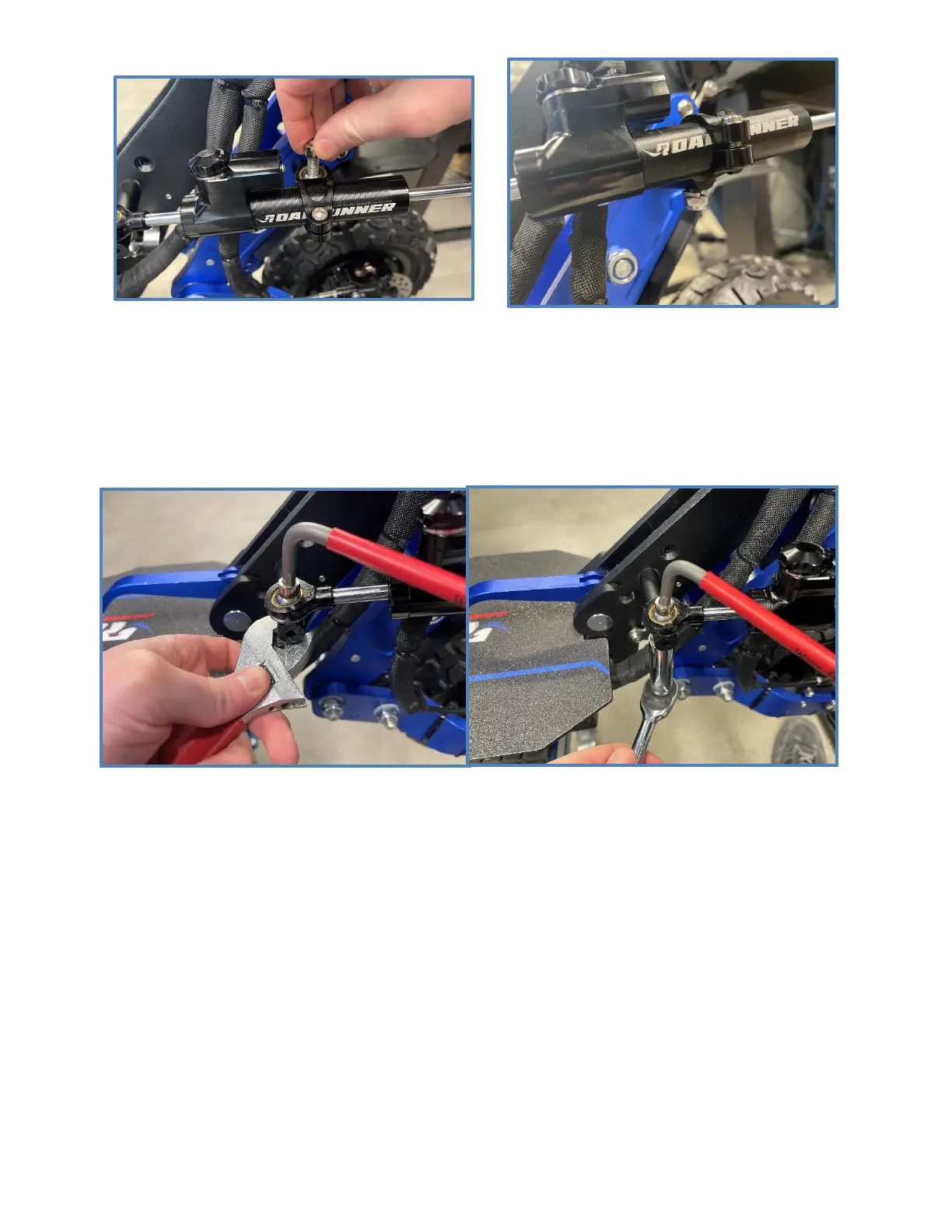

9. Repeat step 8 using the eyelet
available on the clamp.
10. Place the M8 spring washer onto the
underside of the M8 bolt, then start
threading the M8 locking nut onto the bolt
(following the spring washer).
11. Use the 13mm socket (or adjustable spanner) to tighten the bolt onto the underside of
the nut. Repeat this step for both M8 bolts on either eyelet. Use the 6mm allen as a counter
torque.
