Robam cd28-w985 - Installation Instruction

Installation Instruction
1.The table top of kitchen cabinet should be keep horizontal and clean. Make a aperture
dimension on the table top of kitchen cabinet before installation. It need to clean the saw dust
before installation ,otherwise it will interface the component of multifunction hob operation
.Make sure whole kitchen cabinet stable after making a aperture dimension.
2.Keep distance no less than100mm from the air-taking hole to wall and keep space no less
than mm in horizontal ,please refer to instruction when install the hood .
3.Make a aperture dimension on the kitchen cabinet which can comply with requirement of
ventilation and connect with air flow. (recommend size: width200mm height 200mm)
4.Make a aperture dimension on the table top according to the attached templet and make sure
the four vertical smooth after make a dimension. keep distance no less than 100mm from the
bottom of induction to cabinet.
5.It should be sealed to keep heat- resisting and swelled if making a aperture dimension on the
wooden top
6.The kitchen cabinet material should bear 90 degree temperature
7.It needs to keep distance no less than 40mm from side wall to aperture hole
●We are not recommend you to put induction cooker in the middle of two wall, if that happened
,please make sure leave 200mm distance from one of the wall to the aperture hole.
8.Make sure from the top of oven to the top of table reach to 70mm if want to install the oven
9.Make sure the thickness of table top no less than 20mm if wan to install the drawer
10.Make sure to make a 80mm cutting from two side’s board top to table top if the distance from
two sides boards less than 758mm.
1000

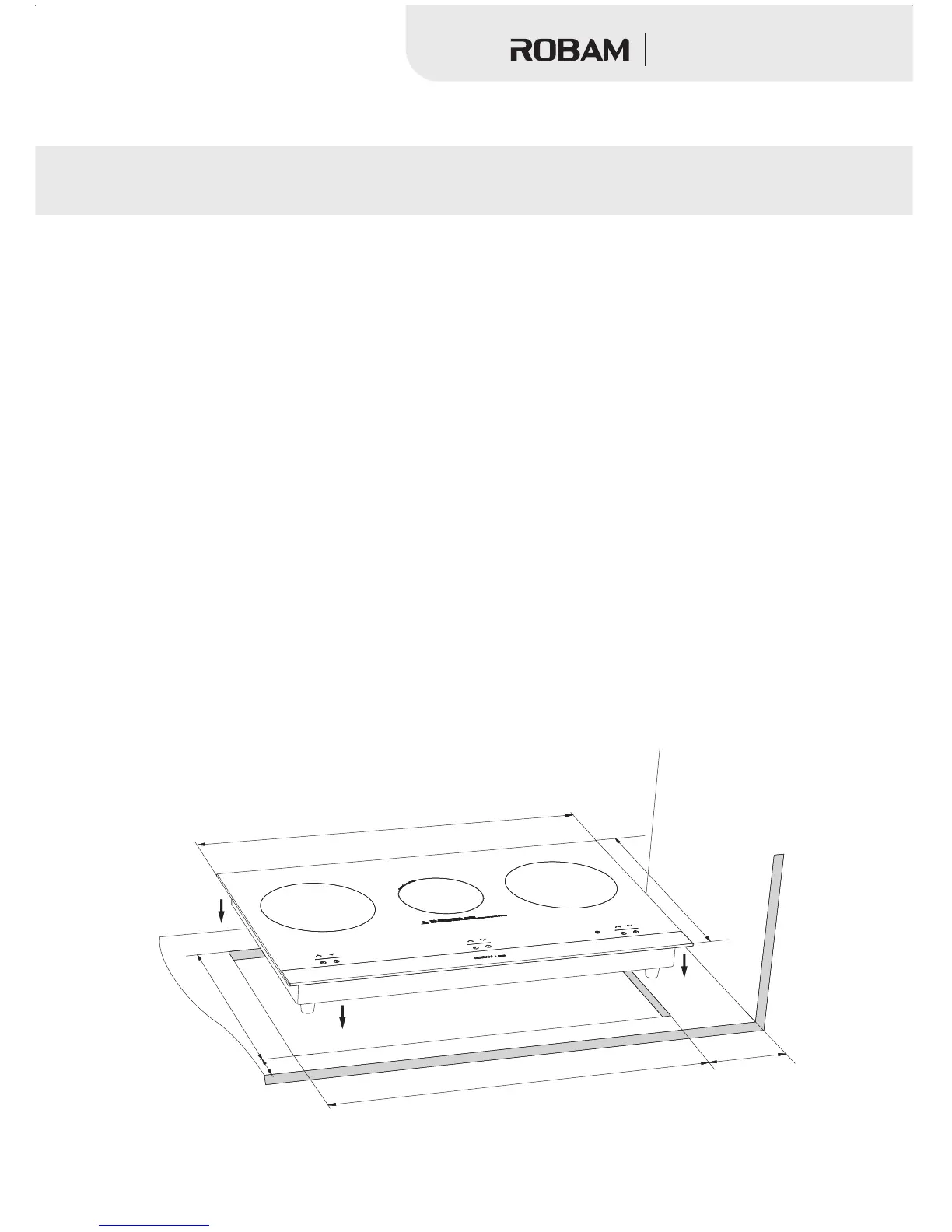

Installation schematic diagram
5
0
0
8
0
0
>200
>60
7
5
8
+
2
-0
45
8
+
2
-
0
9
Multifunction Hob
