Child Lock Function

In heating condition, press the key seconds, the buzzer makes a sound, the indicator

light “ ” turns on. The machine locked in current state, only press “ ” is useful and other

keys are invalid. If you want to unlock the child lock, press the key “ ” 3 seconds.

“ ” 2

Turn off

After finish using, press the button ， the multifunction hob will stop heating, after minute

running of the fun, it automatically stop running. If the multifunction hob is using too long time

without any modification, it will automatically turn off in 1hour ( except the timing function).

“ ”

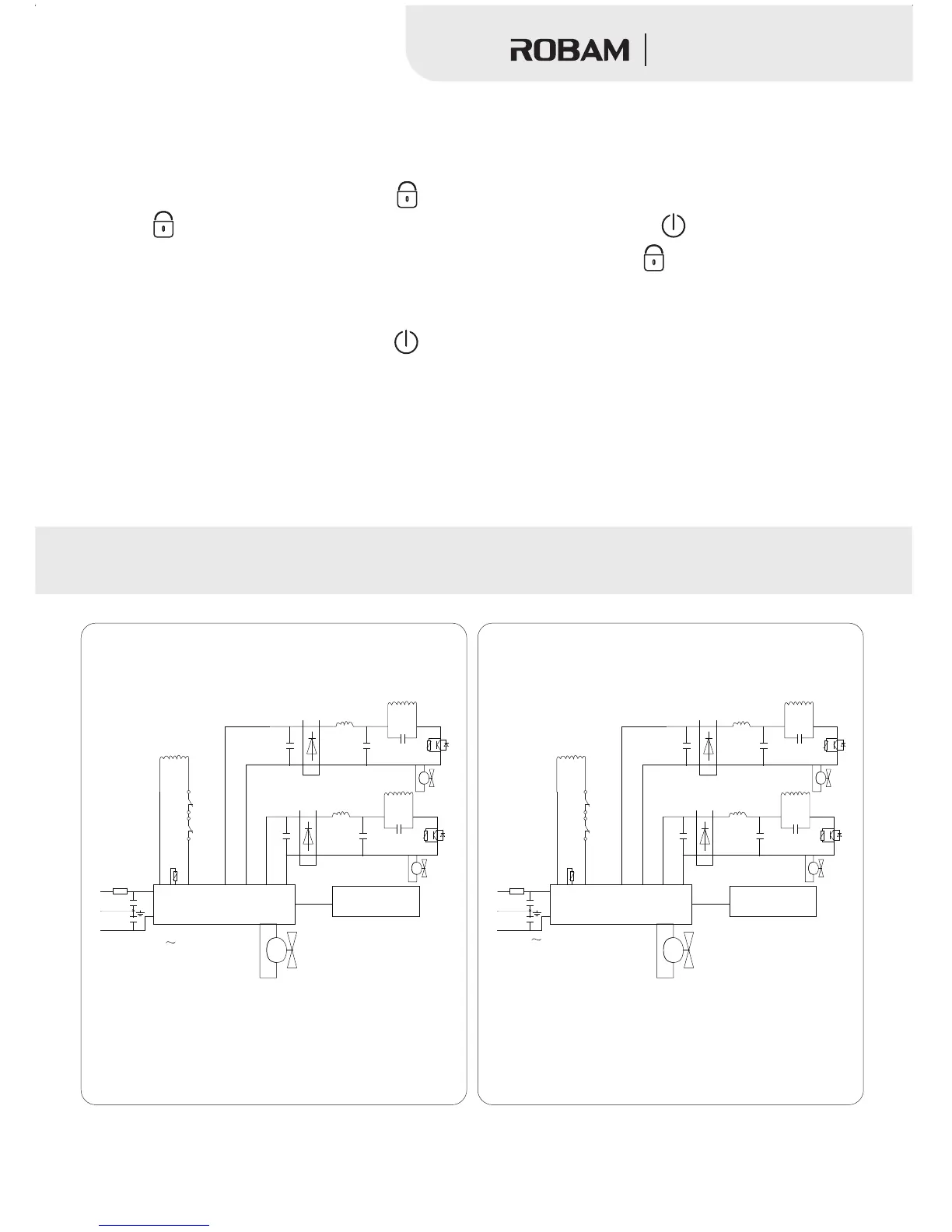

Electrical Schematic Diagram

Multifunction Hob

CD32-W985

CD28-W985

Pow e r p l a t e

Key board and

display board

220 V - 2 4 0 V

RT2

C1B

D1B

C2B

L1B

L2B

C3B

Q1B

RT1B

L2A

C3A

Fan1B

Q1A

RT1A

L1A

C2A

D1A

Fan1A

Fan 2

C1A

220 V
