10. Secure base to wall with supplied screws.
11. Terminal screws are loosened. Insert wires into terminal strip
(Figure 4) matching the label to the corresponding terminal (see
Wiring Diagrams below). Tighten screws.
5

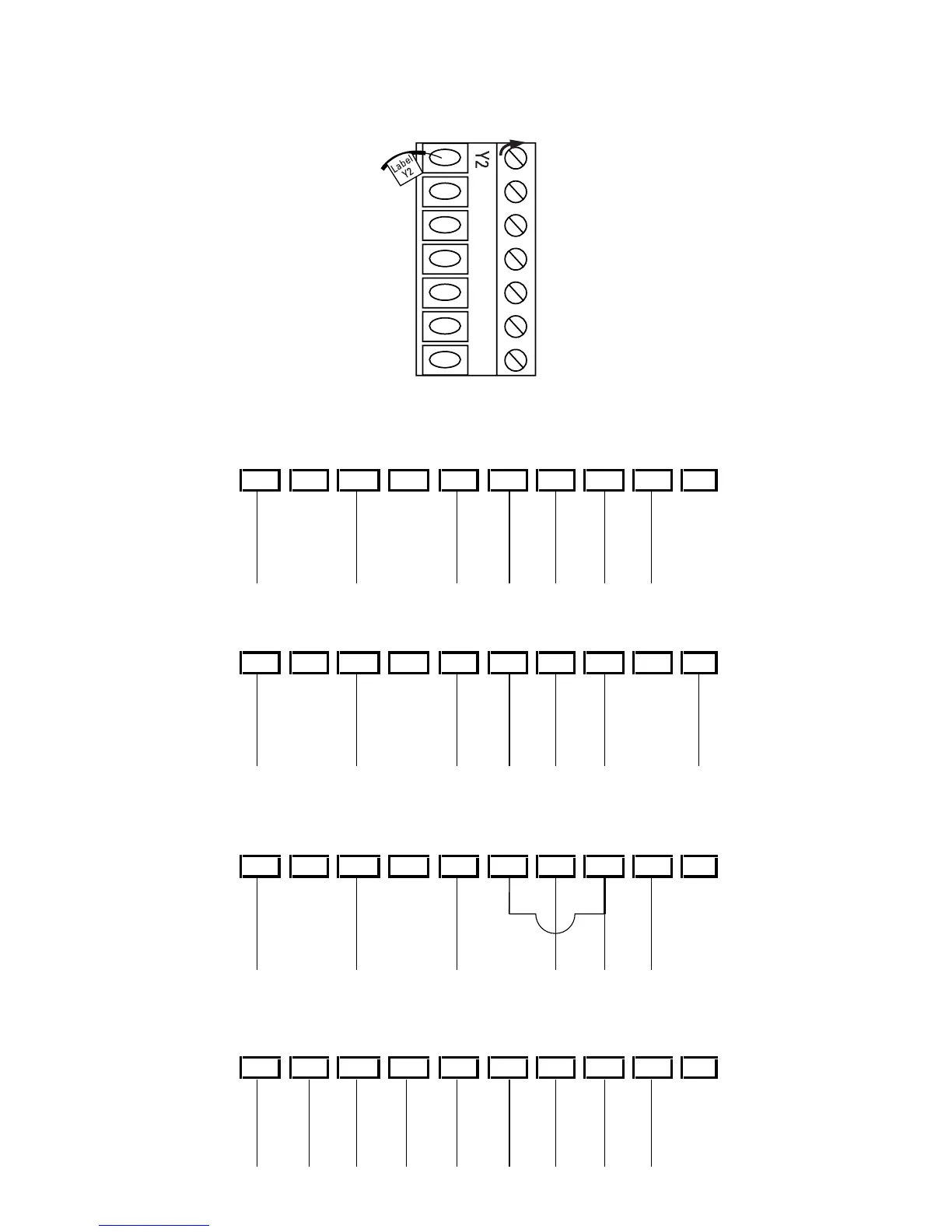

9620 WIRING SAMPLE #1
Y1 E G W2CLRY2
Typical heat pump with cool active reversing valve and auxiliary/emergency heat.
OB
B
9620 WIRING SAMPLE #2
CLRY2Y1EGW2O
Typical heat pump with heat active reversing valve and auxiliary/emergency heat.
RY2
Jumper
9620 WIRING SAMPLE #3
BY1 E G W2CL O
Typical heat pump with heat active reversing valve and auxiliary/emergency heat.
Does not have separate wire for emergency heat (jump W2 & E).
OB
9620 WIRING SAMPLE #4
CW2LRY2Y1 E G
Typical heat pump with cool active reversing valve, auxiliary/emergency heat
and second stage of cooling. System fault indicator connected (L terminal).
FIGURE 4
