5-
3

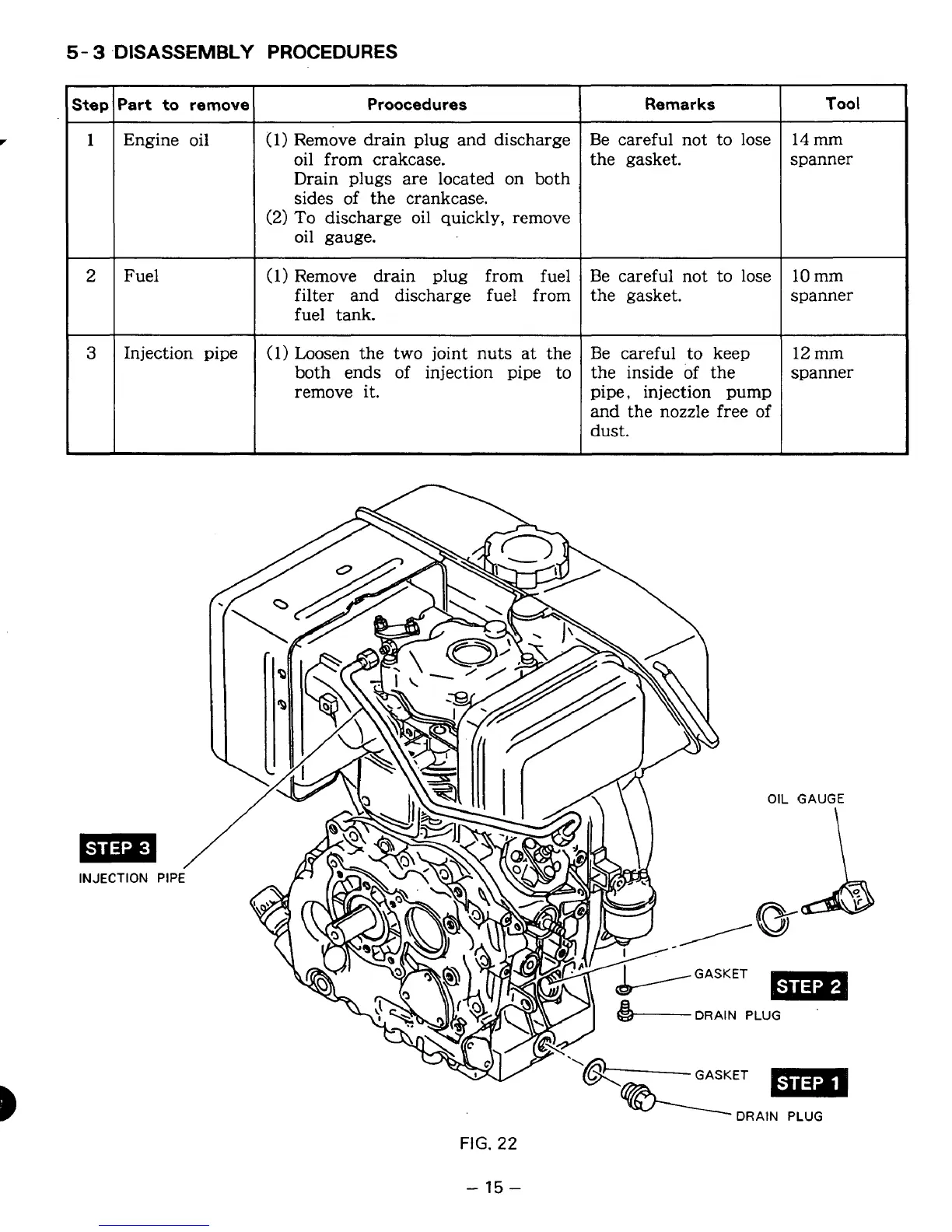

-DISASSEMBLY PROCEDURES
-
Step
1
-
2
-
3
Engine oil
Proocedures
(1)
Remove drain plug and discharge
oil from crakcase.
Drain plugs are located on both
sides of the crankcase.
(2)
To
discharge oil quickly, remove
oil gauge.
Remarks
Be careful not to lose
the gasket.
Fuel
Injection pipe
(1)
Remove drain plug from fuel
filter and discharge fuel from
fuel tank.
(1)
Loosen the two joint nuts at the
both ends of injection pipe
to
remove it.
Be careful not to lose
the gasket.
Be careful
to
keep
the inside of the
pipe, injection pump
and the nozzle free of
dust.
Tool
14
mm
spanner
10
mm
spanner
12 mm
spanner
INJECTION
PIPE
/
-
15
-
To Next Page
