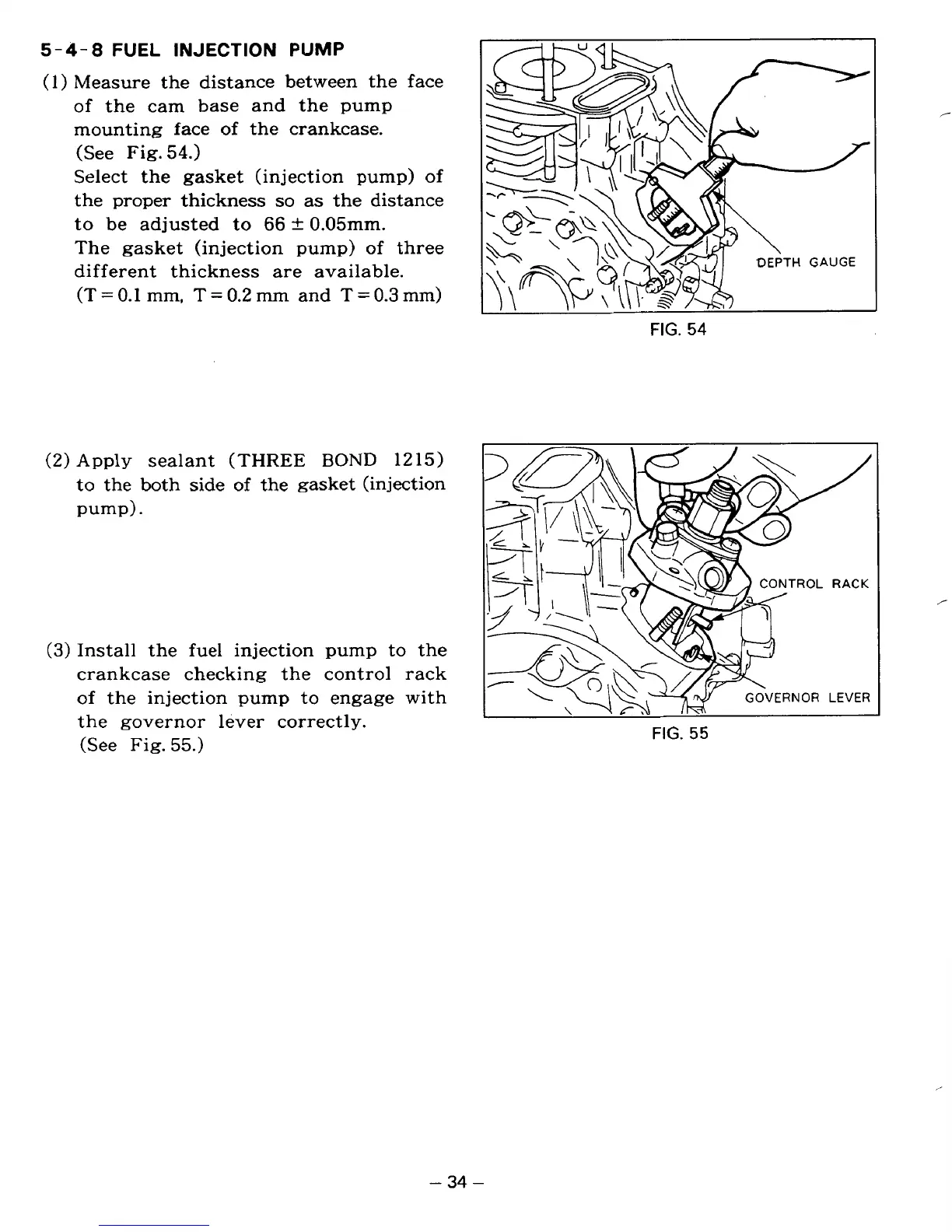

5-4-8
FUEL INJECTION PUMP
(1)
Measure the distance between the face
of
the cam base and the pump
mounting face of the crankcase.
(See
Fig.
54.)
Select the gasket (injection pump)
of
the proper thickness
so
as the distance
to be adjusted to
66
-+
0.05mm.
The gasket (injection pump) of three
different thickness are available.
(T
=
0.1
mm,
T
=
0.2
mm
and
T
=
0.3
mm)
(2)
Apply
sealant
(THREE BOND
1215)
to the both side
of
the gasket (injection
pump).
(3)
Install the fuel injection pump to the
crankcase checking the control rack
of the injection pump to engage with
the governor lever correctly.
(See Fig.
55.)
FIG.
54
/-
FIG.
55
,
-
34
-
