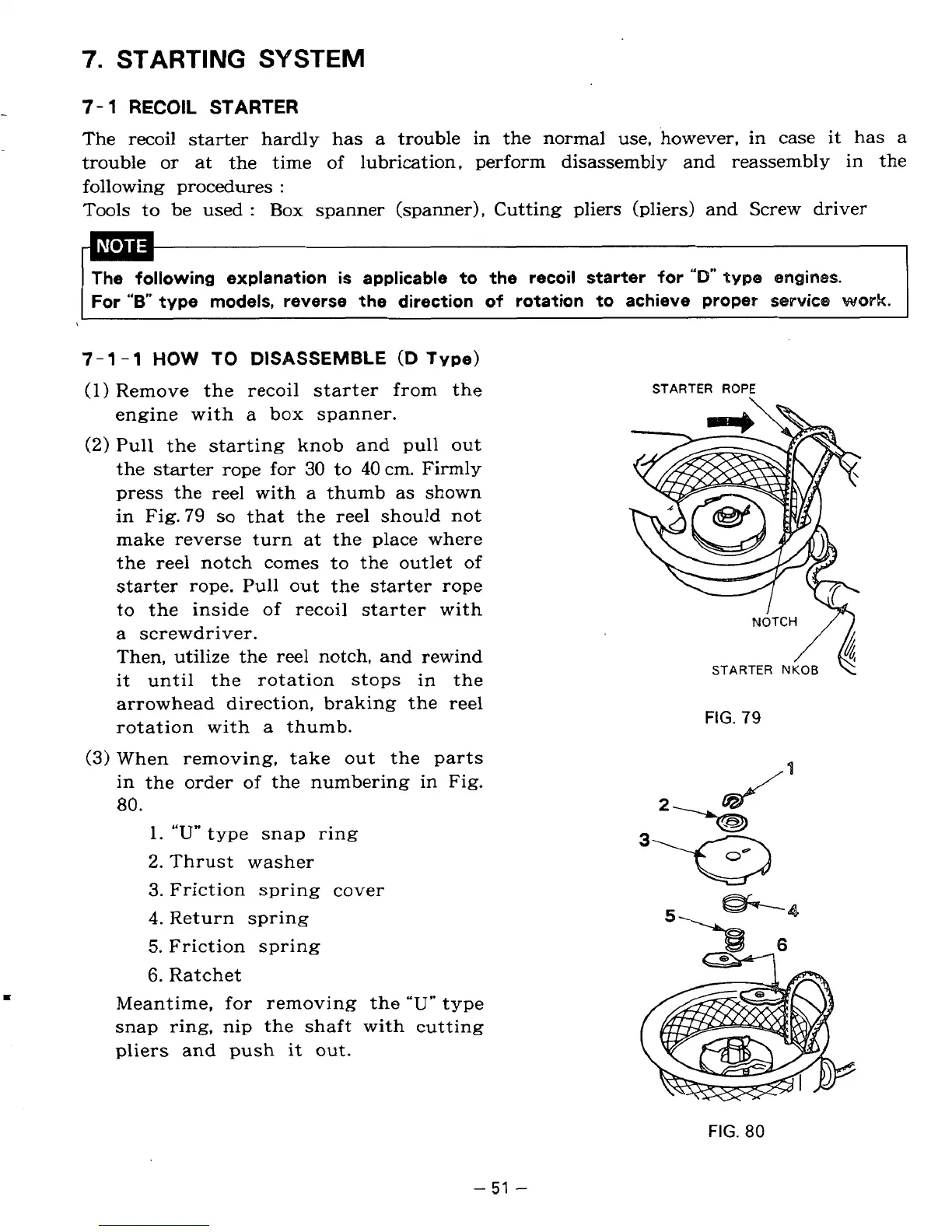

7.
STARTING
SYSTEM
-
7-
1
RECOIL
STARTER
I
The recoil starter hardly has a trouble in the normal use, .however, in case it has a
trouble
or
at the time
of
lubrication, perform disassembly and reassembly in the
following procedures
:
Tools to be used
:
Box
spanner (spanner), Cutting pliers (pliers) and Screw driver
The following explanation is applicable to the recoil starter for
“D”
type
engines.
For
“B”
type models, reverse the direction
of
rotation to achieve proper service
work.
7-1
-
1
HOW
TO
DISASSEMBLE
(D
Type)
(1)
Remove the recoil starter
from
the
engine with a
box
spanner.
(2)
Pull the starting knob and pull out
the starter rope
for
30
to
40
cm. Firmly
press the reel with a thumb as shown
in Fig.
79
so
that the reel should not
make reverse turn at the place where
the reel notch comes to the outlet
of
starter rope. Pull out the starter rope
to the inside of recoil starter with
a screwdriver.
Then, utilize the reel notch, and rewind
it until the rotation stops in the
arrowhead direction, braking the reel
rotation with a thumb.
(3)
When removing, take out the parts
in the order
of
the numbering in Fig.
80.
1.
“U”
type snap ring
2.
Thrust washer
3.
Friction spring cover
4.
Return spring
5.
Friction spring
6.
Ratchet
Meantime,
for
removing the
“U”
type
snap ring, nip the shaft with cutting
pliers and push
it
out.
STARTER
ROPE
/q
STARTER
NKOB
FIG.
79
2
FIG.
80
-
51
-
