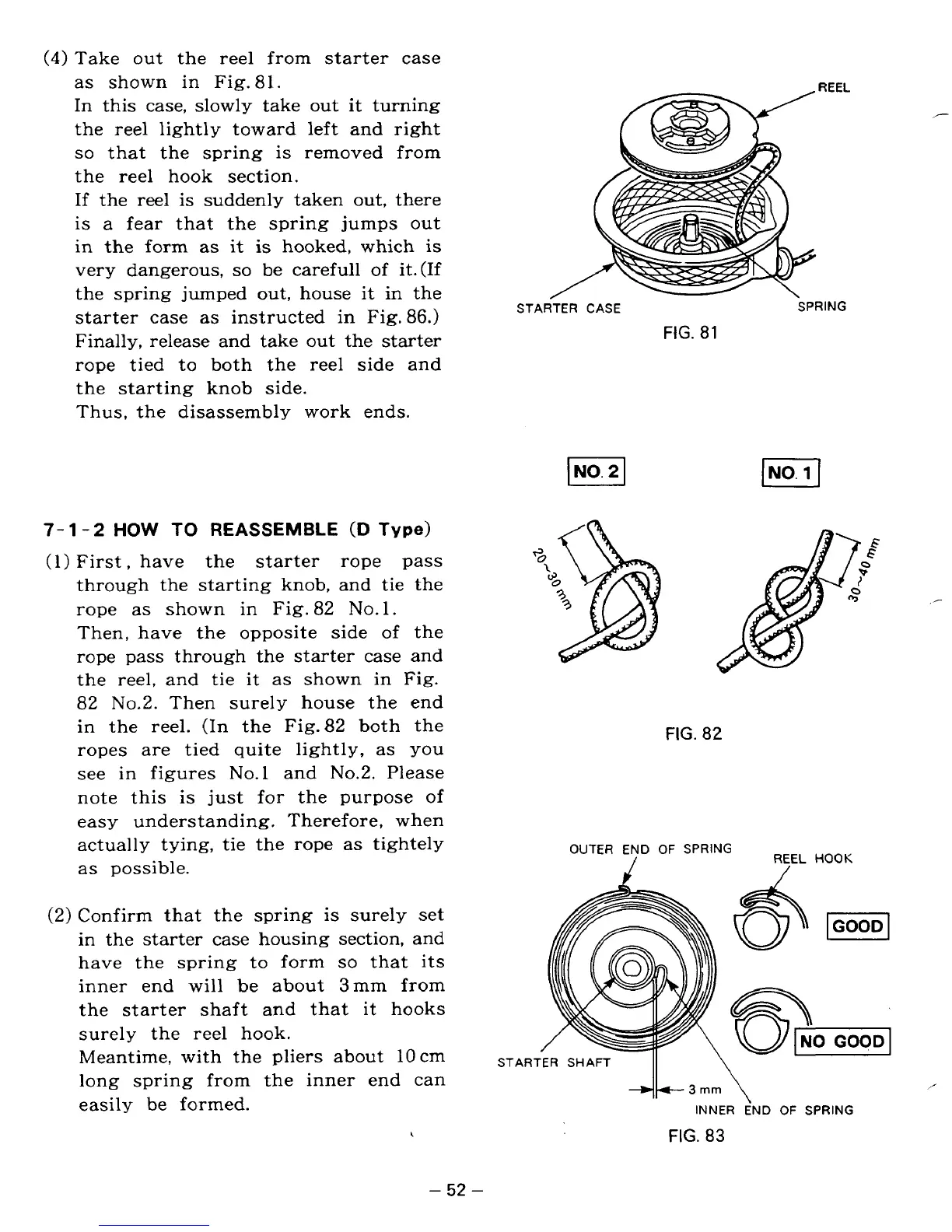

(4)
Take out the reel from starter case
as shown in Fig.
81.
REEL
In this case, slowly take out it turning
the reel lightly toward left and right
so
that the spring is removed from
the reel hook section.
If the
reel
is suddenly taken out, there
is a fear that the spring jumps out
in the
form
as
it
is
hooked, which
is
very dangerous,
so
be careful1 of it. (If
the spring jumped out, house it in the
starter case as instructed in Fig.
86.)
Finally, release and take out the starter
rope tied to both the reel side and
the starting knob side.
STARTER CASE SPRING
FIG.
81
Thus, the disassembly
work
ends.
INO.
2
I
7-
1-2
HOW
TO
REASSEMBLE
(D
Type)
(1)
First, have the starter rope pass
through the starting knob, and tie the
rope as shown in Fig.
82
No.
1.
Then, have the opposite side of the
rope pass through the starter case and
the reel, and tie
it
as shown in Fig.
82
No.2.
Then surely house the end
in the reel. (In the Fig.82 both the
ropes are tied quite lightly, as you
see in figures
No.1
and
No.2.
Please
note this is just for the purpose
of
easy understanding. Therefore, when
actually tying, tie the rope as tightely
as possible.
(2)
Confirm that the spring is surely set
in the starter case housing section, and
have the spring to form
so
that
its
inner end will
be
about 3mm
from
the starter shaft and that
it
hooks
surely the reel hook.
Meantime, with the pliers about 10 cm
long spring from the inner end can
easily be formed.
STAR1
FIG.
82
OUTER END
OF
SPRING
REEL
HOOK
/
'ER
SHAFT
11
/
INNER END
OF
SPRING
FIG.
83
-
52
-
