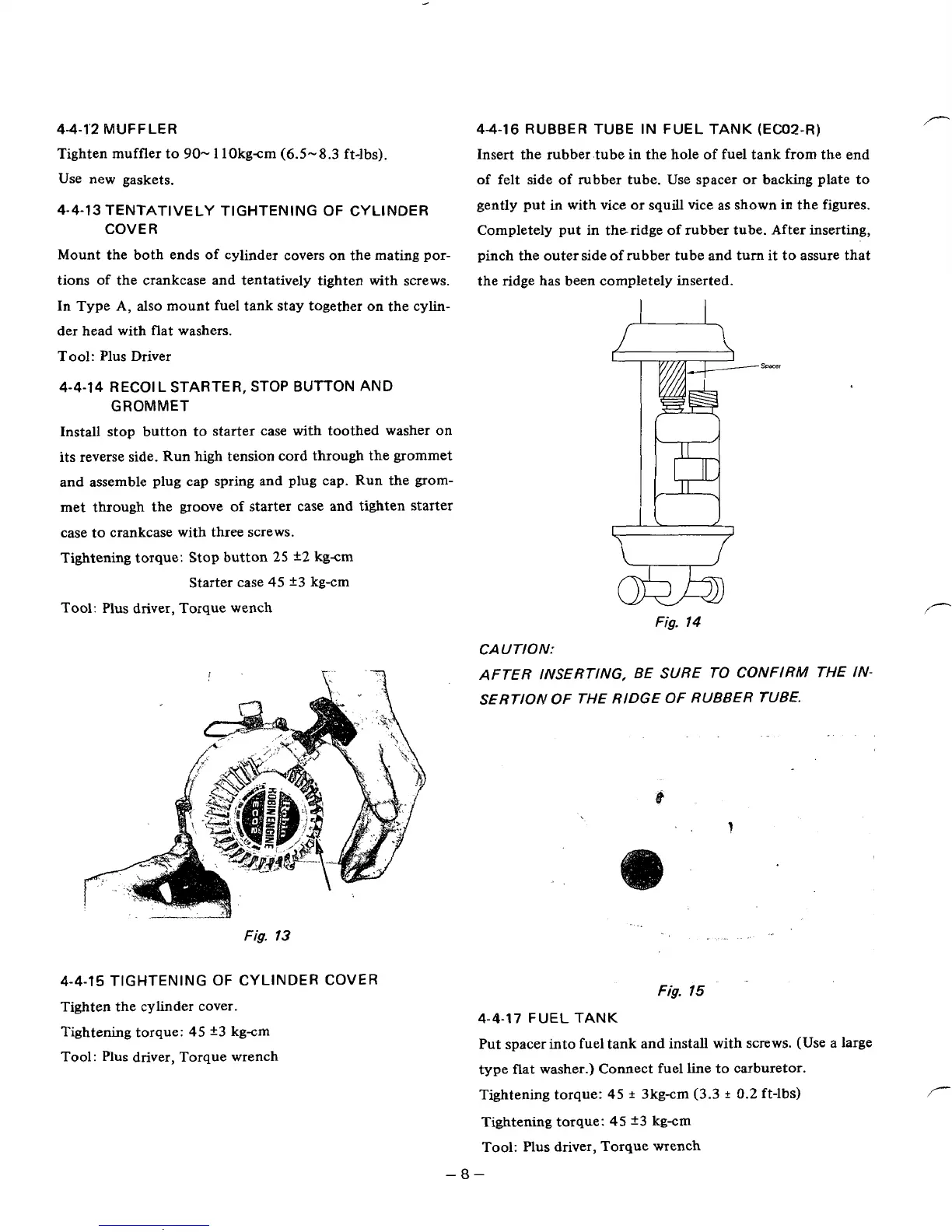

4-4-1'2
MUFFLER
Tighten muffler to
90-
1
lOkgzm
(6.5-8.3
ft-lbs).
Use new gaskets.
4-4-13
TENTATIVELY TIGHTENING OF CYLINDER
COVER
Mount the both ends of cylinder covers on the mating por-
tions of the crankcase and tentatively tighten with screws.
In Type A,
also
mount fuel tank stay together on the cylin-
der head with flat washers.
Tool: Plus Driver
4-4-14
RECOIL STARTER, STOP BUTTON
AND
GROMMET
Install stop button to starter case with toothed washer on
its
reverse side. Run high tension cord through the grommet
and assemble plug cap spring and plug cap. Run the grom-
met through the groove
of
starter case and tighten starter
case to crankcase with three screws.
Tightening torque: Stop button
25
+-2
kgcm
Starter case
45
+3 kg-cm
Tool: Plus driver, Torque wench
A-
.
,?
4-4-16
RUBBER TUBE
IN
FUEL TANK (EC02-R)
Insert the rubber tube in the hole of fuel tank from the end
of felt side
of
rubber tube. Use spacer or backing plate to
gently put in with vice or
squill
vice as shown in the figures.
Completely put in theridge of rubber tube. After inserting,
pinch the outer side
of
rubber tube and turn it to assure that
the ridge has been completely inserted.
Fig.
14
CA
U
TI0
N:
AFTER INSERTING,
BE
SURE TO CONFIRM THE
IN-
SERTION OF THE RIDGE
OF
RUBBER
TUBE.
4-4-15
TIGHTENING
OF
CYLINDER COVER
Tighten the cylinder cover.
Tightening torque:
45
*3
kg-cm
Tool: Plus driver, Torque wrench
Fig.
15
4-4-17
FUEL
TANK
Put spacer into fuel tank and install with screws. (Use a large
type flat washer.) Connect fuel line to carburetor.
Tightening torque:
45
*
3kg-cm
(3.3
*
0.2
ft-lbs)
Tightening torque:
45
k3
kg-cm
Tool: Plus driver, Torque wrench
-
8-
