(2) At lower engine revolution, when the flywheel reached the ignition point the low speed ignition timing
control circuit operates to run the base current I
3 to turn the signal transistor A “ON” allowing the
current I
1 to bypass as current I4.
At this moment the power transistor turns “OFF” and the current I
2 is abruptly shut off resulting in the
high voltage generated in the secondary coil which produces sparks at the spark plug.
(3) At higher engine revolution, the advancing control circuit operates at the ignition timing to run the
base current I
5 to turn the signal transistor B “ON” allowing the current I1 to bypass as current I6.
At this moment the power transistor turns “OFF” and the current I
2 is abruptly shut off resulting in the
high voltage generated in the secondary coil which produces sparks at the spark plug.
The operating timing of the advancing control circuit advances in accordance with the increase of
engine speed resulting in the advancing of ignition timing as shown in Fig. 6-1(b).

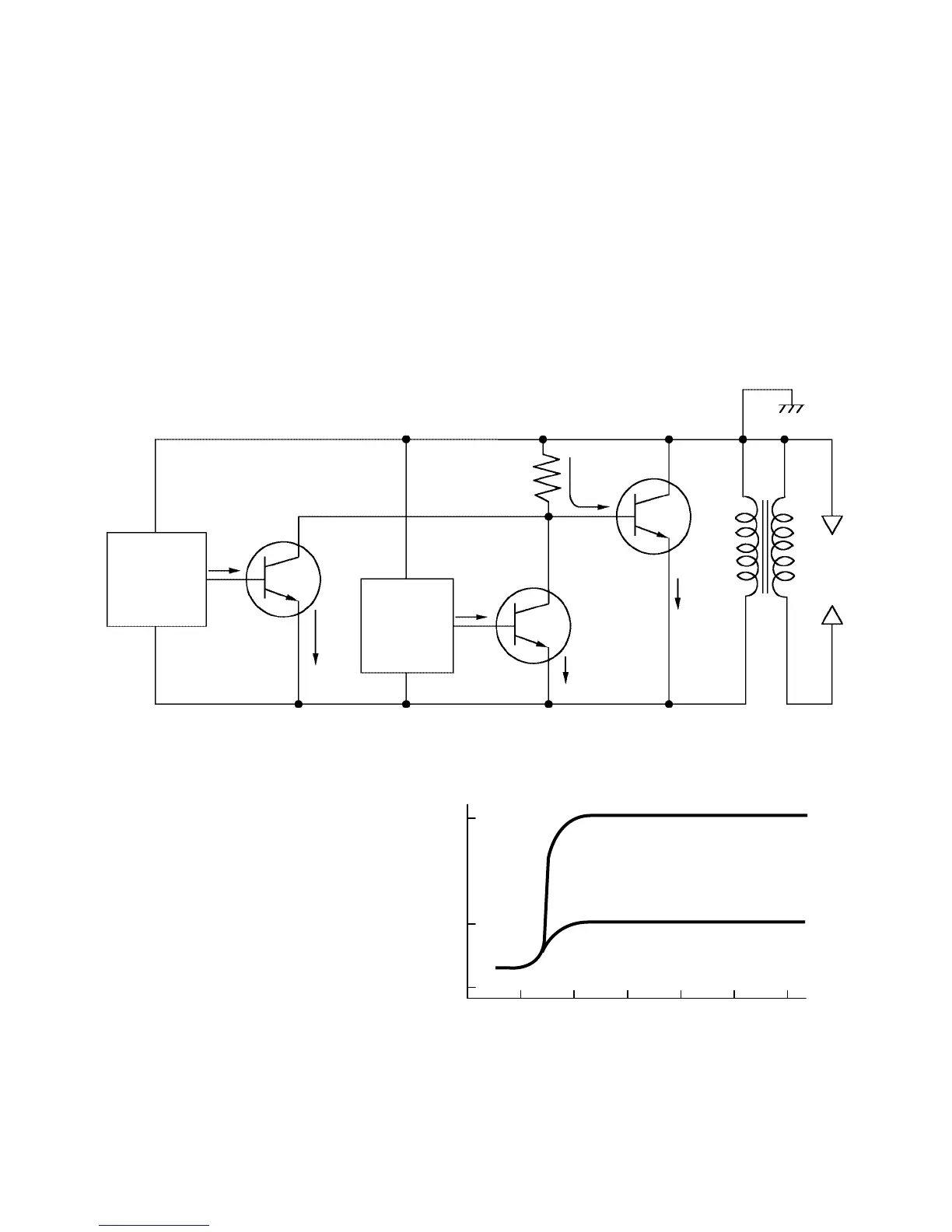

Fig. 6-1b
