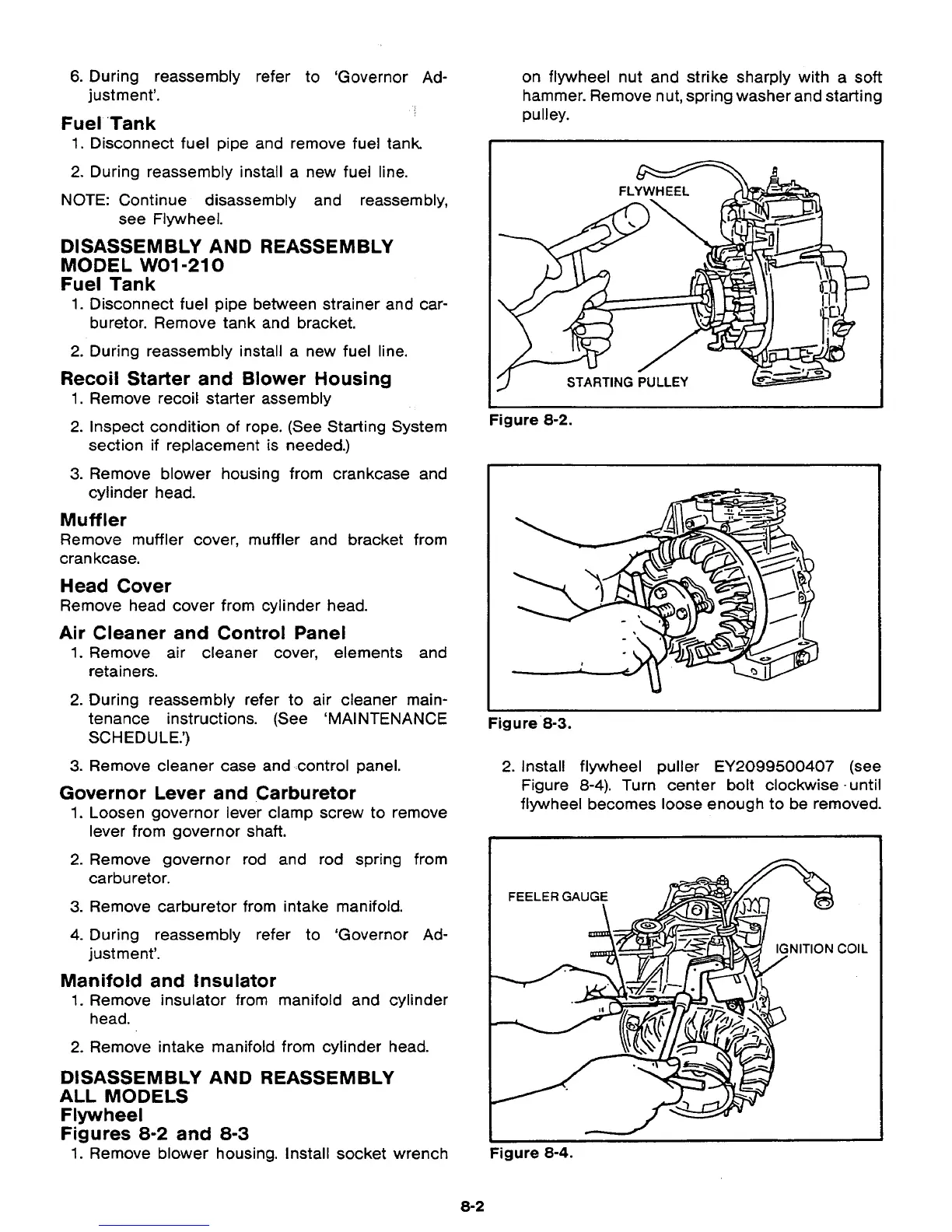

6.
During reassembly refer to 'Governor Ad-
justment'.
Fuel 'Tank
1.
Disconnect fuel pipe and remove fuel tank.
2.
During reassembly install a new fuel line.
NOTE: Continue disassembly and reassembly,
DISASSEMBLY AND REASSEMBLY
MODEL
WO1-210
Fuel Tank
see Flywheel.
1.
Disconnect fuel pipe between strainer and car-
buretor. Remove tank and bracket.
2.
During reassembly install a new fuel line.
Recoil Starter and Blower Housing
1.
Remove recoil starter assembly
2.
Inspect condition of rope. (See Starting System
section
if
replacement
is
needed.)
3.
Remove blower housing from crankcase and
cylinder head.
Muffler
Remove muffler cover, muffler and bracket from
crankcase.
Head Cover
Remove head cover from cylinder head.
Air Cleaner and Control Panel
1.
Remove air cleaner cover, elements and
retainers.
2.
During reassembly refer to air cleaner main-
tenance instructions. (See 'MAINTENANCE
SCHEDULE.')
3.
Remove cleaner case and control panel.
Governor Lever and Carburetor
1.
Loosen governor lever clamp screw to remove
2. Remove governor rod and rod spring from
lever from governor shaft.
carburetor.
3.
Remove carburetor from intake manifold.
4.
During reassembly refer to 'Governor Ad-
justment'.
Manifold and Insulator
1.
Remove insulator from manifold and cylinder
head.
2.
Remove intake manifold from cylinder head.
DISASSEMBLY
AND
REASSEMBLY
ALL MODELS
Flywheel
Figures
8-2
and
8-3
1.
Remove blower housing. Install socket wrench
on flywheel nut and strike sharply with
a
soft
hammer. Remove nut, spring washerand starting
pulley.
Figure
8-2.
'ig
u
re
8-3.
2. Install flywheel puller EY2099500407 (see
Figure 8-4). Turn center bolt clockwise -until
flywheel becomes loose enough to be removed.
COIL
I
1
Figure
8-4.
,"-
r
8-2
