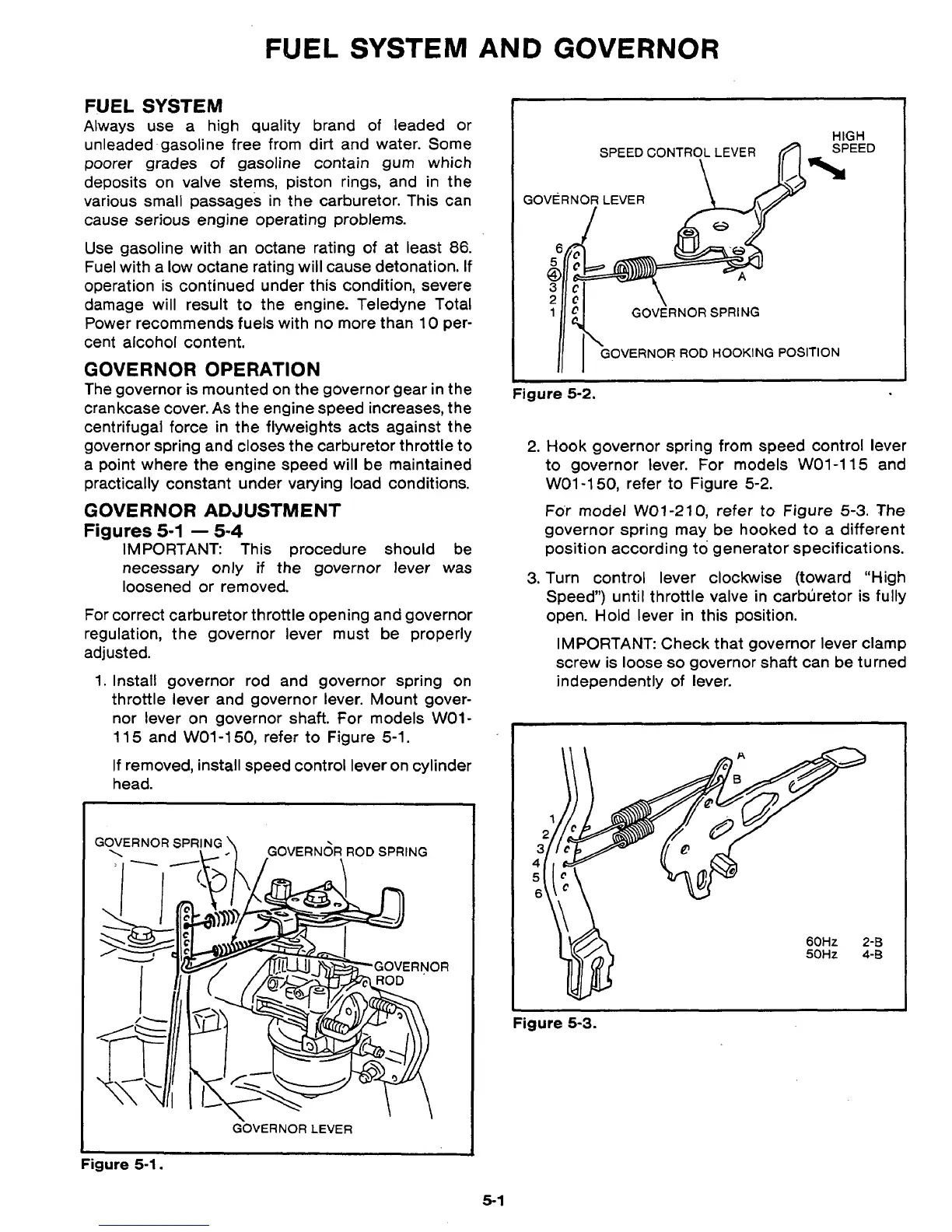

FUEL
SYSTEM
AND
GOVERNOR
FUEL
SYSTEM
Always use a high quality brand of leaded or
unleaded gasoline free from dirt and water. Some
poorer grades of gasoline contain gum which
deposits on valve stems, piston rings, and in the
various small passages in the carburetor. This can
cause serious engine operating problems.
Use
gasoline with an octane rating of at least
86.
Fuel with a
low
octane rating will cause detonation. If
operation
is
continued under this condition, severe
damage will result to the engine. Teledyne Total
Power recommends fuels with no more than
10
per-
cent alcohol content.
GOVERNOR
OPERATION
The governor is mounted on the governor gear in the
crankcase cover.
As
the engine speed increases, the
centrifugal force in the flyweights acts against the
governor spring and closes the carburetor throttle to
a point where the engine speed will be maintained
practically constant under varying load conditions.
GOVERNOR ADJUSTMENT
Figures
5-1
-
5-4
IMPORTANT: This procedure should be
necessary only
if
the governor lever was
loosened or removed.
For correct carburetor throttle opening and governor
regulation, the governor lever must be properly
adjusted.
1. Install governor rod and governor spring on
throttle lever and governor lever. Mount gover-
nor lever on governor shaft. for models
WO1-
1
15 and WO1-150, refer to Figure 5-1.
If
removed, install speed control lever on cylinder
head.
\
SPRY
>
GOVERN~R
ROD
SPRING
:I-
/
/
\
GOVERNOR
LEVER
HIGH
SPEED
CONTROL
LEVER
SPEED
GOV~RNOR SPRING
GOVERNOR ROD HOOKING
POSITION
2.
Hook
governor spring from speed control lever
to governor lever. For models WO1-115 and
WO1-150,
refer to Figure
5-2.
Fo’r
model
WO1-2
10,
refer to Figure
5-3.
The
governor spring may be hooked to a different
position according
to
generator specifications.
3.
Turn control lever clockwise (toward “High
Speed”) until throttle valve in carburetor is fully
open. Hold lever in this position.
IMPORTANT: Check that governor lever clamp
screw is loose
so
governor shaft can be turned
independently of lever.
-
Figure
5-3.
60Hz
2-6
50Hz
4-5
Figure
5-1.
5-1
