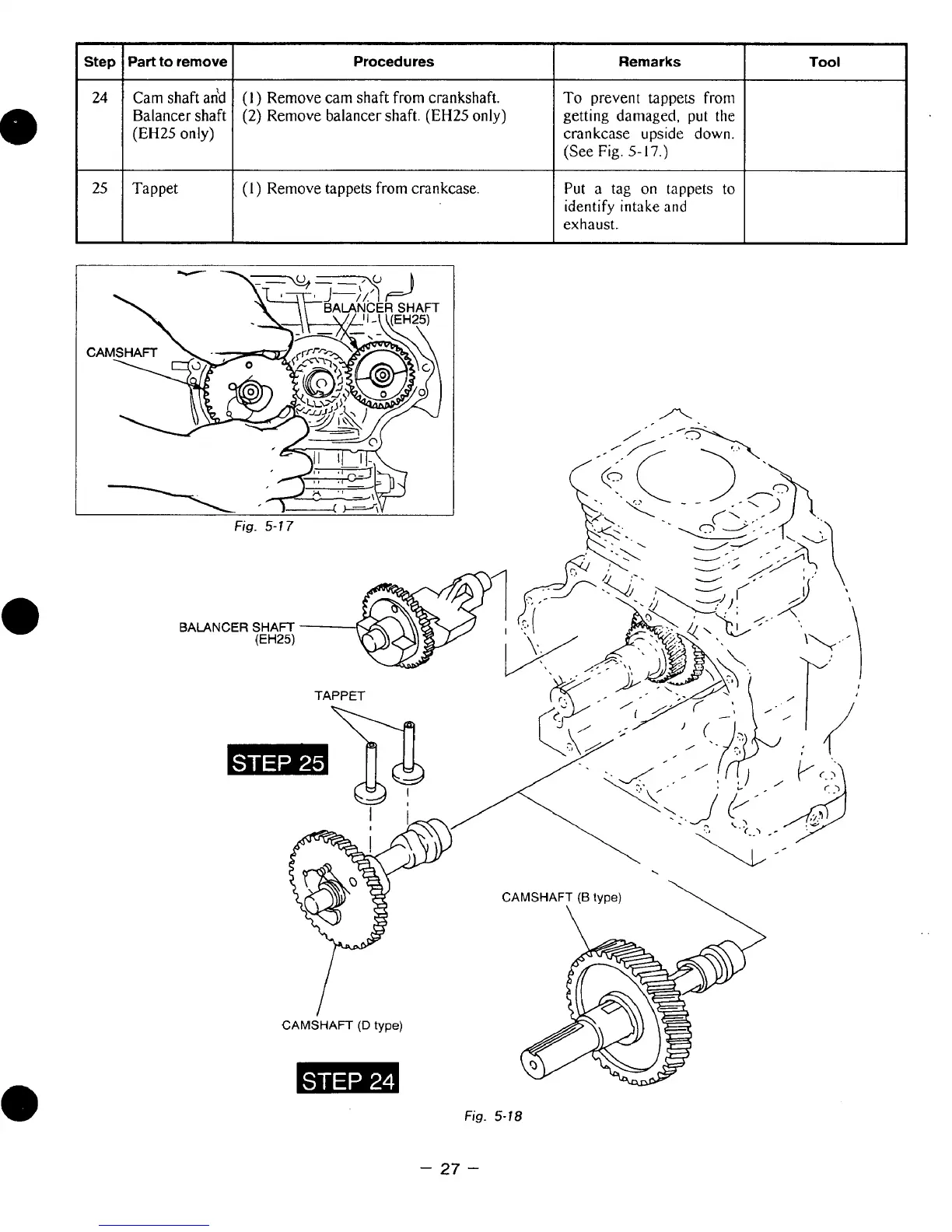

Step
24
25
-
Part to remove I Procedures
Cam shaft add (I) Remove cam shaft from crankshaft.
Balancer shaft
(2) Remove balancer shaft. (EH25 only)
(EH25 only)
Tappet (1) Remove tappets from crankcase.
I
Remarks Tool
To prevent tappets from
getting damaged, put the
crankcase upside down.
(See
Fig. 5- 17.)
Put a tag on tappets to
identify intake and
exhaust.
- 27 -
