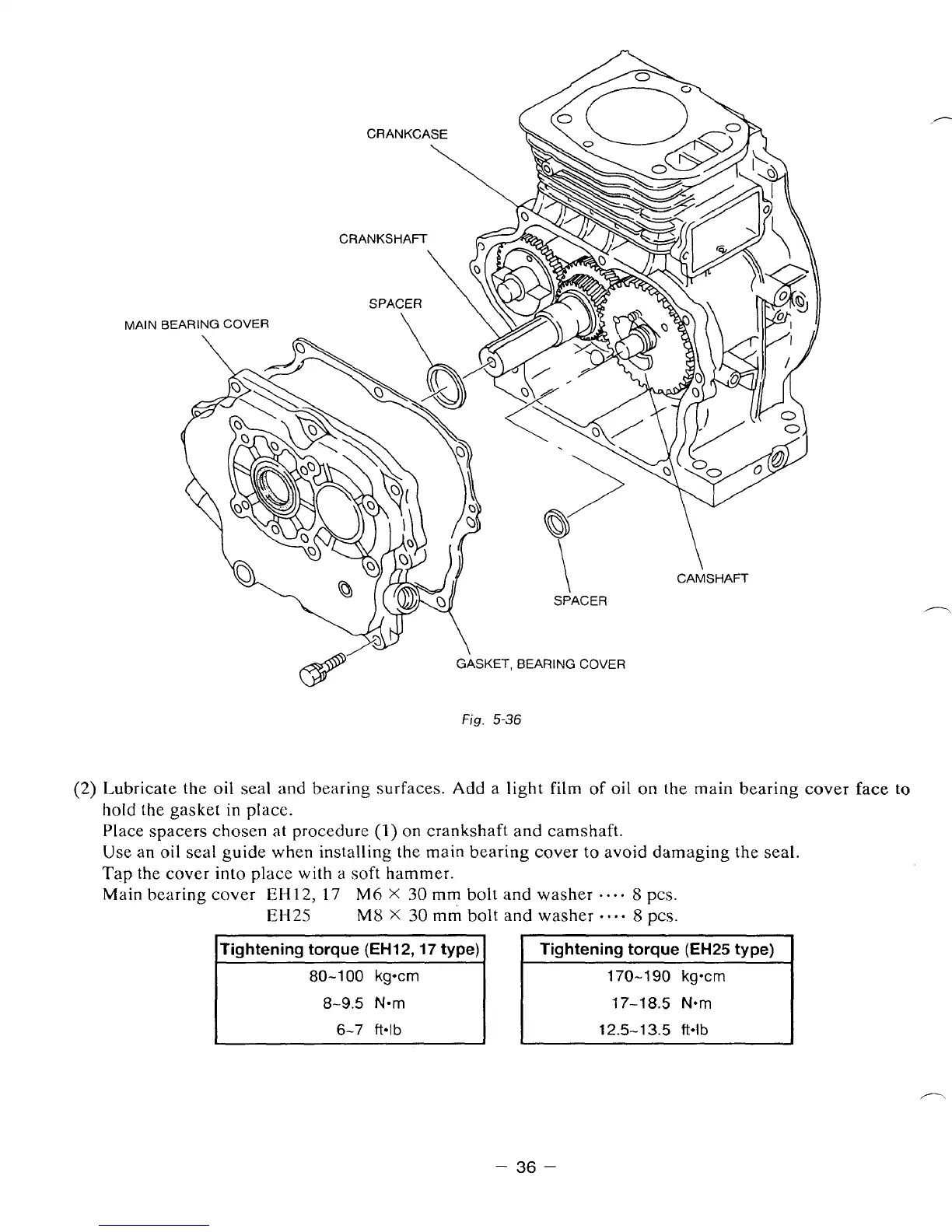

Fig. 5-36
(2) Lubricate the oil seal and bearing surfaces. Add a light film of oil on the main bearing cover face to
hold the gasket in place.
Place spacers chosen
at procedure (1) on cTankshaft and camshaft.
Use an oil seal guide when installing the main bearing cover to avoid damaging the seal.
Tap the cover into place with a soft hammer.
Main bearing cover
E1412, 17 M6 X 30 mm bolt and washer -... 8 pcs.
Et4 2s M8 X 30 mm bolt and washer .... 8 pcs.
Tightening torque (EH12,17 type) Tightening torque (EH25 type)
80-1
00 kgcm
17-1 8.5 Nom 8-9.5 Nom
170-1 90 kgwn
6-7 ft*lb
12.5-13.5 ft4b
.
I
1
- 36 -
