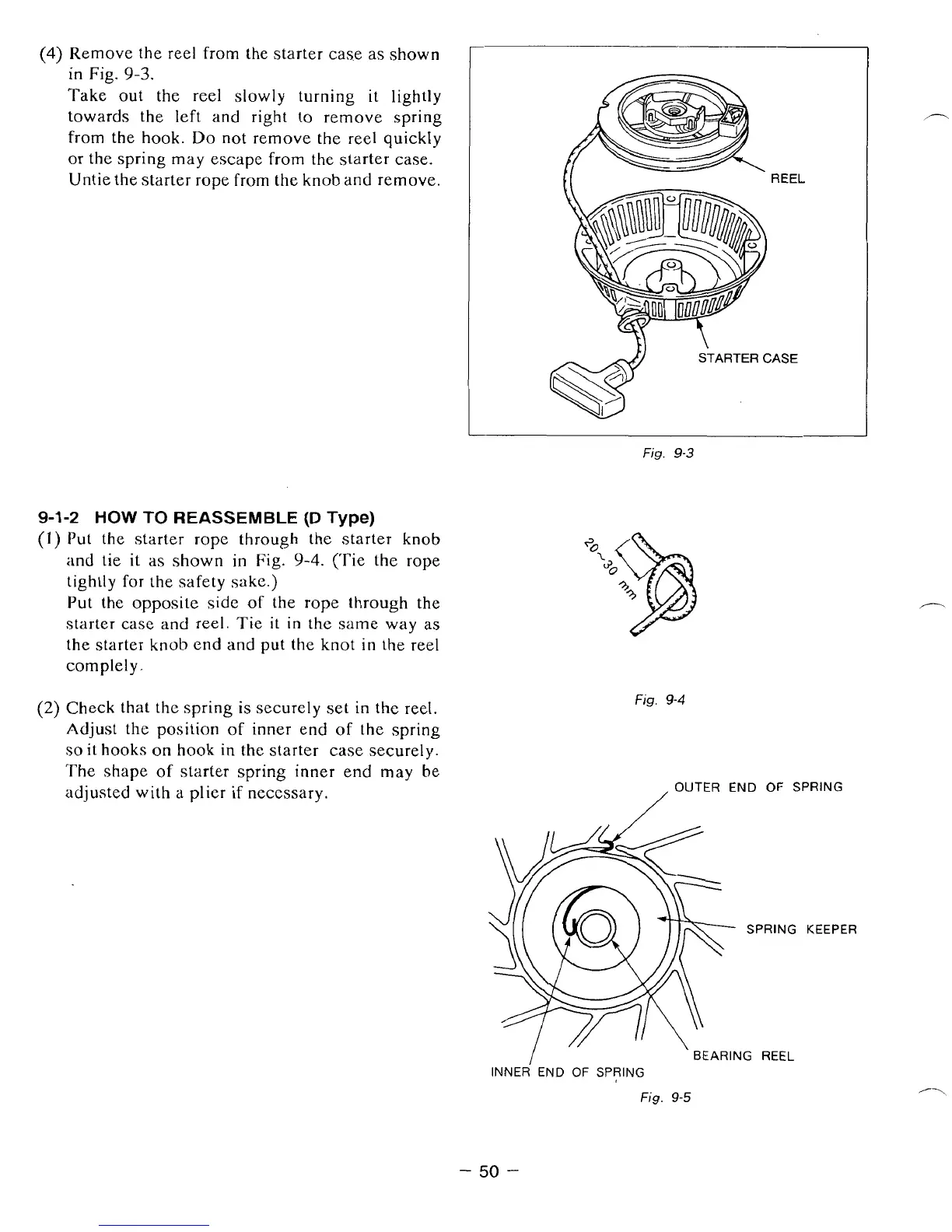

(4) Remove the reel from the starter case as shown
in Fig. 9-3.
Take out the reel slowly turning it lightly
towards the left
and right to remove spring
from the hook.
Do not remove the reel quickly
or the spring may escape from the starter case.
Untie the starter rope from the knob
and remove.
9-1-2 HOW TO REASSEMBLE (D Type)
(1) Put the starter rope through the starter knob
and tie it as shown in Fig. 9-4. (‘Tie the rope
tightly for the safety sake.)
Put the opposite side of the rope through the
starter case
and reel. Tie it in the same way as
the starter knob end and put the knot in the reel
complely.
(2) Check that the spring is securely set in the reel.
Adjust the position
of inner end of the spring
so it hooks on hook in the starter case securely.
The shape
of starter spring inner end may be
adjusted
with a plier if necessary.
STARTERCASE
Fig. 9-3
Fig. 9-4
/
OUTER END OF SPRING
SPRING
/
..
‘ BEARING REEL
INNER END
OF SPRING
Fig. 9-5
KEEPER
- 50 -
