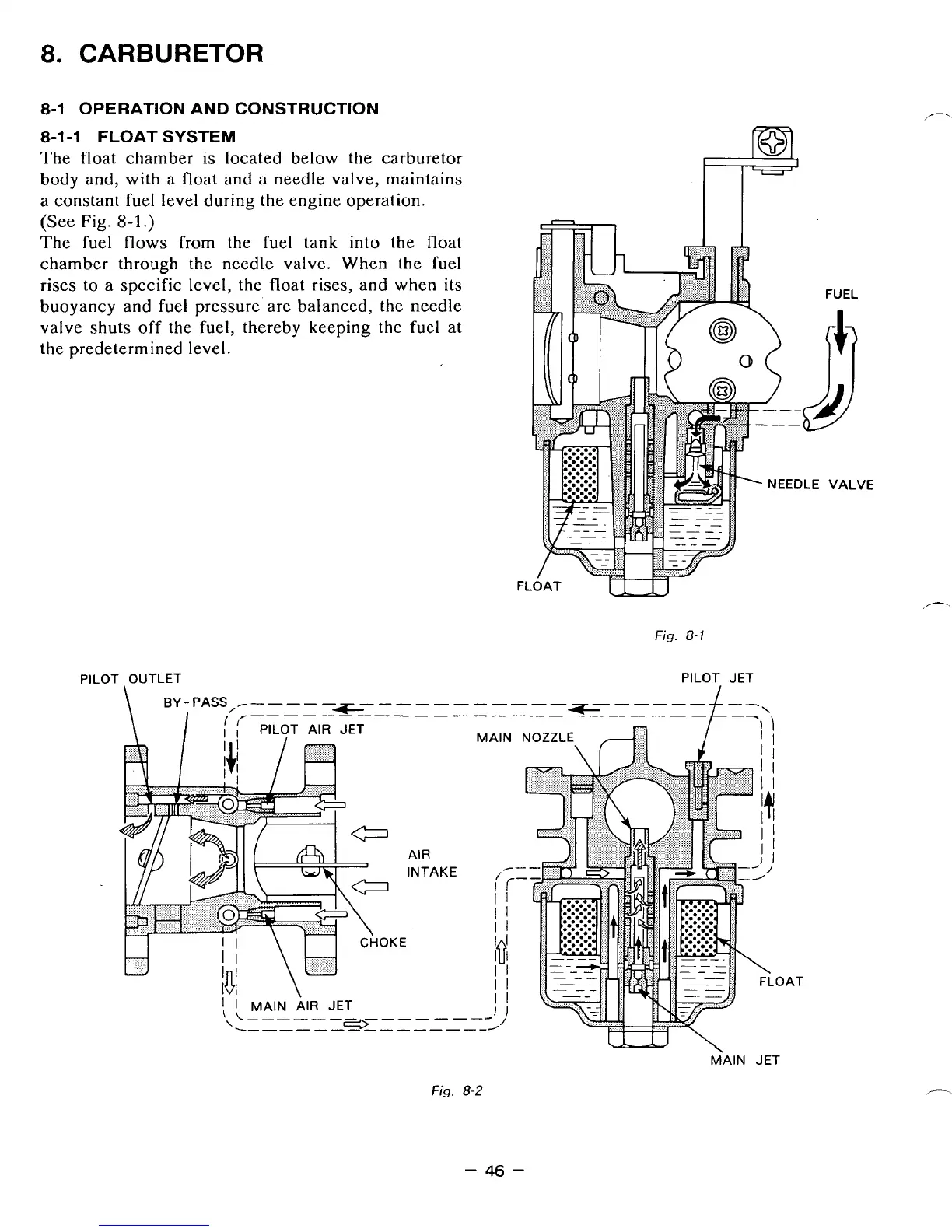

8. CARBURETOR
8-1 OPERATION AND CONSTRUCTION
8-1 -1 FLOAT SYSTEM
The float chamber is located below the carburetor
body and, with a float and a needle valve, maintains
a constant fuel level during the engine operation.
(See
Fig. 8-1.)
The fuel flows from the fuel tank into the float
chamber through the needle valve.
When the fuel
rises to a specific level, the float rises, and when its
buoyancy and fuel pressure are balanced, the needle
valve
shuts off the fuel, thereby keeping the fuel at
the predetermined level.
PILOT OUTLET
\ BY-
I
PASS,, - - - -
-a=- - -
I
AIR
INTAKE
! MAIN AIR JET
/"
- 46 -
