32
-

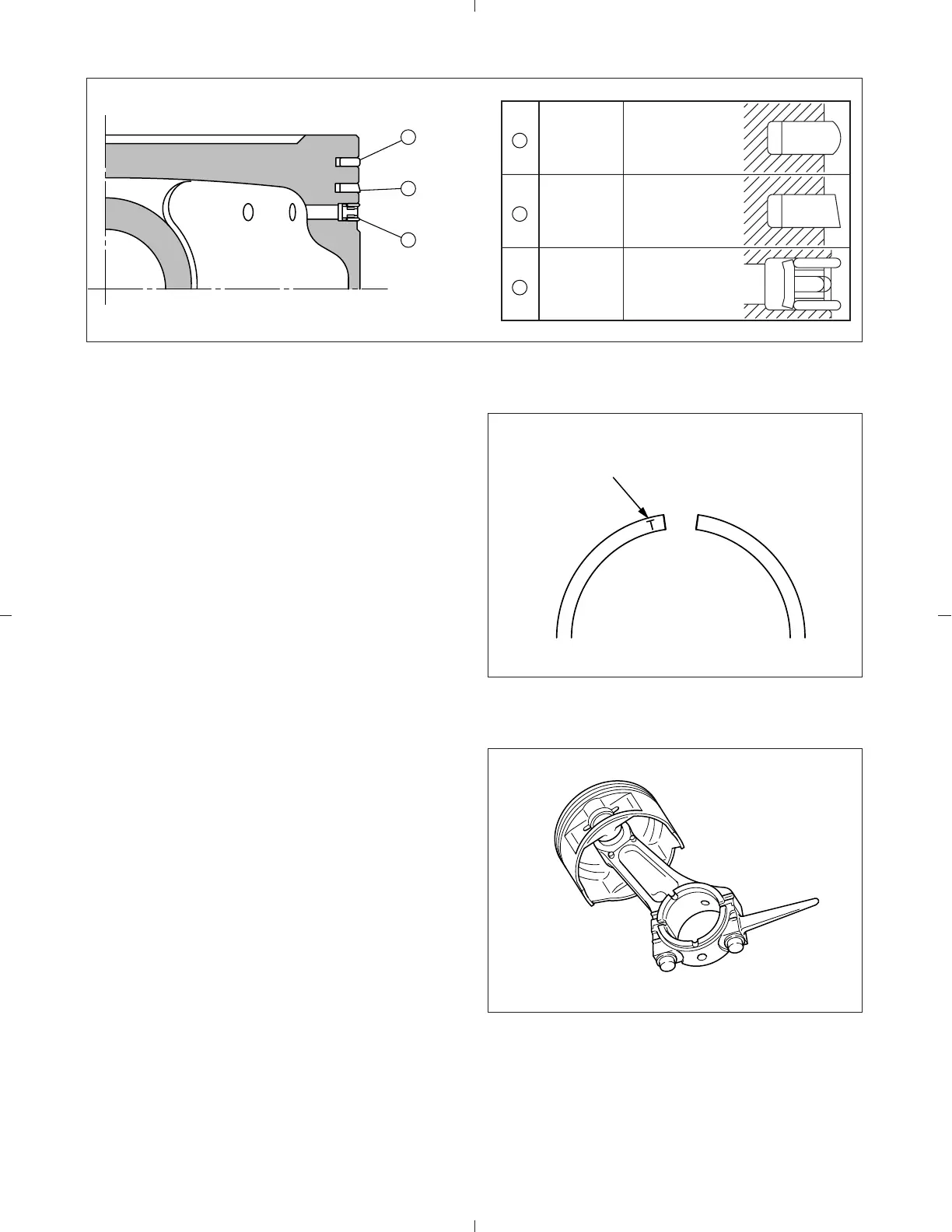

5-4-3 PISTON AND CONNECTING ROD
The direction of piston on connecting rod is not
specified.
Apply oil to the small end of connecting rod be-
fore assembling piston and piston pin.
Use clips on the both side of the piston pin to se-
cure piston pin in position.
Fig. 5-28
Fig. 5-27
MARK "T"
Fig. 5-26
TOP
RING
SECOND
RING
OIL
RING
1
2
3
BARREL
TAPER
COMBINATION
RING
1
2
3
