51
-

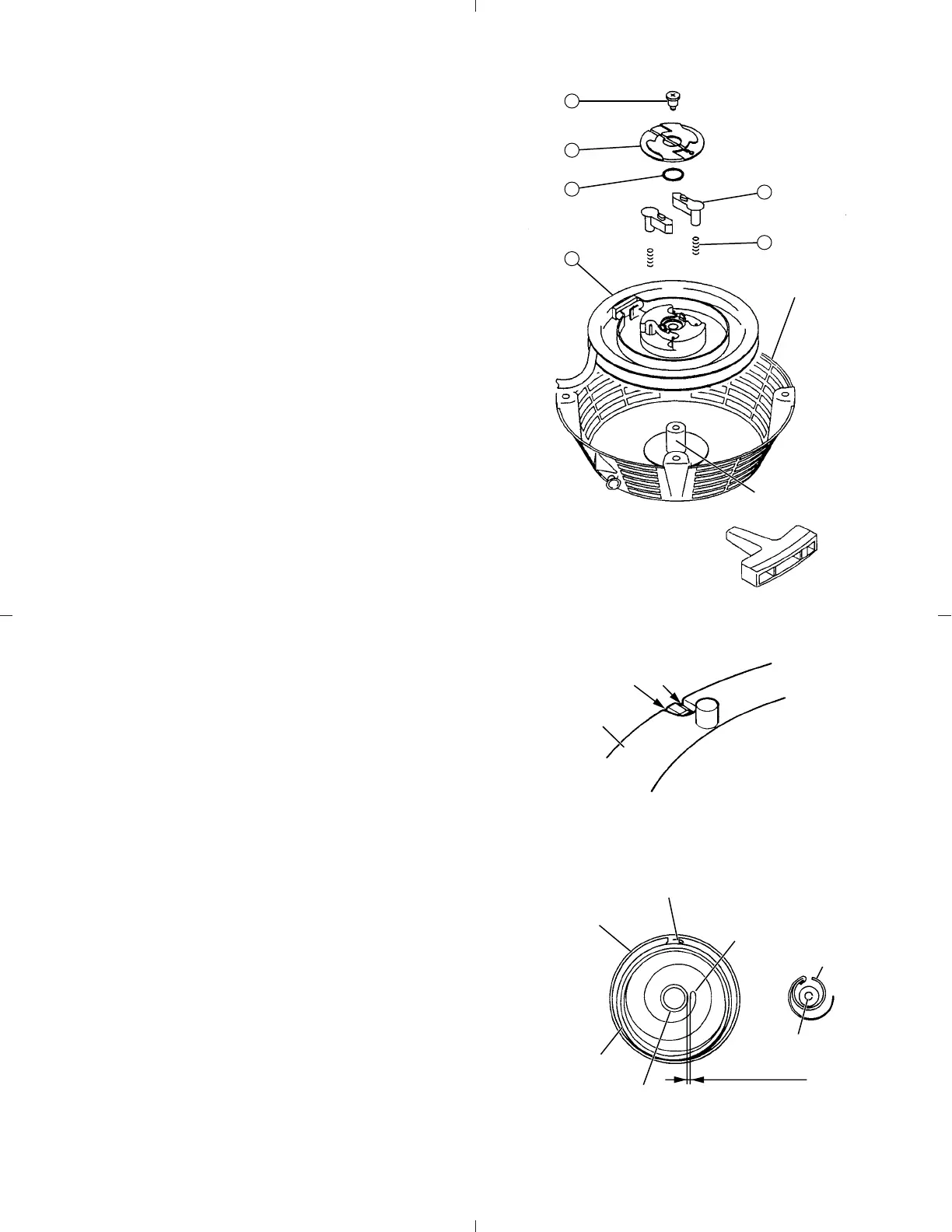

(5) Remove each part in accordance with Fig. 9-3
1. Center screw
2. Friction plate
3. Friction spring
4. Ratchet
5. Ratchet spring
6. Reel
Take out the reel slowly while turning it back
and forth gently, otherwise the spring may es-
cape from the case which may invite danger.
(If the spring escapes, put it in the housing by
following procedures shown in Fig. 9-8.)
Untie the starter rope knot at reel end and with-
draw it to complete disassembling.
9-1-2 HOW TO REASSEMBLE (D-Type)
(1) Cut off a part of the reel shown in Fig. 9-4 with
a nippers or a knife to form a which is required
when pre-winding the spring.
(2) Check that the spring is securely set in the
reel and form the spring end to measure 1mm
to 2 mm for clearance between inner end of
the spring and the reel bushing edge so that
the hook catches securely as shown in
Fig. 9-5.
The shape of spring inner end (approx. 10 cm
from the end) may be adjusted with a plier if
necessary.
(3) Apply a small amount of grease to the starter
shaft and to the spring.
STARTER CASE
STARTER SHAFT
(Grease is to be applied)
1
2
3
6
4
5
Cut out here
REEL
SPRING HOUSING
Apply grease
Outer end of spring
Inner end of spring
REEL BUSHING
1 mm to 2 mm
HOOK
STARTER SHAFT
Fig. 9-5
Fig. 9-4
Fig. 9-3
To Next Page
