52
-

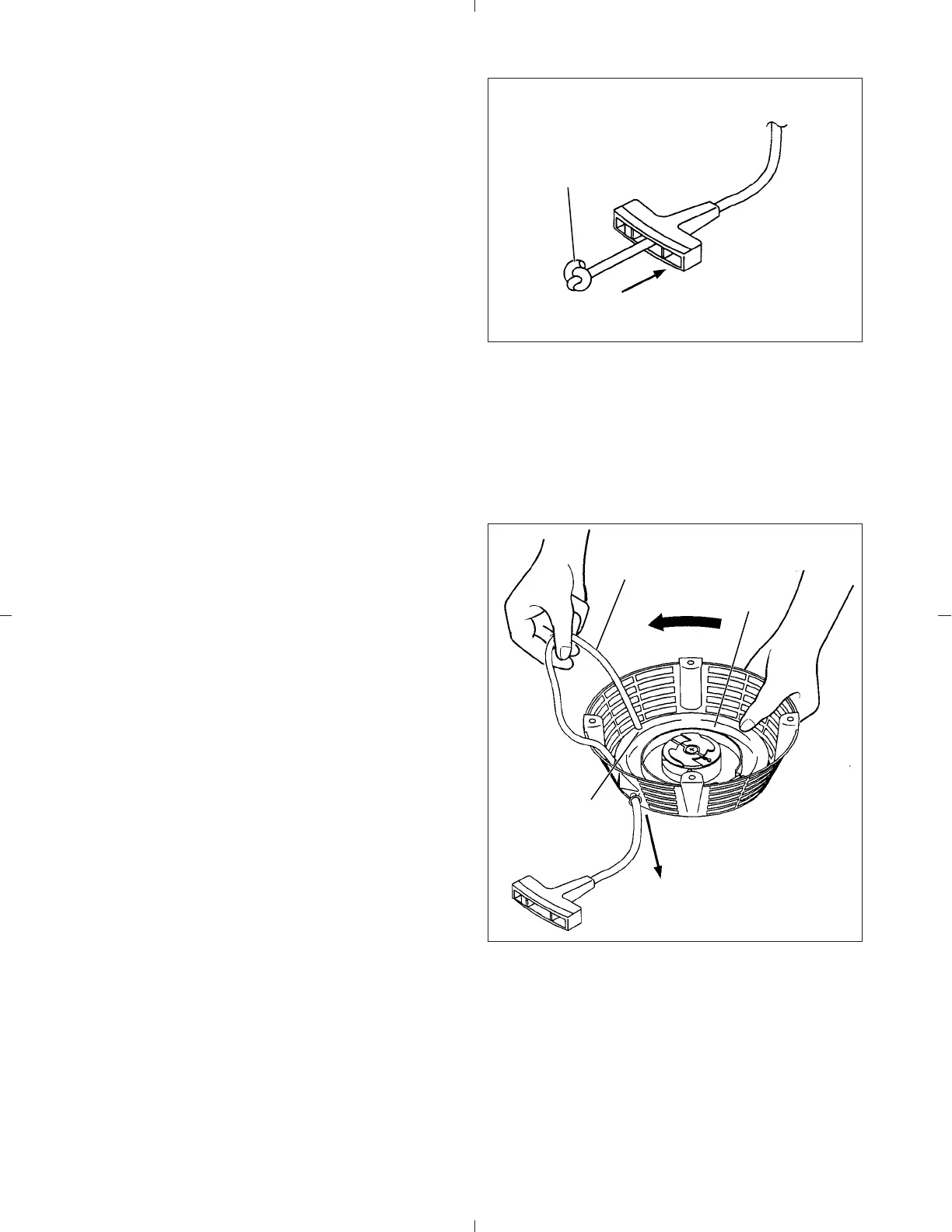

(4) Pass the starter rope through the starter knob
and tie the rope end to make a tight overhand
knot as shown in Fig. 9-6. Then put the knot
into the knob.
(5) Pass the other end of the rope from the starter
case to the reel and make a knot as illustrated
above, then put the rope end securely into the
rope housing in the reel.
(6) Wind the starter rope by 1.5 turns in the arrow
direction as shown in Fig.9-7 to let the rope
out of the reel through the notch, then install
the reel securely in the starter case so that
the hook catches inner end of the spring.
(7) Hold the starter rope as shown in the Fig.9-7
and rotate the reel 6 turns by applying the force
directly to the reel notch. (pre-winding)
Hold the reel securely to prevent it from re-
verse turn and pull the starter knob to stretch
the rope tight then release the knob slowly.
Reassemble the parts in reverse order of dis-
assembling shown in Fig. 9-3.
Tighten the center screw securely.
*This concludes
disassembling/reassembling.
Be sure to check the following to make sure of
it.
Fig. 9-6
Overhead knot
Pull the rope
REEL
REEL NOTCH
STARTER CASE
Strech rope them release it
after pre-wound
Fig. 9-7
