Change and tensionning of the belts (fig. 9)
The belts of the main motor can be tensionned as follows:
Unlock the 3 bolts which holds the motor-support bracket onto the frame and wind the
belt spanner bolt up or down in order to tension the belts.
After belt tensionning is done, lock again the 3bolts.
The drive belts are of the type: SPA 1750.

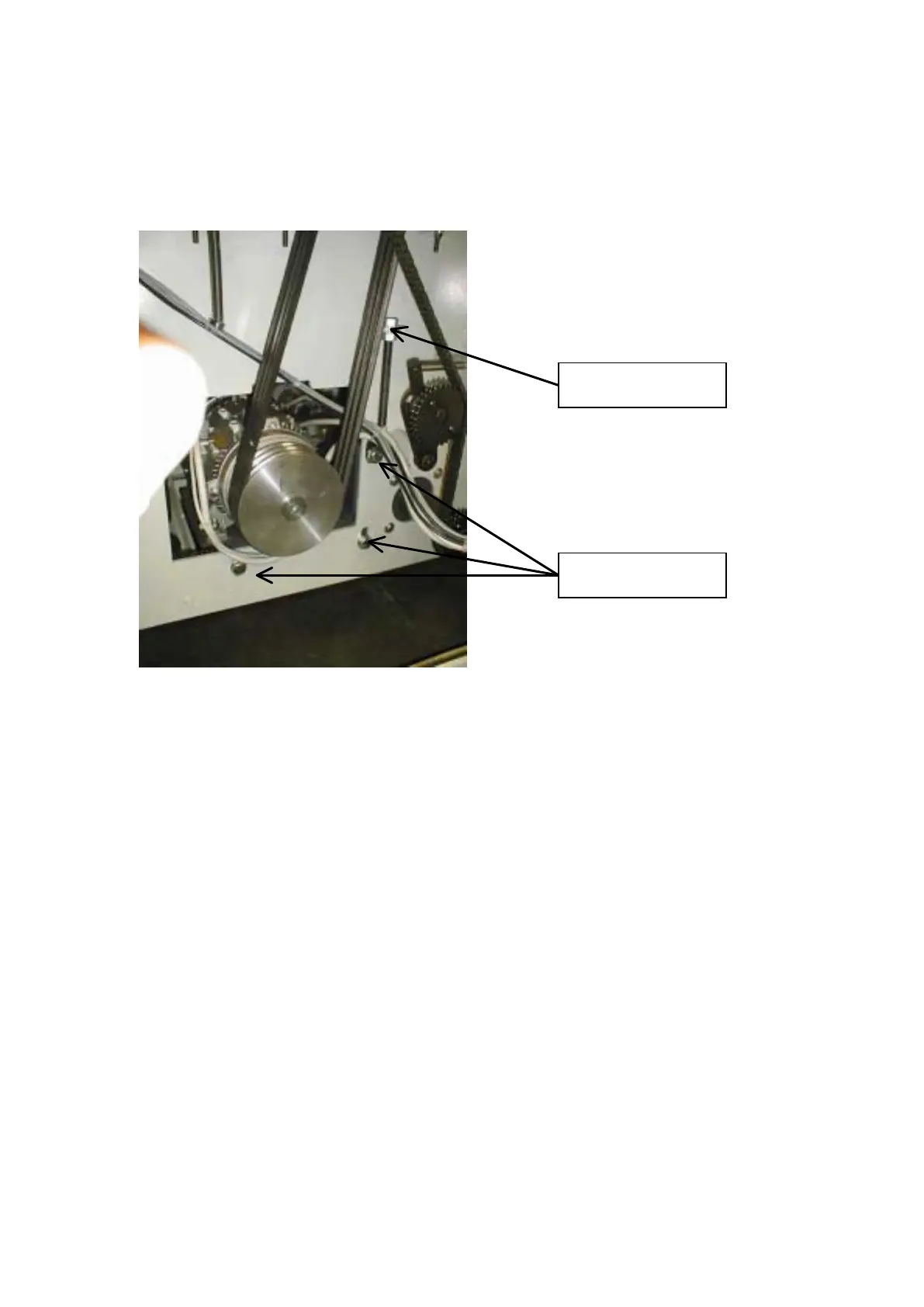

fig.9
Motor fixin
