Roboguard 22
Timer Robo 5.8 Rev 1 Information
Power: 12 – 16 volts DC
Relay: Potential free, 10A
Timer Operating Instructions
The timer is an adjustable timer from 1 second to approximately 4
minutes.
The trigger (TRG) input is negative.
TRG and POWER – are next to each other to facilitate easy triggering.
Once the timer has been triggered it will pull the relay in and light the
LED for the programmed duration.
The Relay has COM, NC and NO connections
Setting the time value
1. Make sure the program link is ON (see Fig 1)
2. Power the unit up. The Led will flash once, and start timing.
3. To end timing remove the link.
4. To finish power the unit down and up again. (With the link open)

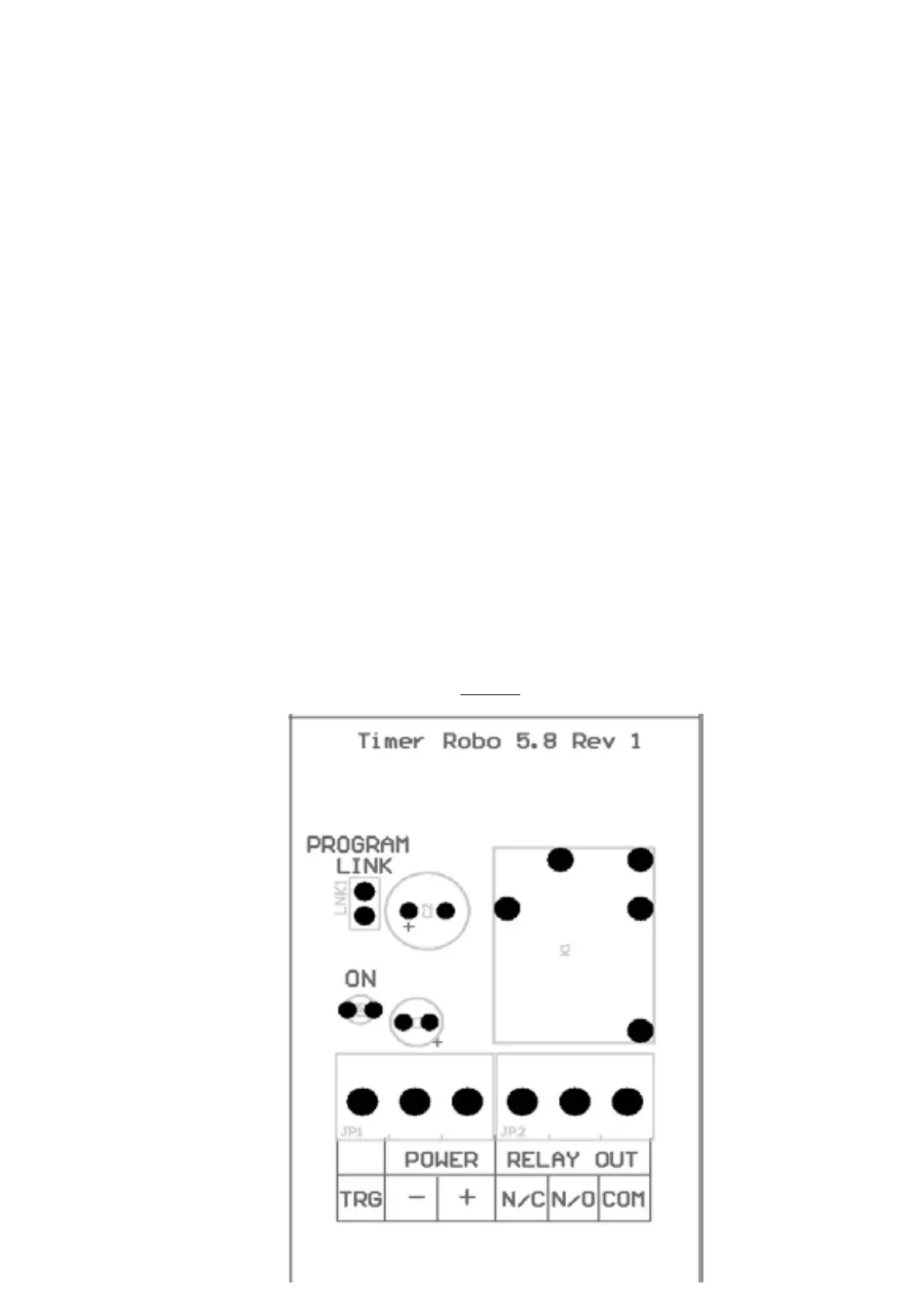

Fig 1
