4.6 Placement and connection of the Base Station

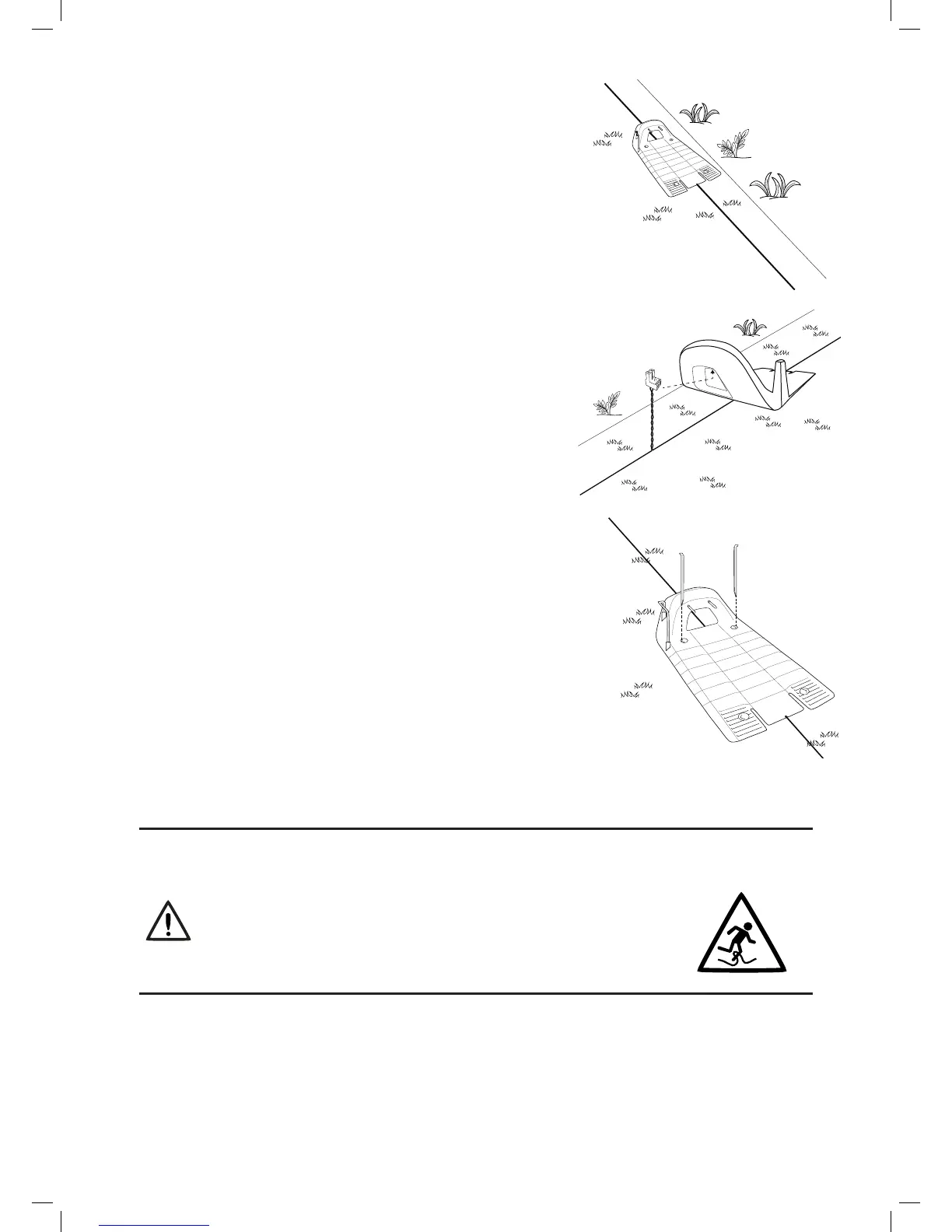

o Place the Base Station on the Perimeter Wire as shown
in the gure to the right.
o Align the center of the Base Station on the wire.
o Attach the Perimeter Wire connector to the Base Station
Head.
o After the Base Station has been positioned, insert 2
stakes into the Base Station holes as shown in the gure
to the right. Only after the Base Station position has
been tested during the One-Time Setup process (see
Section 5.2), you will be able to insert the remaining two
stakes.
4.7 Connecting the Power Box
In order to nd a proper location for the Power Box, please refer to Section 3.3.
For the Power Box installation instructions please refer to Section 4.1.2.
Laying and Fastening Extension Cable
Safety – Avoid injury!
The Extension Cable from the Power Box to the Base Station should
be securely fastened to the ground! It should never present a tripping
hazard.
The Extension Cable should cross ONLY over soft surfaces. It should
not cross over hard surfaces (e.g. Sidewalk, driveway) where it cannot
be securely fastened.
