11

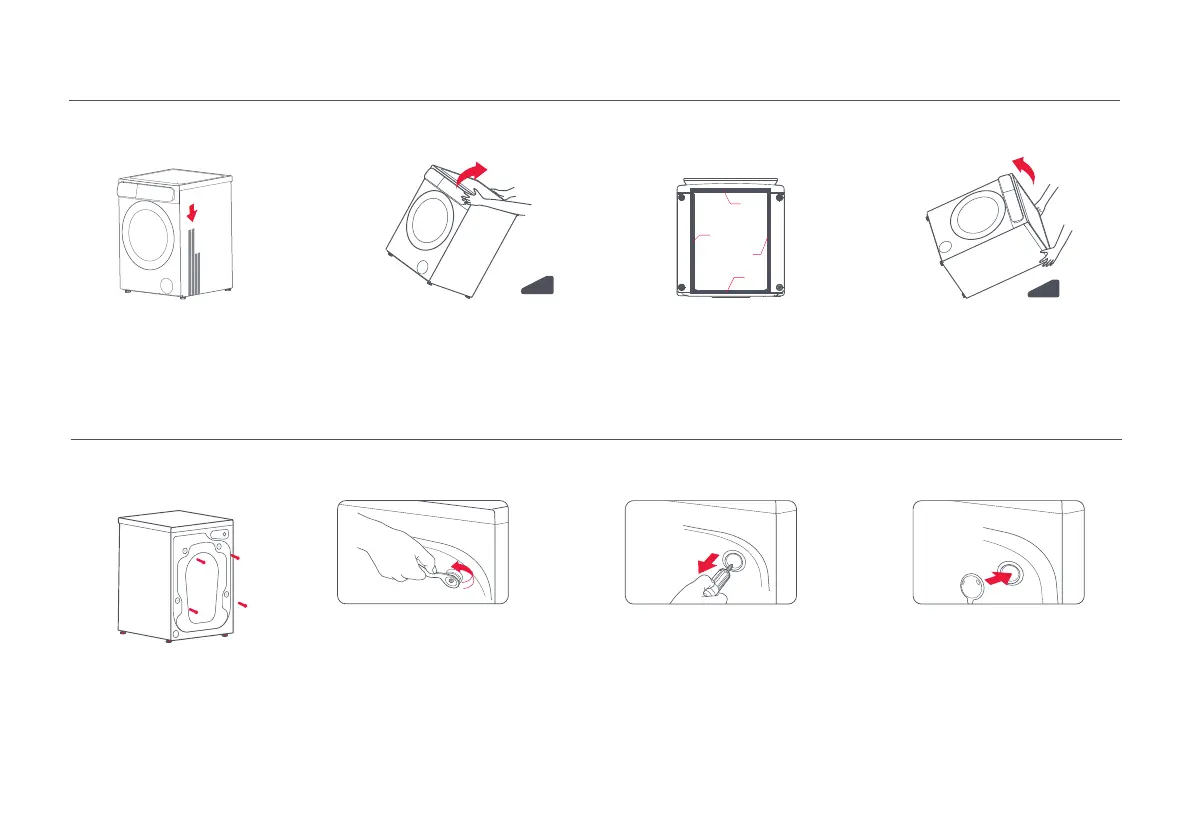

3. Remove the double-sided adhesive
protective lm from noise reduction
pads and then paste pads around
the bottom of machine (two longer
pads in position 1 and 3, two shorter
pads in position 2 and 4).
4. Finally set the machine
upright again.
Installing the noise reduction pads (optional)
Removing the transit bolts
1. Unscrew the four transit bolts
by turning them counterclock-
wise using a wrench (Which is
attached to the foam support-
ing board).
2. Pull out the bolts and
keep them properly
(for
use during transportation).
1.
Find four noise reduction
pads on foam supporting
board.
2. Carefully lay the washing ma-
chine down on its rear side with
leveling feet toward the operator.
Be careful not to break the glass
parts (control panel and door) of
the machine.
3. Cover the transit bolt holes
with transit bolt covers.
Installation
1
3
2
4
