An example of how to connect the THC controller's measurement input with
the output of the very popular Hypertherm Powermax45® - The THC comes
standard equipped with a low voltage output of 1:50 divider. This ratio is the
most commonly used division in most major brands and there will most likely be
a plug for this connection on the outside of the cutter's unit.
3.3 Potentiometer
To set height from torch to material by potentiometer. (U mode on LEDs display)

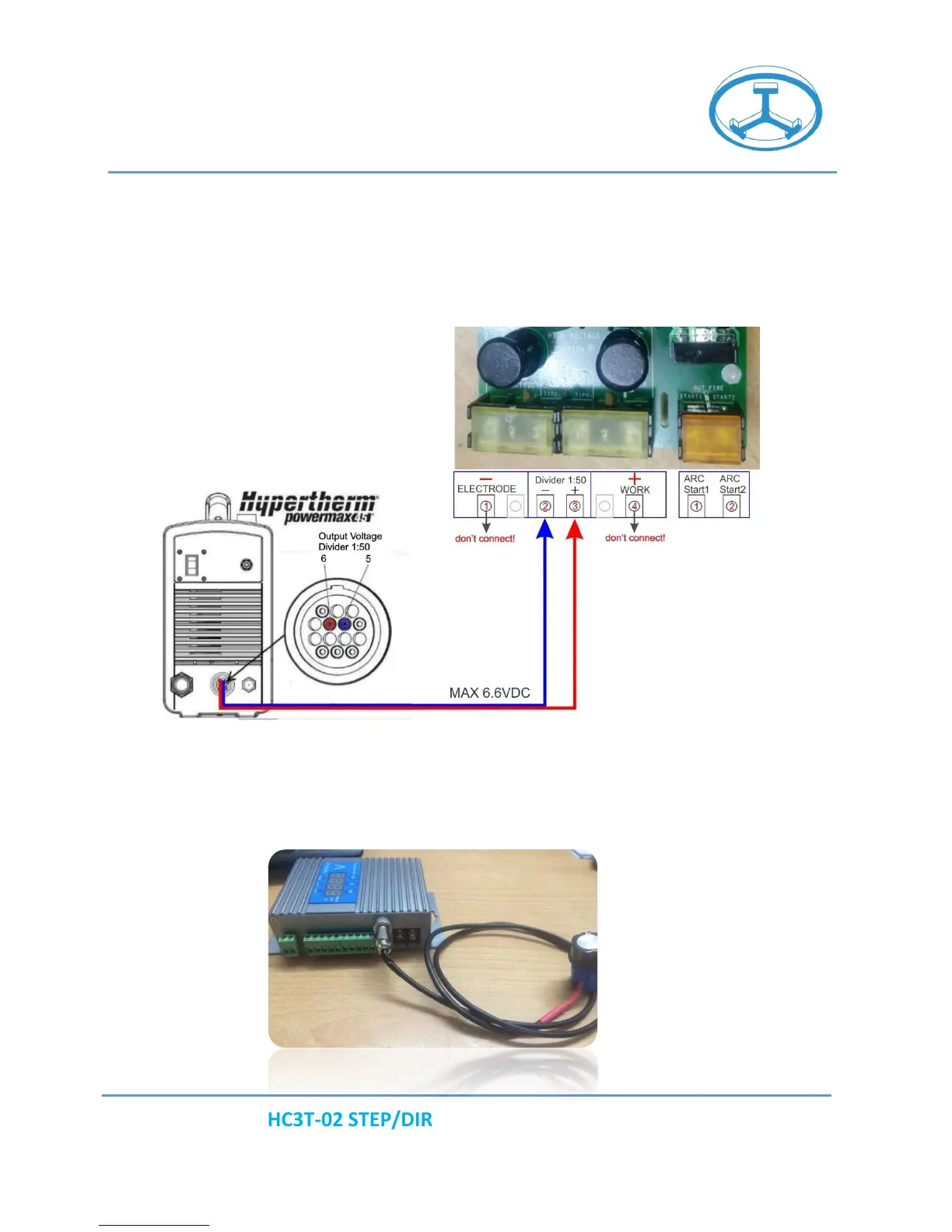

Fig9. Connect potentiometer
Fig 8. Plasma cutter with voltage divider 1:50 output
