USER MANUAL THC3T-02 STEP/DIR Page 3 | 16
1.3 Main board
The main parameters of the master board:
Parameter name
Acceptable
Supply voltage
24 -> 36V DC
Maximum arc-voltage
660VDC
Maximum input voltage of 1:50 divider
+6.6VDC
Maximum current of output relays
150mA/100VDC
Weight
300g
External Dimensions (L * W * H)
95x110x45[mm]
Table1. Main parameter
Buttons:
- Menu: To change mode
-
Up, Down: To change the
display or data in each mode.
LEDs Status:
-
Power red LED; Run yellow LED (THC ready); Height
green LED (Torch height OK);
-
LED1 display “Up”, “Down”, “Height” status of Z-axis;
- LED2 is arc-voltage value from plasma cutter.

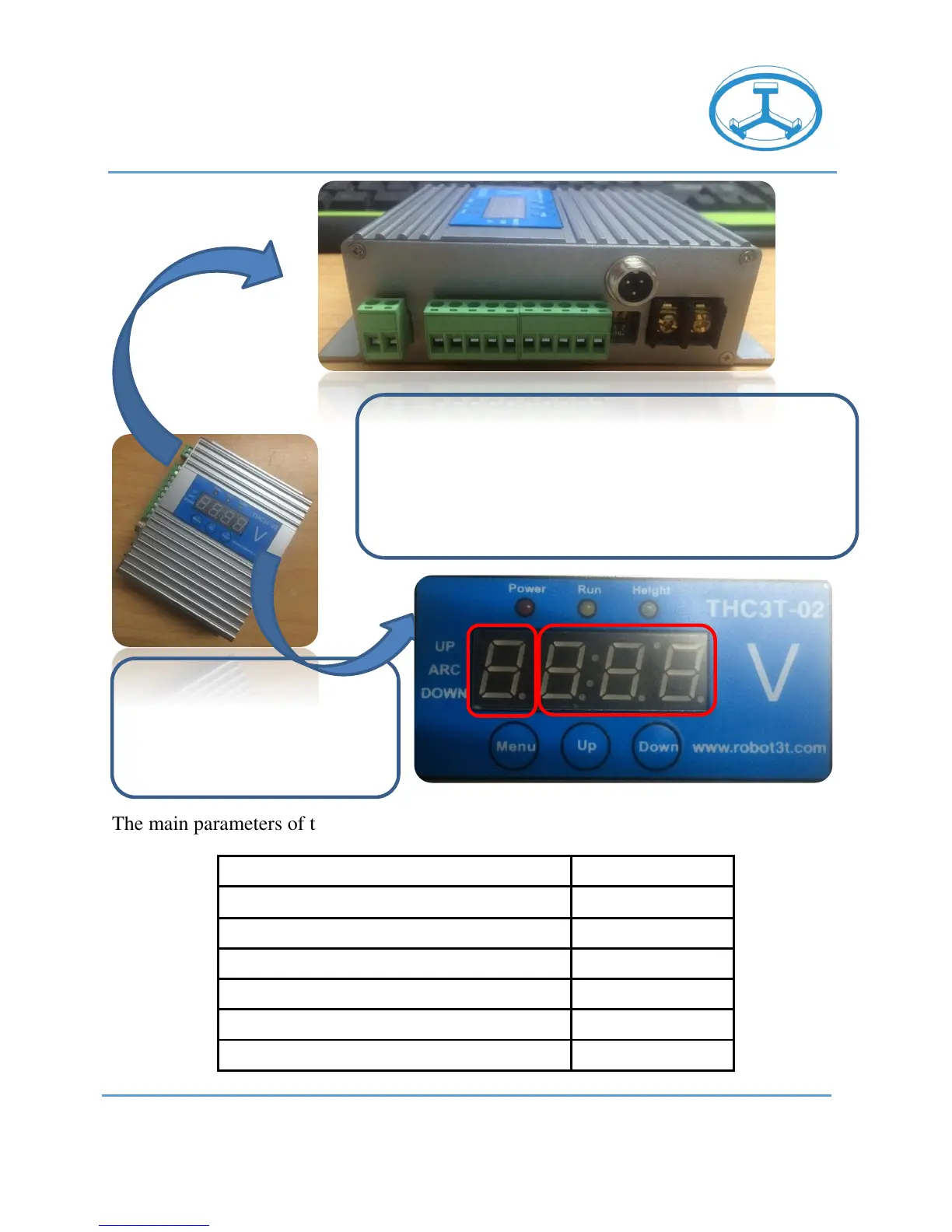

Fig3. Main board
LED2
LED
1
