3.6 Output Step/Dir to Driver-Z
4. Fast connect
 Step 1: Turn off plasma cutter.
 Step 2: Connect power supply.
- After switching power on, red LED is turn on, the THC controller's display
shows "cthc" message, a flashing voltage value is presented for 2 seconds and
then run yellow LED blink  Turn off THC power and go to Step 3.
- In case of, power LED, run LED or LED 4 digit 7 segment display not turn on
 Error.1-page.16
 Step 3: Connect input pulse/dir from breakout board.

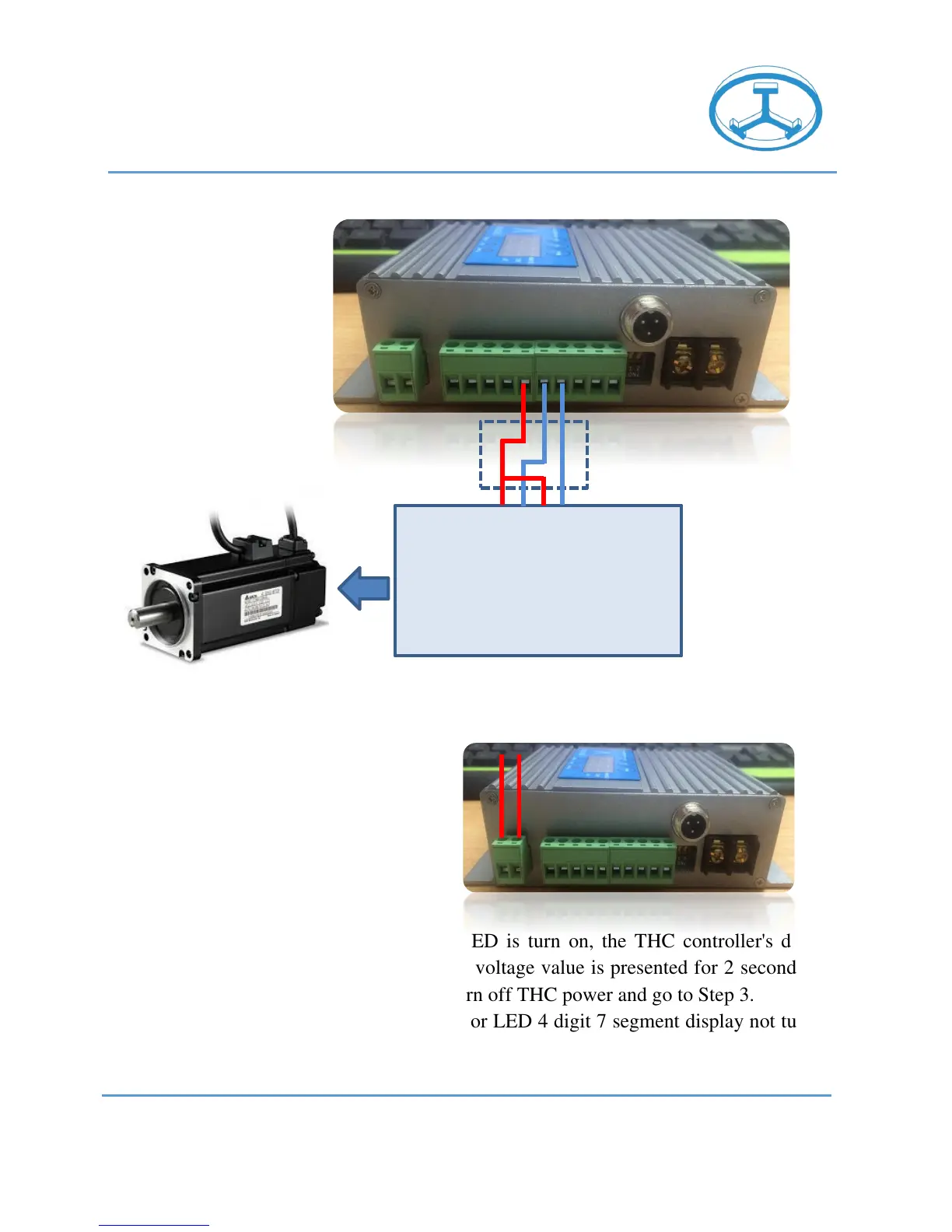

Fig12. Output Step/Dir to driver Z
DRIVER Z-AXIS
DIR-
DIR+
STEP
-
STEP+
shield
Fig13. Power Supply
24-36V DC
GND
