ROBOT3T THC3T-02 Operating Manual

ROBOT3T- 3C MACHINERY CO., LTD
6/4, 328 Cao Lo Street, Ward 4, District 8, Hochiminh City, Vietnam
Email: sales@robot3t.com
(+84) 97-490-8615
USER MANUAL THC3T-02 STEP/DIR Page 12 | 16

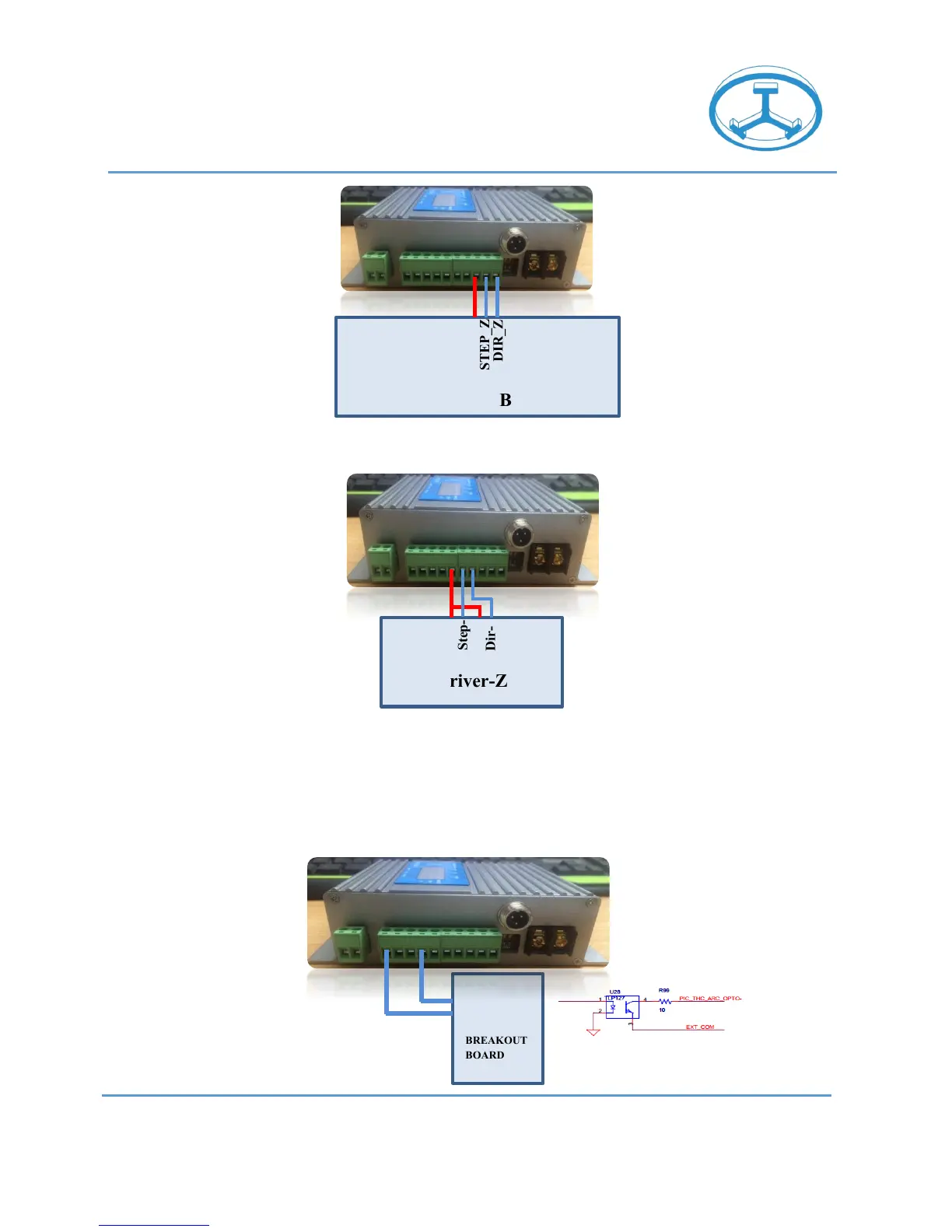

 Step 4: Connect output pulse/dir to driver Z
- Turn on THC3T-01 and wait yellow LED blink  Jog up/down on
MACH3 software to control Z-axis  OK  Turn off THC3T-02 and go
to Step5;
- In case of Z-axis can’t goes up/down  Error.2-page.16
 Step 5: Arc_Ok output.
BREAKOUT BOARD
DIR_Z
STEP_Z
+5VDC
Fig14. Connect with
breakout board
Driver-Z
Dir-
Dir+
Step-
Step+
Fig15. Connect with
driver-Z
BREAKOUT
BOARD
EXT_CO
M
ARC_O
K
INPUT
GND
Fig16. Arc_Ok output
