ROBOT3T THC3T-02 User Manual

ROBOT3T- 3C MACHINERY CO., LTD
6/4, 328 Cao Lo Street, Ward 4, District 8, Hochiminh City, Vietnam
Email: sales@robot3t.com
(+84) 97-490-8615
USER MANUAL THC3T-02 UP/DOWN Page 3 | 21
1. Device information
1.1 Introduction
Compact THC3T-02 with up/down output uses arc voltage to maintain a consistent
distance from the plate while the torch is cutting. This allows the system to maintain proper
torch height regardless of variations in the material, of flatness of the cutting bed.

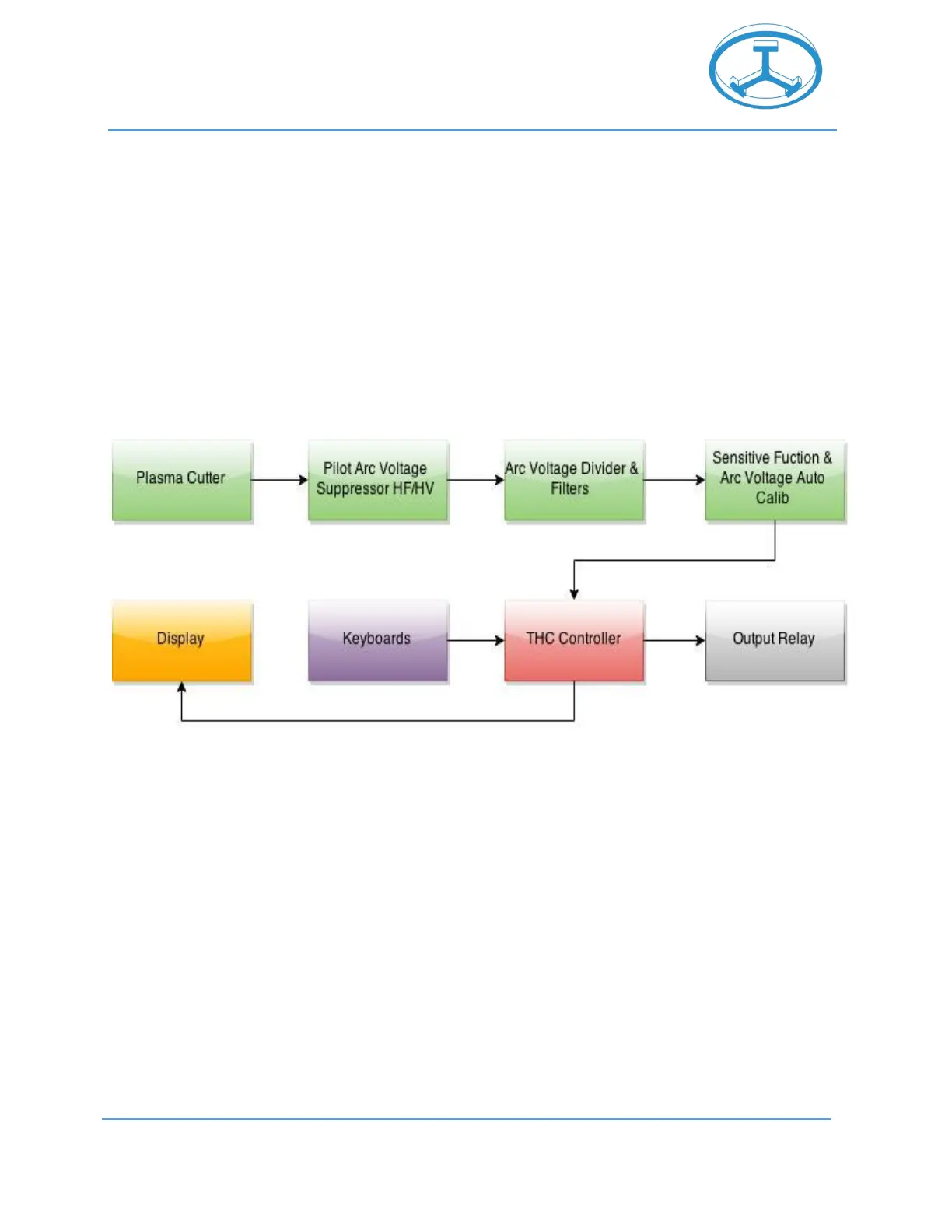

Simplified block diagram:
The THC3T-02 package includes:
- 1 main board;
- 1 divider board;
- 1 potentiometer + cables.
Fig1. Block diagram

ROBOT3T THC3T-02 Specifications

General

Brand	ROBOT3T
Model	THC3T-02
Category	Controller
Language	English
