USER MANUAL THC3T-02 UP/DOWN Page 4 | 21
1.2 Specifications
- Using the potentiometer to set height’s torch
- Voltage divider and noise to obtain the raw signal from the plasma cutting
- Using signal processing an algorithms to derive the voltage stability of the plasma
- Apply an algorithm to support smooth motion.
- Auto calib the arc voltage with any plasma cutter
- Auto detect ARC OK

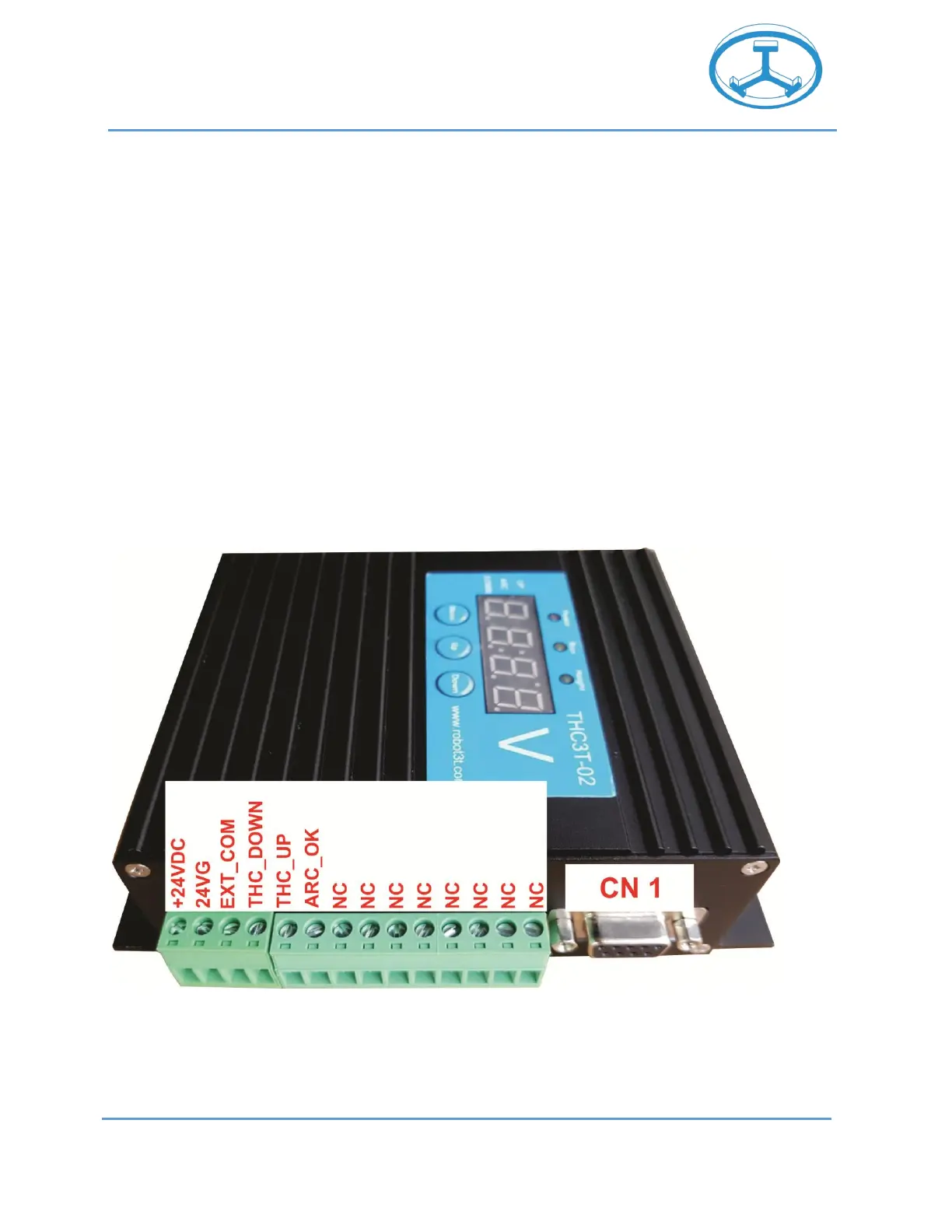

- Easy to connection, just three outputs: UP, DOWN, ARC OK
- Integrated voltage divider 1:50.
- This version is specify to integrated with Mach3 and LinuxCNC software.
Fig2. Connection diagram
