USER MANUAL THC3T-02 UP/DOWN Page 9 | 21
While being a universal THC, accepting full raw arc voltage for most any
plasma cutter on the market, an exciting new standard feature of this unit is the
addition of a 1:50 divider for an extremely fast, simple installation on most major
brands. There will most likely be a direct connection for this on the outside of the
plasma cutter's unit. Please refer to your plasma cutter owner's manual.
An example of how to connect the THC controller's measurement input with
the output of the very popular Hypertherm Powermax45® - The THC comes

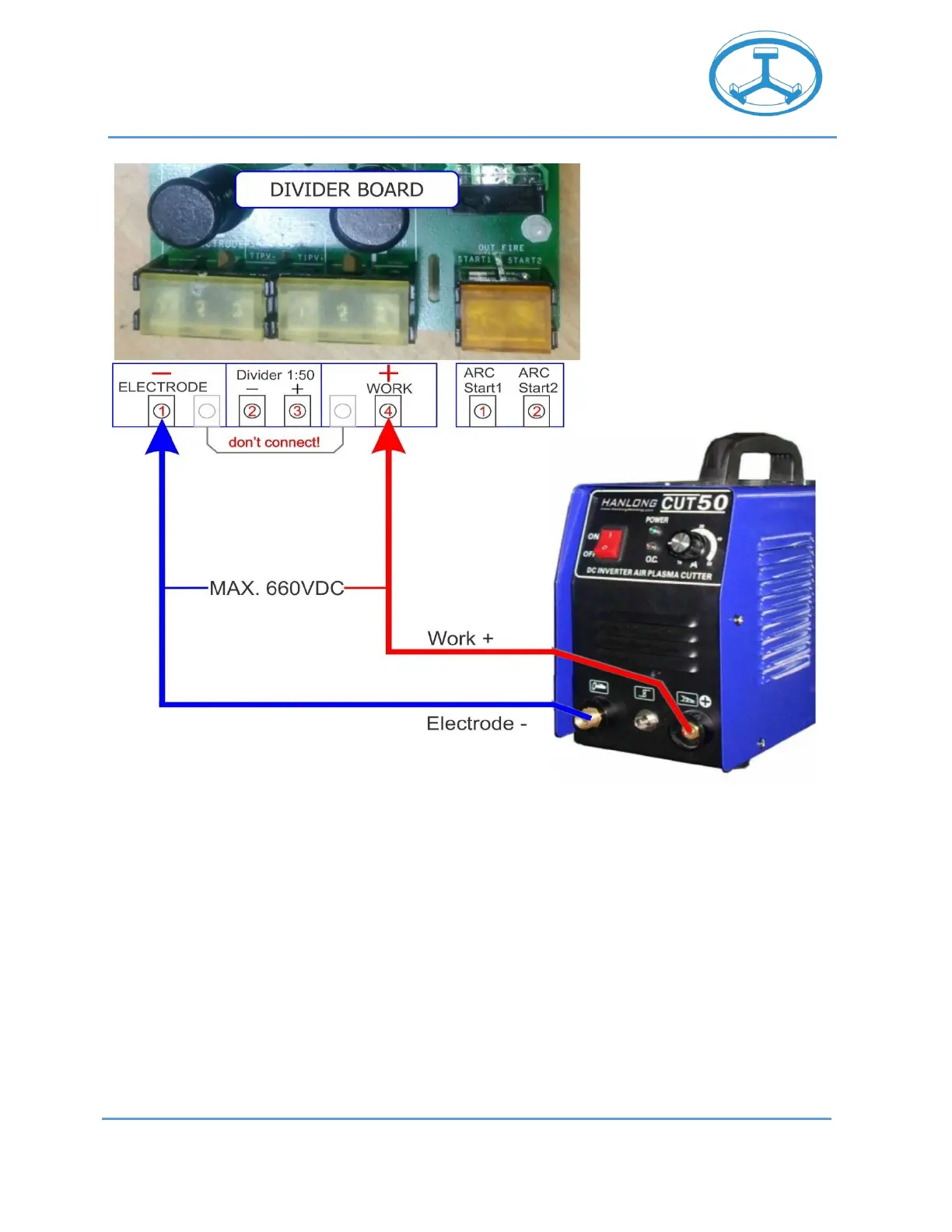

Fig 7: Connecting the plasma source with DIVIDER
