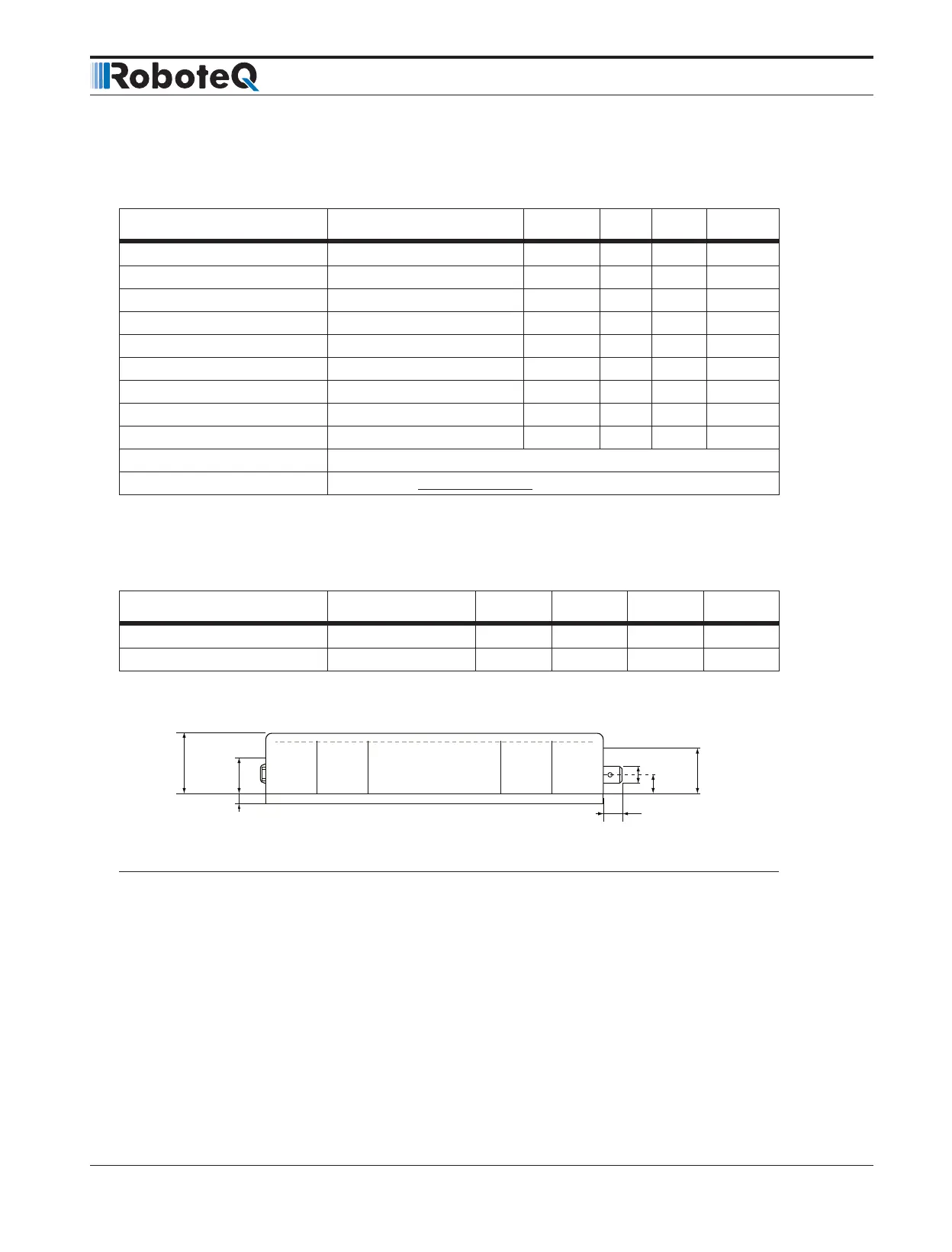

18 FBL2360 Brushless DC Motor Controller Datasheet Version 1.3 August 29, 2019
STO Specifications
TABLE 13.
Parameter Measure Point Min Typ Max Units
STO Input High Level Ground to STO input pin 6 30 (1) Volts
STO Input Low Level Ground to STO input pin 0 1 Volts
STO Response Time Input to output change 5 msec
STO Operating temperature -20 55 ºC
STO Storage temperature -20 70 ºC
Humidity 5 95 %
IP degree IP40
Operating Altitude 2000 m
Cable Length 2 m
EMC Immunity According to IEC 61800-3 and IEC 61800-5-2 Annex E
CE Declaration Available at www.roboteq.com
Mechanical Specifications
TABLE 14.
Parameter Measure Point Min Typ Max Units
Weight Board 500 (1) g (lbs)
Power Connectors width Terminal tab 0.25 Inches
0.7" (17.8mm)
0.16" (4.0mm)
0.325" (8.3 mm)
0.25"
(6.3 mm)
0.3"
(7.6 mm)
0.57"
(14.5mm)
0.98"
(25mm)
FIGURE 14. FBL2360 side view and dimensions
