2.7 PD Connection (Optional)

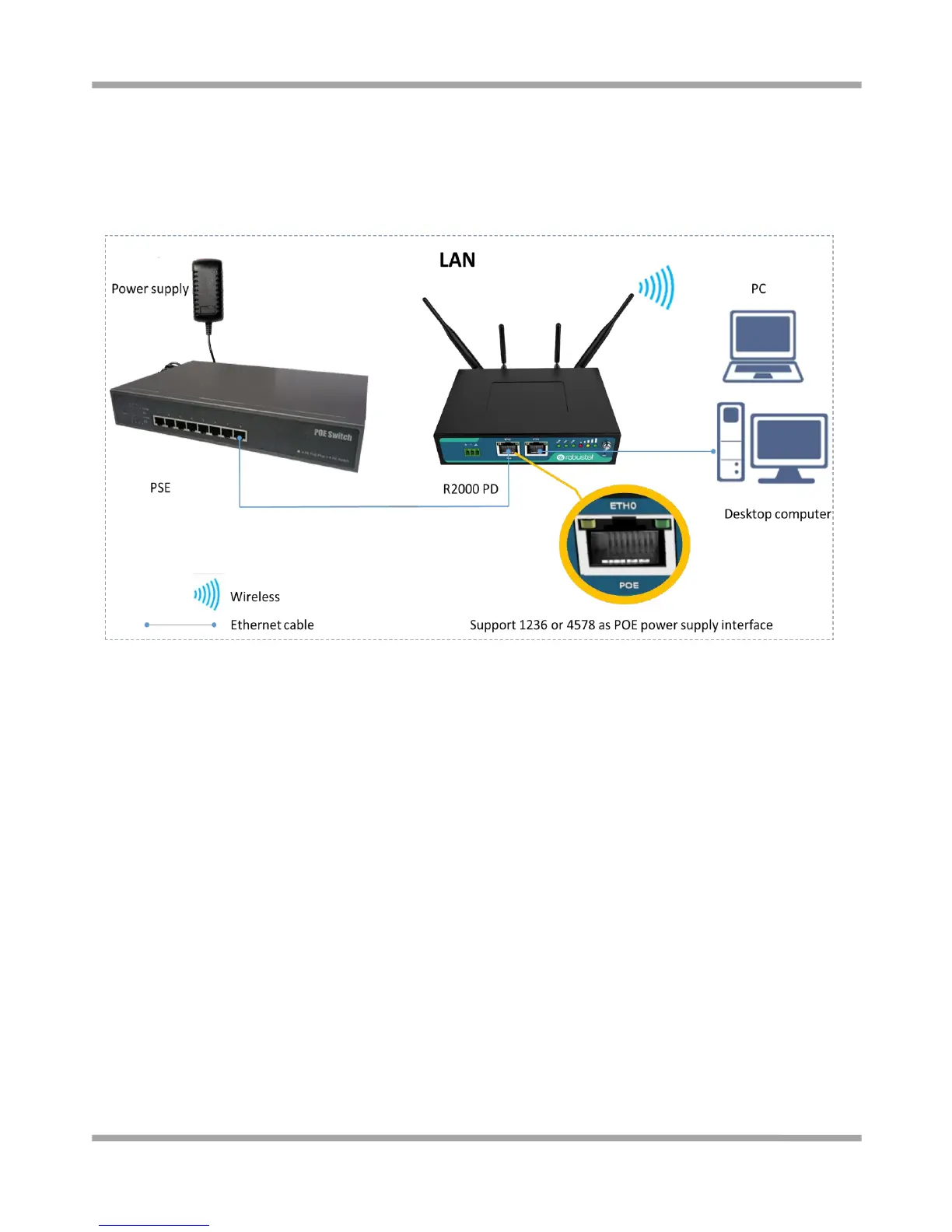

If you want to power on R2000 by Ethernet, please refer to the following topology and connect R2000 to PSE (Power
Sourcing Equipment).
POE power input voltage range is 48~57 VDC.
